Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:-
1.Structure of Solar Module Description
A solar cell module of the present invention was made to improve adhesion between electrodes, which is formed with thermosetting resin containing silver paste, of a solar cell element and connecting tabs coated with lead (Pb) free solder. To achieve this purpose, the solar cell module is comprised of a front surface member, a rear surface protective member, a plurality of solar cell elements provided between the front surface member and the rear surface protective member, and connecting tabs for electrically connecting the solar cell elements to each other through electrodes with the use of lead free solder. The electrodes of the solar cell elements are made of silver paste containing thermosetting resin and silver powder. The thermosetting resin contains epoxy resin at volume ratio of 70% or more having a glass transition rate of 80° C. to 200° C. measured by a TMA method. The connecting tabs coated with lead free solder are soldered to the electrodes.
2.Main Features of the Solar Module
Solar PV module is comprised of some solar cells which are connected in serial with high efficiency and enhanced reliability. The solar cells are laminated between sheets of ethylene vinyl acetate (EVA) and high-clarity low-iron tempered glass.
Solar panel pv module manufacturer
High efficiency: mono panel 18% poly panel 17%
30W-300W mono solar panel poly solar module
Mono-crystalline Solar Panel / Poly-crystalline Solar Panel
We Are Manufacturer
We manufacture mono solar panel and poly solar panel from 30W-300W
We produce Solar PV module from solar cell to solar module
We are capable to produce 2MW solar panels per month
Warranty
5 years material and workmanship warranty
10 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output

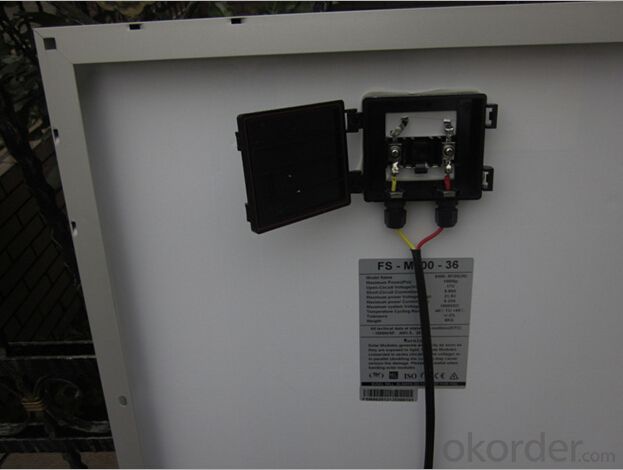

3.Solar Module Images
4.Solar Module Specification
Packaging & Delivery
| Packaging Detail: | Standard export package |
| Delivery Detail: | within 15 days after receive the deposite |
75W/80W/85W/90W/100W mono solar panel
1)Power Range:3W~300W
2)Solar cell's efficiency above 16%
3)A grade.
4)Fast delivery.
75W/80W/85W/90W/100W mono solar panel
with CE, RoHS, TUV certificate
| Electrical Characteristics | ||||||
| Type | ZM-75M | ZM-80M | ZM-85M | ZM-90M | ZM-95M | ZM-100M |
| Maximum power (Wp) | 75Wp | 80Wp | 85Wp | 90Wp | 95Wp | 100Wp |
| Maximum power voltage (V) | 18.00 | 18.00 | 18.00 | 18.72 | 19.00 | 19.00 |
| Maximum power current (A) | 4.16 | 4.44 | 4.72 | 4.81 | 5.00 | 5.26 |
| Open circuit voltage (V) | 21.60 | 21.60 | 21.60 | 22.46 | 22.80 | 22.80 |
| Short circuit current (A) | 4.58 | 4.88 | 5.20 | 5.28 | 5.40 | 5.68 |
| Cell Efficiency (%) | 16.25% | 16.50% | 16.75% | 17.00% | 17.50% | 17.75% |
| FF (%) | ≥74% | |||||
| Maximum system voltage (V) | 715V | |||||
| Temperature Range | `-40 to +85 | |||||
| Power tolerance (%) | ±5% | |||||
| Standard Test Conditions | 1000W/m2 , AM1.5 , 25C | |||||
| Mechanical Characteristics | ||||||
| Solar cell | Mono | Mono | Mono | Mono | Mono | Mono |
| Number of cells (Pcs) | 36(4*9) / 72(4*18) | |||||
| Size of module (mm) | 1196*534*35mm | |||||
| Weight per piece (kg) | 8 | |||||
| Front Glass | 3.2 mm tempered glass | |||||
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) | |||||
| Allowable Hail Load | steel ball fall down from 1m height | |||||
| Frame | Anodized aluminium alloy | |||||
| Junction Box Type | IP65 rated | |||||
| Temperature coefficients | ||||||
| Nominal Operating Cell Temperature | 45±2ºC | |||||
| Temperature coefficients of Voc (%) | β -2.2mV/ | |||||
| Temperature coefficients of Pm (%) | γ -0.55%/ | |||||
| Temperature coefficients of Im (%) | α 0.03%/ | |||||
| Temperature coefficients of Vm (%) | β -2.2mV/ | |||||
5.FAQ of Solar Module
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
