Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10000 watt
Supply Capability:1000000 watt/month
Product Description

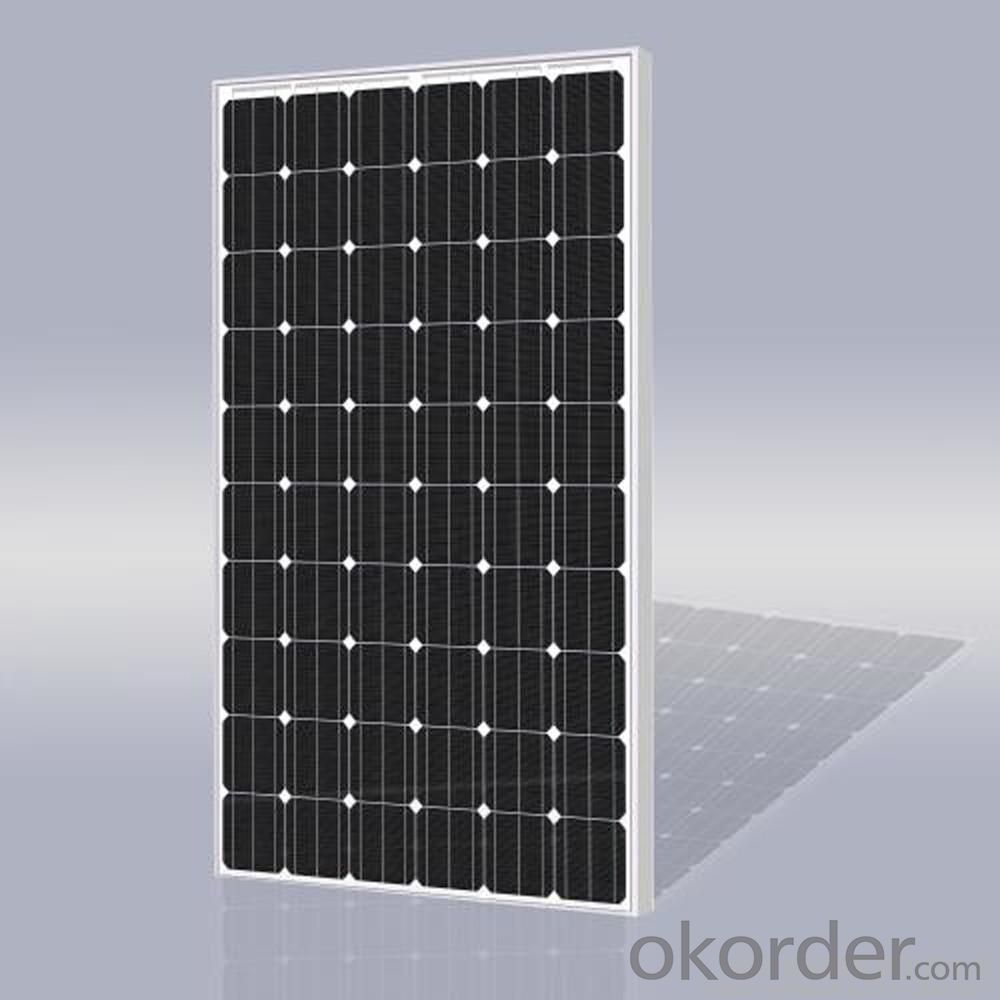

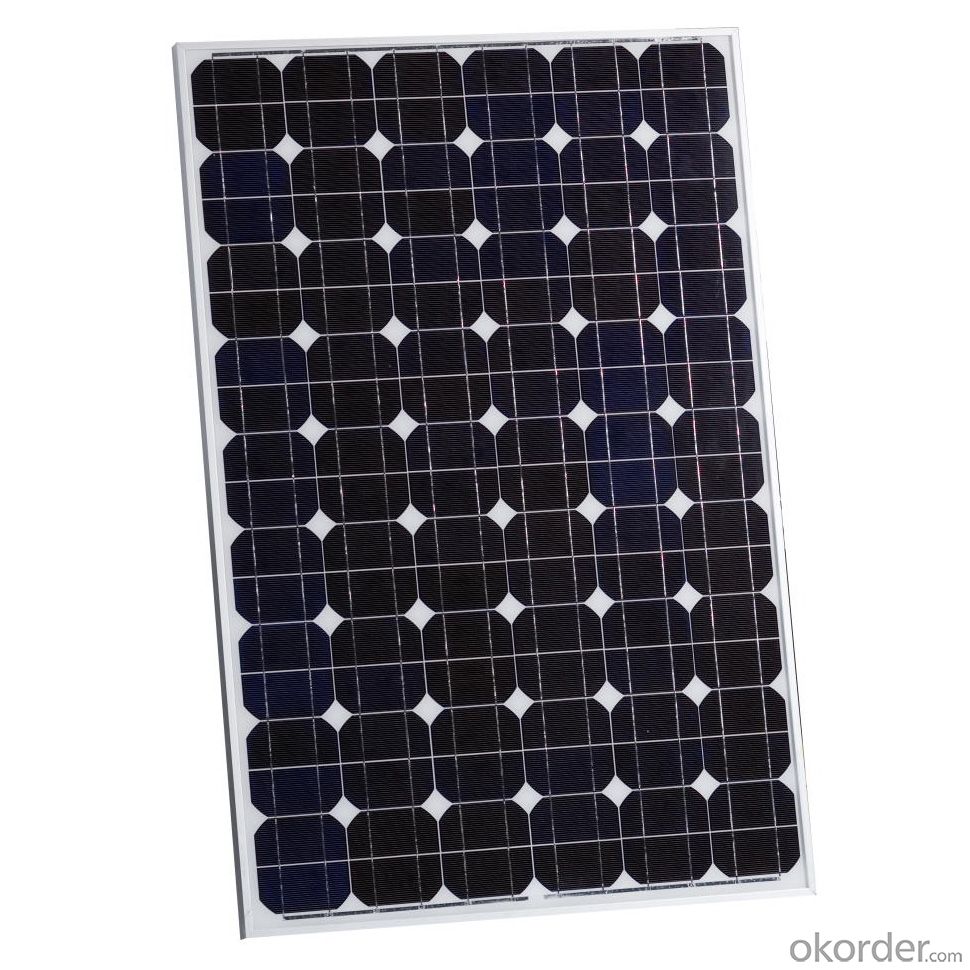

300W Monocrystalline Solar Panel
Electrical Characteristics
| Optimum Operating Voltage (Vmp) | 37V |
| Optimum Operating Current (Imp) | 8A |
| Open Circuit Voltage (Voc) | 44.6V |
| Short Circuit Current (Isc) | 8.5A |
| Module Efficiency | >=17.6% |
| Operating Module Temperature | -40 ºC ~+85 ºC |
| Maximum System Voltage | 1000V |
| Power Tolerance 0/+5 W | +/-3% |
Mechanical Characteristics
| Solar Cell | Monocrystalline |
| No. of Cells | 72(6*12) |
| Dimensions | 1950*992*45mm |
| Weight | 23kgs |
| Front Glass | 3.2mm high transmission, Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| Junction Box | 4mm2, length 1000MM,TUV |
Temperature Characteristics
| Temperature Coefficient of Pmax | -0.47/ °C |
| Temperature Coefficient of Voc | -0.38/ °C |
| Temperature Coefficient of Isc | + 0.1/ °C |
Warranty
| 12-year product warranty |
| 25-year linear performance |
Packaging
2pcs/carton, 180pcs/20GP or custom
Features:
1. This monocrystalline 72-cell 270-310W solar module has a high performance efficiency up to 18%.
2. Long Service Life can reach more than 25 years under maintenance according to stipulation.
3. Reliable quality leads to a better sustainability even in harsh environment like desert,farm and coastline
4. High Transmission, Low Iron Tempered Glass adopted.
5. Advanced Cell Encapsulation.
6. Yunkai modules are proven for the reliability and superior field performance due to high-standard raw materials used, stringent quality control process and advanced manufacturing technologies.
Application:
1. Solar power station, field operation some huge engineer construction;
2. Living house and home building;
3. Office building, factory and warehouse;
4. other industrial and commercial applications.
