Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:10 unit/month
Product Description:

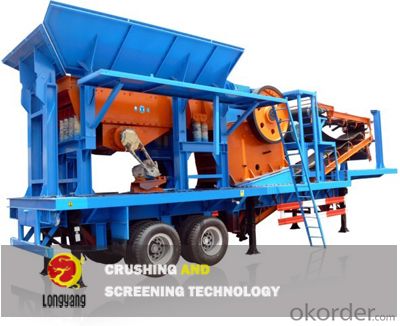

The tire mobile crushing plant can choose jaw crusher, impact crusher, cone crusher or vertical shaft impact crusher, etc as it’s mainly frame, the raw material is delivered into the crusher evenly by feeder and then to be crushed, the crusher will constitute a closed system with round vibrating screen, as to crush the material circularly, the output material with size meet the requirement will be delivered out by the belt conveyors. It’s widely used in mining ore crushing, construction waste recycling, construction aggregate producing, high way, railway, roads and bridges construction, etc.
Main Product Features:
1. Can be equipped with magnetic separator, which is suitable for recycle the city construction waste.
2. Can be equipped with independent generator sets.
3. Advance technics, simple operation and easy maintenance.
Economy advantages
1.To save about 90 days preparatory period.
2.To save the high cost on foundation, installation of steel frame, testing and etc.
Product Specifications:
| Model | MC69 | MC6510 | Model | MC1214V | MC1000 | MC560 | |
| Transport Length(mm) | 12800 | 12150 | Transport Length(mm) | 12200 | 12200 | 17500 | |
| Transport Width(mm) | 3050 | 2900 | Transport Width(mm) | 2800 | 2800 | 3100 | |
| Transport Height(mm) | 4300 | 4100 | Transport Height(mm) | 4490 | 4490 | 4500 | |
| Maximum Length (mm) | 12800 | 12150 | Maximum Length (mm) | 12200 | 12200 | 14500 | |
| Maximum Width (mm) | 4100 | 3100 | Maximum Width (mm) | 4400 | 4400 | 4600 | |
| Maximum Height (mm) | 4300 | 4950 | Maximum Height (mm) | 6070 | 6070 | 8080 | |
| Weight (t) | 36 | 45 | Weight (t) | 38 | 35 | 45 | |
| Tire Configuration | Dual-axis | Triaxial | Tire Configuration | Dual-axis | Dual-axis | Triaxial | |
| Crusher Model | PE600×900 | LE650*1000 | Crusher Model | PF-1214V | PYS-B1000 | DY-560 | |
| Max Feed (mm) | 500 | 520 | Max Feed (mm) | 350 | 160 | 70 | |
| Discharge Opening Range (mm) | 65~160 | 70-200 | Capacity (t/h) | 50-160 | 50-215 | 200 | |
| Capacity (t/h) | 50~120 | 120~320 | Belt Conveyor for Feeding | B800×18M | B800×18M | B800×27M | |
| Vibrating Feeder | ZSW-380×96 | ZSW-490*110 | Belt Conveyor for Re-crushing Material | B650×16M | B650×16M | B650×18M | |
| Main Belt Conveyer | B800×8M | B1000*7M | |||||
| Side-opening Belt Conveyer (Optional) | B500×2.5M | ------ | Discharging Belt Conveyor | B500×16M | B500×16M | B1000×8.5M | |
| Iron Separator (Optional) | RCYD(C)-8 | RCYD(C)-10 | Vibrating Screen | 3YA1848 | 3YA1848 | 2YK2160 |
| Three Segment Wheeled Mobile Crushing & Screening Plant | Capacity (t/h) | 100~180 | |||||
| Jaw Crusher | Cone Crusher | Fine Jaw Crusher | Vibrating Screen | ||||
| Unit Model | Host Model | Unit Model | Host Model | Unit Model | Host Model | Unit Model | Host Model |
| MC7510 | PE-750×1060 | MC1300 | PYS-B1300 | MC1300 | PEX-250×1000 | MC2160 | 3YK2160 |
FAQ:
Q1: How to confirm that your crushers could be used in our site?
A1: We have been providing crushers for more than ten years, and cooperating with the agent of the world famous brand, possess near every kind of bend in the market. What is more, we can produce as the customers’ request with drawing provided.
Q2: How do we guarantee the quality of our products?
A2: We have established an advanced quality management system which conducts strict quality tests at every step, from raw materials to the final product.
Q3: How soon can we receive the product after purchase?
A3: Within three days of placing an order, we will begin production. The specific shipping date is dependent upon international and government factors, but is typically 15-30 workdays.
Q4: If we can produce some crushers according to customers request?
A4: Yes, we can produce crushers according to the difference country situations to make it suitable to the market and customers. We have very professional technical team to make the design.
Q5: How to make a quick resolution for after service?
A5: OKorder and our manufacture both have overseas branches all-around of world, IF needed, the seller shall dispatch 2 engineers to the buyer's site for supervision of training. The buyer shall make available of necessary facilities & skilled personnel at site for training.
