Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:200 set
Supply Capability:5000 set/month
Hesco Barrier Security Wall /Hesco Bastion / Hesco Barrier welded mesh gabion.
------20-year history factory direct sales, save money!
------Experienced Factory in manufacturing hesco.
------U. S Military Approved Quality.
------Short shipping time.
------Supply to Lebanon, Afghanistan, Pakistan.
1. Introduction:
Hesco bastion ( steel weld mesh gabion) are good solution for emergency

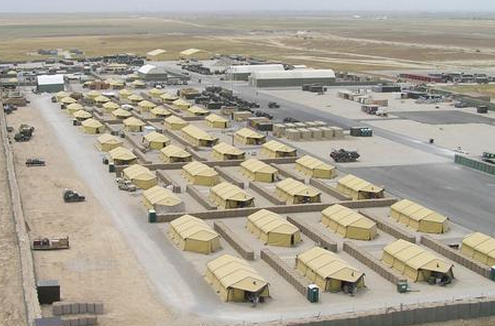

Flood control, shelter house, military defence wall.
2. Material:

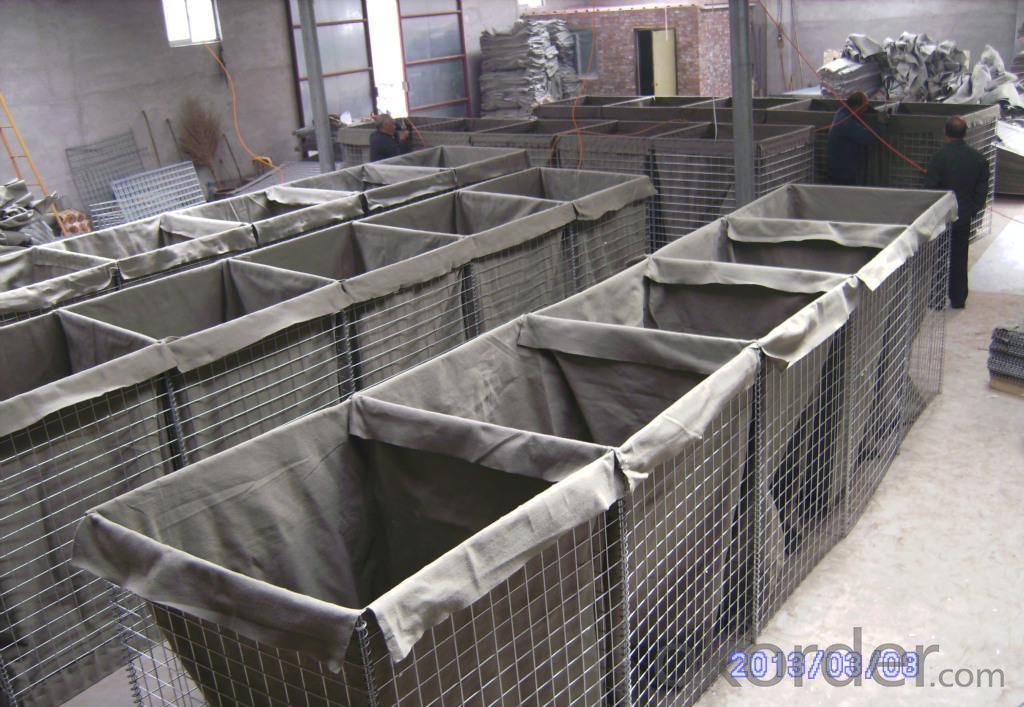

It is made of galvanized weldedmesh, spring with other fittings, can be filled
With sand, earth, cement, stone. Can be used in separate cell or some cells joint
Together.
3. Finish: Electro galvanized, hot dipped galvanized, galfan coated.
4. Speficications
1) wire diameter: 3, 4, 5mm
2) hole: 2''x2'', 3''x3'', 4''x4''.
3) hesco size: 0.61x0.61m, 1x1m, 2.13x2.21m, other size can be produced on
Request.
4) geotextile: In non-woven geotextile, color can be white, beige-sand colour.
5. Features:
A) Easy to handle and install.
B) High Tensile and anti-Impact capability, strong structure.
C) Long Life. Durable.
Unit type | Height | Width | Length | Internal cells | Color |
Military type 1G/1S | 1.37m | 1.06m | 10m | 9 | Grey/sand |
Military type 2G/2S | 0.61m | 0.61m | 1.22m | 2 | Grey/sand |
Military type 1G/1S | 1.0m | 1.0m | 10m | 10 | Grey/sand |
Military type 1G/1S | 1.0m | 1.5m | 10m | 6 | Grey/sand |
Military type 1G/1S | 0.61m | 0.51m | 3.05m | 5 | Grey/sand |
Military type 1G/1S | 0.61m | 0.61m | 6.1m | 10 | Grey/sand |
Military type 1G/1S | 2.21m | 2.13m | 0.52m | 4 | Grey/sand |
Military type 1G/1S | 1.37m | 1.22m | 10m | 9 | Grey/sand |
Military type 1G/1S | 1.0m | 0.76m | 0.14m | 9 | Grey/sand |
Military type 1G/1S | 2.13m | 1.52m | 7.62m | 5 | Grey/sand |
Mesh Wire diameter | 5mm or 4mm |
Mesh hole size | 3"x3" |
Mesh surface treatment | Electrol galvanized or hot dip galvanized |
Geotextile | Heavy non-woven cloth 2.5mm, 250g/sqm |
Packing
Wrapped with shrink film or packed in pallet
