Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:0 watt
Supply Capability:10000 watt/month
Description of Micro Inverter Solar Inverter
Solar ac power system consists of solar panels, charge controllers, inverter and battery; Solar energy does not include inverter dc power system. Inverter is a kind of power conversion device, inverter by incentives can be divided into self-excited oscillation inverter and separately excited oscillation inverter.
Features of Micro Inverter Solar Inverter
Standard 10 years warranty, 5-15 years optional
High effiency (Max.96.7%)
AC/DC high frequency isolation technology
Maximum connection of 14 Micro-inverters
Adopted electric power carrier communication
Easy design,Plug-and-play chain installation
Remote monitor to each module
Reduce shading issues, improve the generating Reduce shading issues,improve the generating
integrated ENS function, complied with safety standard, can be connected to grid directly
Advantages of Micro Inverter Solar Inverter
Longer life cycle
Plug and play
Free monitoring through our webportal
Very lower internal temperature
Easy transportation and installation
Faster CPU speed
Adjustable active and reactive power
Real-time data readable at night
PID effect protect
Technical Data of Micro Inverter Solar Inverter
Type | Omniksol-M600 |
Input(DC) | |
Recommended PV Module Power | 2x(200-310)W |
Max,DC Voltage | 60V |
Operating Voltage Range | 16-60V |
MPPT Voltage Range at Nominal Power | 27-48V |
Max, Input Current | 10.0Ax2 |
Max, DC Short Cicuit Current | 14A |
Output(AC) | |
Nominal AC Power | 500W |
| Nominal AC Current | 2.17A(230V),2.08(240V),2.4A(208V) |
Nominal Grid Voltage | 230V/240V/208V |
Nominal Grid Frequency | 50Hz/60Hz |
Grid Voltage Range* | 230V/200-270V,240V/211-264V.208V/183-229V |
Grid Frequency Range* | 45.5-54.5Hz/57-62.5Hz |
Power Factor | ＞0.99 |
Total Harmonic Distortion(THD) | ＜3% |
Night time Power Consumption | ＜50mW |
Maximum Units Per Branch | 7 |
Efficiency | |
Max,Efficiency | 96.7% |
CEC Weighted Efficiency | 96.5% |
MPPT Efficiency | 99.5% |
Reference Standard | |
Safety Standard | EN 62109, AS/NZS 3100 |
EMC Standard | EN 6100-6-1, EN 6100-6-2, EN 6100-6-3 EN 6100-6-4, EN 6100-3-2, EN 6100-3-3 |
Grid Standard | VDE-AR-N4105. VDE-0126-1-1,G83/1,EN 50438,RD1699,CEI 0-21, AS4777,C10/C11 |
Physical Structure | |
Dimensions | 252x250x28mm |
Weight | 2.5kg |
Environmental Protection Rating | IP 67/NEMA 6 |
Cooling Concept | Natural convection |
Overvoltage Category | PVⅡ/Mains Ⅲ(According to IEC 62109-1) |
General Data | |
Operating Ambient Temperature Range | -40℃ to +65℃ |
Operating Internal Temperature Range | -40℃ to +85℃ |
Isolation Type | HF Transformerless |
Communication | Wire communication |
Standard Warranty | 15 Years (5-25 years optional) |

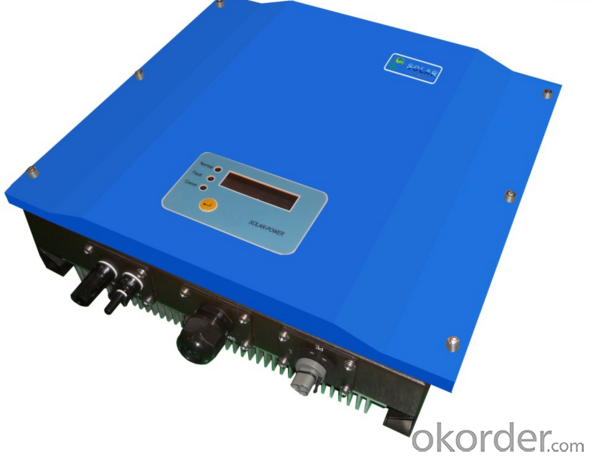

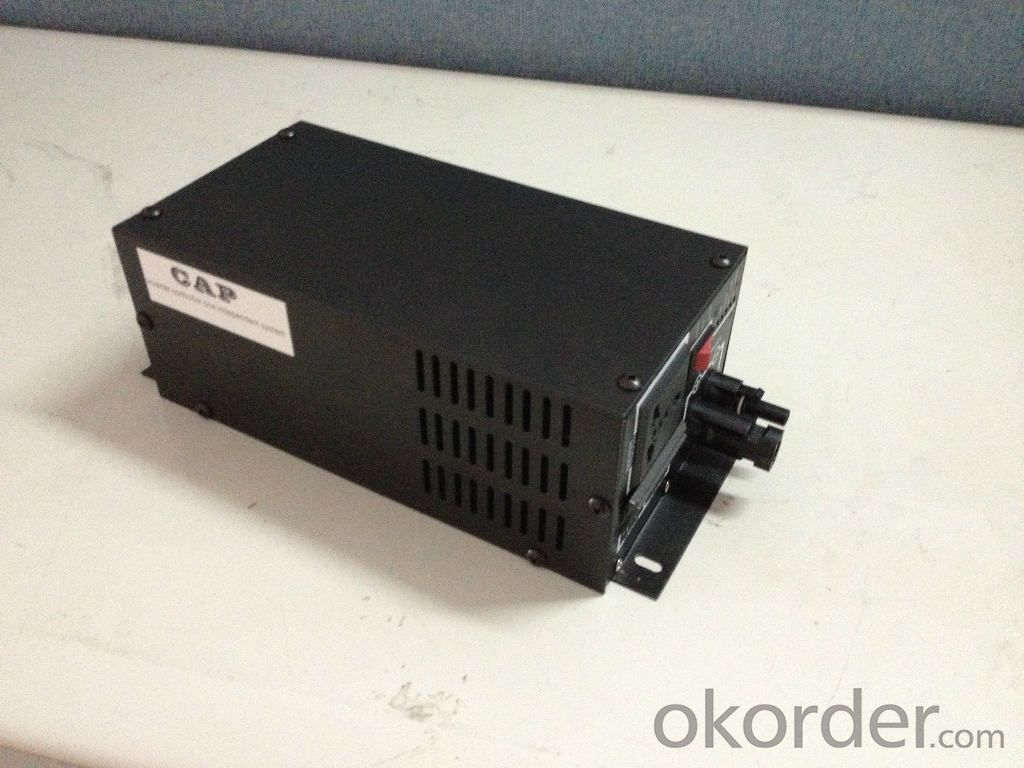

IMages of Micro Inverter Solar Inverter
FAQ
Q: Do you have the CE, TUV, UL Certification?
A: We’ve already passed all the tests, and any certificate is available.
Q: Have you ever sold your products to companies in my country?
A: Of course, we have customers in all general PV markets, but I think we should expand our market share along with the market growth.
Q: When did your company set up? You are a new company, how can I believe your quality?
A: We entered into Solar PV industry in 2005, now we have several plants in manufacturing of a-Si and c-Si panels, and our capacity is 220MW per year. Till now we have already passed all the tests by authorized laboratories, e.g. TUV, CE, UL.
Q: Can you help us install the module if we cooperate with you?
A: We haven’t entered into installation sector, but we have the plan in near future.
Q: How do you pack your products?
A: We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
Q: Can you do OEM for us?
A: Yes, we can.
Q: Can we visit your factory?
A: Surely, I will arrange the trip basing on your business schedule.
