Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:4 set
Supply Capability:1000 set/month
Presentation:

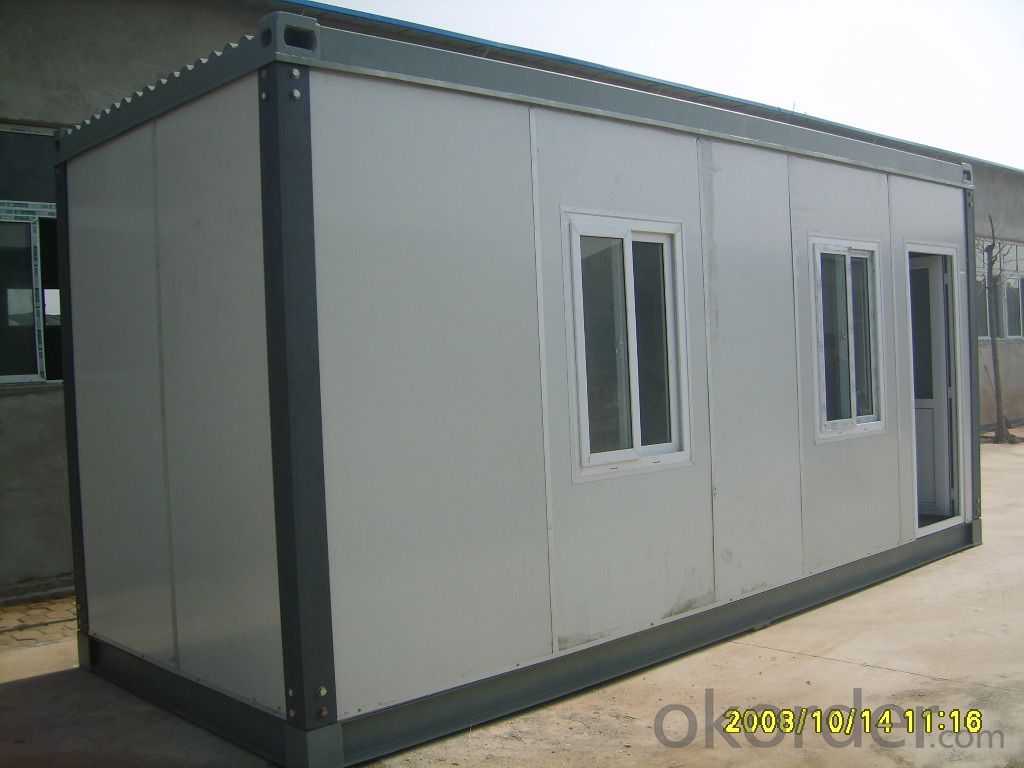

Container Houses, as a covinient way to live, have been widely used around the world.
Specifications
1.Qualified material
2.Flexible design
3.Fast installation
4.Reuse for numerous times
5.Convenient package for shipping
The details as follows:
Item
Name
Specification
Dimension
Length
Exterior/interior: 5.950m/5.710m
Width
Exterior/interior: 2.310m/2.060m
Height
Exterior/interior: 2.740m/2.400m
Weight
1750kg per unit
Standard accessory
Floor
Orlop wainscot: 0.4mm galvanized steel sheet.
Structure: channel steel keel, Material:Q235.
The girder of the keel are welded by two ends.
Insulation fitting: EPS in a thickness of 30mm above the galvanized steel sheet.
Waterproof bamboo-glue board in a thickness of 15mm for the bathroom and Plywood board in a thickness of 15mm for other rooms
PVC floor sheet in a thickness of 1.5mm on the topside
Permitted loading: 2.0KN/m2, Coefficient of thermal conductivity: K=1.1W/ m²K
Roof
Structure: box girder 120*80,Material:Q235
The topside wainscot: 0.5mm galvanized steel sheet.
The purlins of the keel are welded by two ends.
Insulation fitting: EPS in a thickness of 30mm above the galvanized steel sheet.
Orlop wainscot: 5mm MDF laminated decorative panel
Roof drainage: 4 PVC rainspout pipes, diameter 50mm in corner pillars.
Permitted loading: 0.5 KN/m2, Coefficient of thermal conductivity: K=0.55W/ m²K
Wallboard
75mm Color steel sandwich panel, 0.5mm steel sheet surface, 29μm galvanized paint, inside white and outside silver-gray.
Permitted loading: 0.6KN/m2, Polystyrene density: 15kg/m3, Coefficient of thermal conductivity: K=0.442W/mk
Door
SIP single door,size:800mm*2000mm, aluminum frame, 50mm thick EPS insulation foam, cylinder lock with 3keys.
Window
PVC sliding or casement window with fly screen, aluminium binding tape decorative , size:700mm*1000mm, 5mm glaze.
Hallway
Composite of framework and 2.5 thickness skid-proof steel board,Material:Q235
Stair
Inclined girder is roolled channel pipe 160*50,steel board walk is 300 thickness skid-proof steel board,Material:Q235
Lamp
2*30W double tube grilles lamp
Switch
two pieces siwtch
Socket
Two pieces of nine-hole socket,one piece of six-hole socket,two pieces of five-hole socket
Breaker
20A (fixed on the wallboard)
Option
Exhaust fan
40W exhaust fan
Partition
50mm thickness double surface color steel sandwich panel board,white
Window
Color steel window,size:1702mm*991mm
Door
Color steel single and double door,size:1702mm*1920mm
Stair awning
Composite of square steel framework and transparent PVC board
Resistance
Bearing Load
50kg/m2
Wind proof
11 grade
Fire proof
B1 grade(fire-resistant materials)
The earthquake resistance
grade:7 degree
