Metal Pipe Automatic Packing Machine roll forming machine

Loading Port:Tianjin

Payment Terms:TT OR LC

Min Order Qty:1 set

Supply Capability:100 set/month

Product Description:

Structure of Steel Pipe Automatic Packing Machine Description



The steel pipe automatic packing machine is researched and developed independently with proprietary intellectualproperty rights in our company. There are series of creative technologies suchas automatic delivering steel pipes, unqualified pipe automatically leaving outof production line, automatic pipes aligning, automatic stacking pipes, andautomatic outputting the pipes and so on. This packing machine solves the manyproblems in the client’s plant with the following advantages: saving laborpower, lowering the production cost, reducing the labor tension, releasing thecasualty and so on. Besides, this packing machine is used conveniently andeasily maintained.



Main Features of Steel Pipe Automatic Packing Machine machine Description



Packaging Machine is designed and manufactured by  advanced science and technology in the world. It has  reliable quality, high efficiency and beautiful shape . it be controled by PLC, Use encode control the length of bag.we have adopted advanced photo electricity track planet differential compensating mode and automatic constant temperature control mechanism, which makes our machine has very fast packaging speed. Moreover, our machine can carry out step less speed adjustment, and automatically finish the processes of  bag making , computation, filling, sealing, cutting, counting and printing number  on the bag. It can be used for various compound packaging materials.



Specification

1,Test Pressure: 5~30Mpa(40Mpa)According to the needs of users of steel pipe pressure test

2,Test Pipe Diameter:φ108~φ720(914,1220,1420)mm

3,Test Pipe Length:4m-14m

4,1~6Hydraulic Cylinders,water-oil balance pressure 50 ~ 2000 t (total thrust)

5,Steel pipe pressure test on both ends of the sealing form:

A Steel pipe end face seal:Use a dedicated end face sealing device and sealing ring

B Steel pipe radial seal:Using radial sealing ring

The sealing ring can repeat test 15 ~ 50 times,according to user's need to customize.

6,Floor area: 20 m x 10 m x 3.5 m (length x width x height)





Images

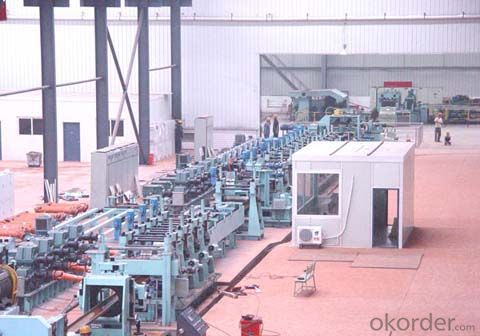

Metal Pipe Automatic Packing Machine roll forming machine



FAQ

How do you guarantee the quality?

We can provided CE certificate if we are required.



What's the delivery time?

around 120days after receive your 30% payment.



Where can we see your machines?

You are welcome to visit our factory and test it by yourself.
