Heavy equipment, imported with original packing CUMMINS QSM11 series engine, Tier 2 emission, energy saving and green, convenient maintenance, adopt radial seal air cleaner, air pre-cleaner, large fuel pre filter and coolant filter, effectively extend the engine's working time; equipped with the fuel filling pump and pressure transmitter, effectively imporve the economical efficiency of the fuel;
Imported with original packing hydraulic components; stable and reliable quality, high working efficiency, strong digging force and walking power;
New type of cab and seat, great interiors, new type of air conditioner system could automatically adjust the wind distribution;comfortable to operate;

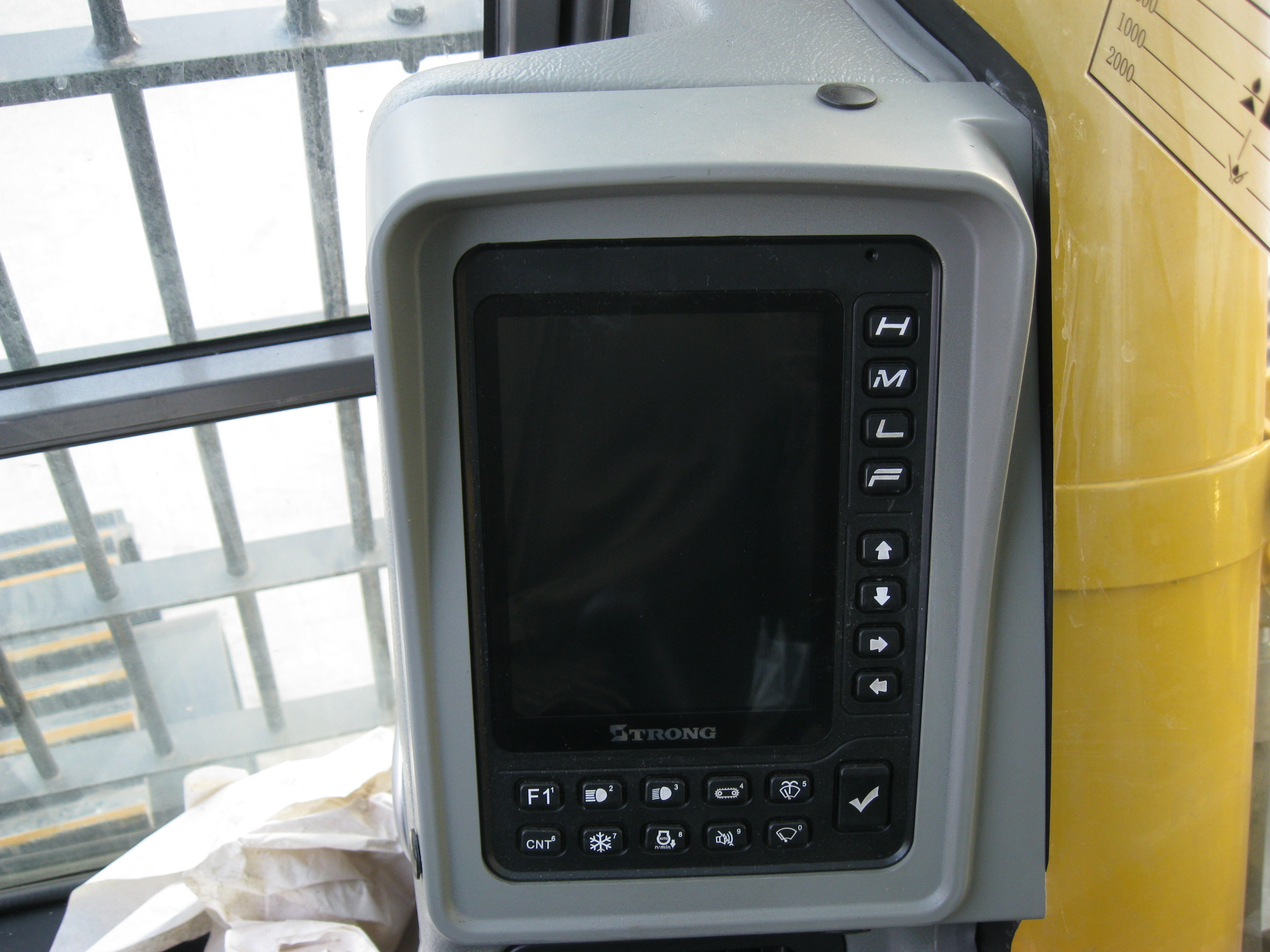

Equipped with new-generation electronic control system; big color LCD, can monitor the machine at any time; be of self-diagnosis and record functions; electronic control throttle; many operating modes for your option;

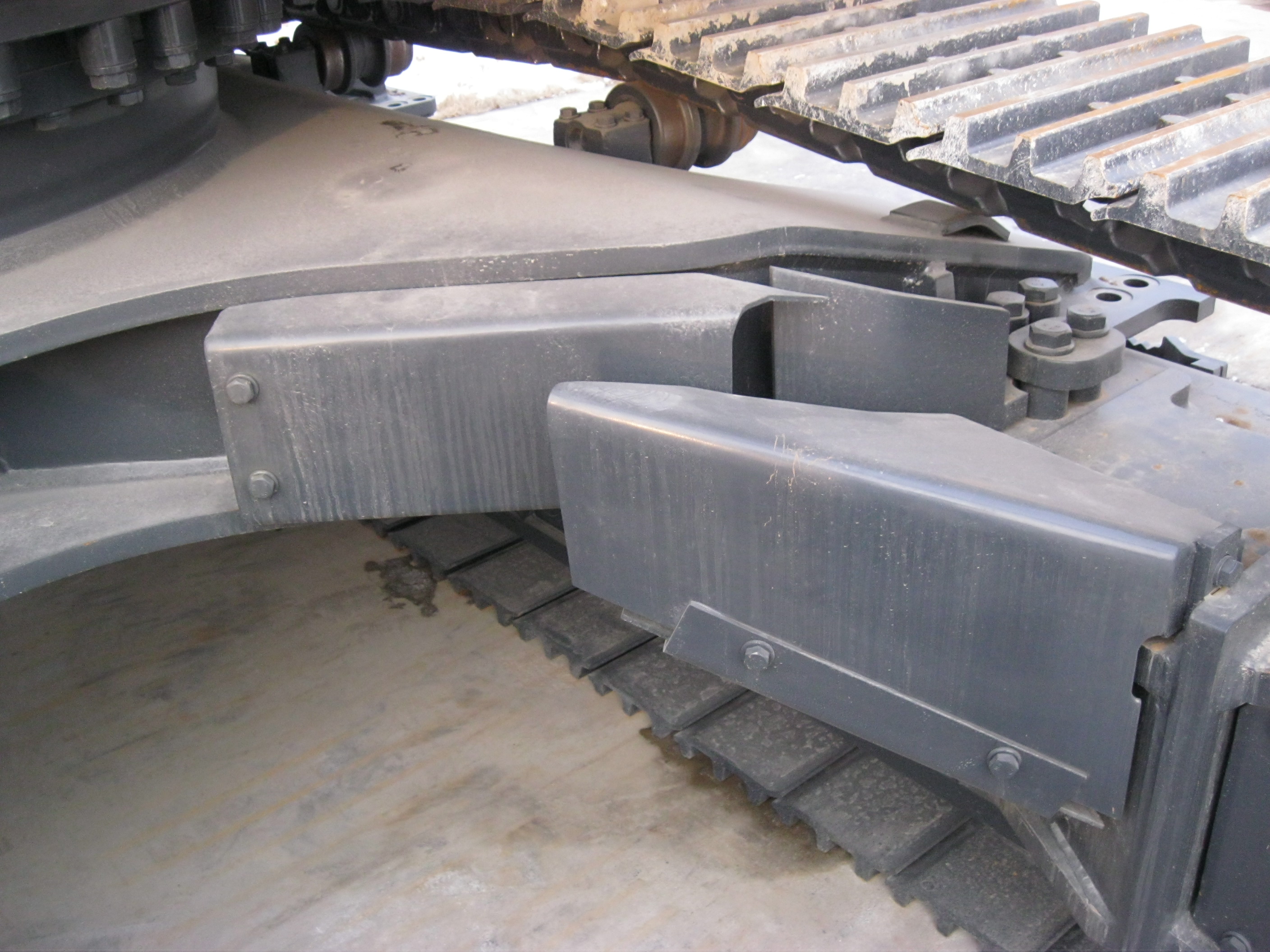

Strengthen the working devices and the lower frame, heavy type of chassis components; be capable for the terrible working environment;
Equipped with different types of buckets, some attachments such as breaking hammer, ripper and quick hitch could be your selection; digging, landfill, crushing, leveling could be realized by one machine;
Multi-function GPS can realize romote monitor and bidirectional data transmission, get the machine's operating information at any moment;
The exhaust pipe is installed in the bonnet; be convenient to repair and maintenance;
Enormous toolbox and fuel tank; layout of electrical equipments is centralized;
Cabinet-type frame boundary beam, wide gauge, long ground contact, equipped with 600mm width heavy travel shoes.

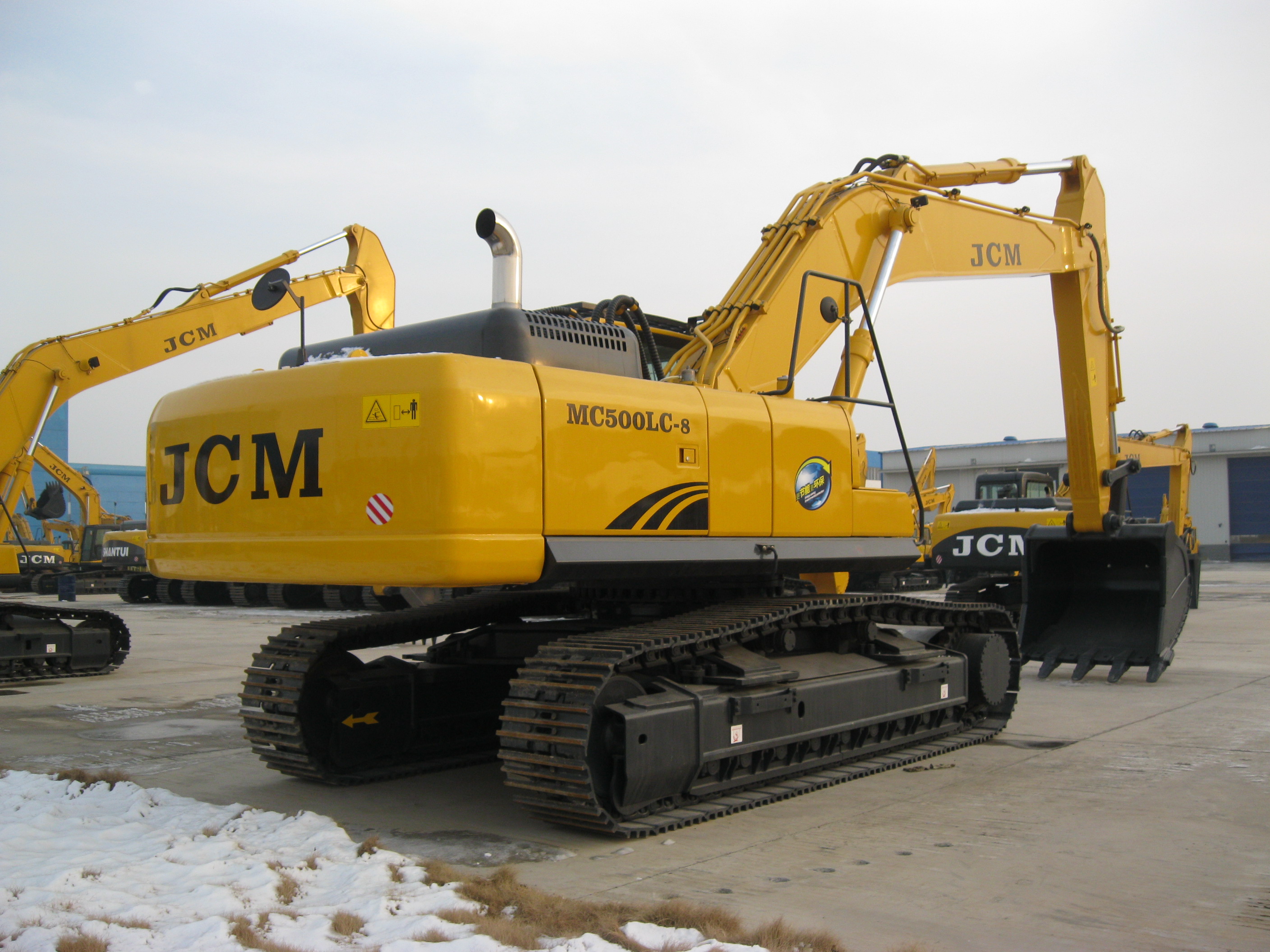

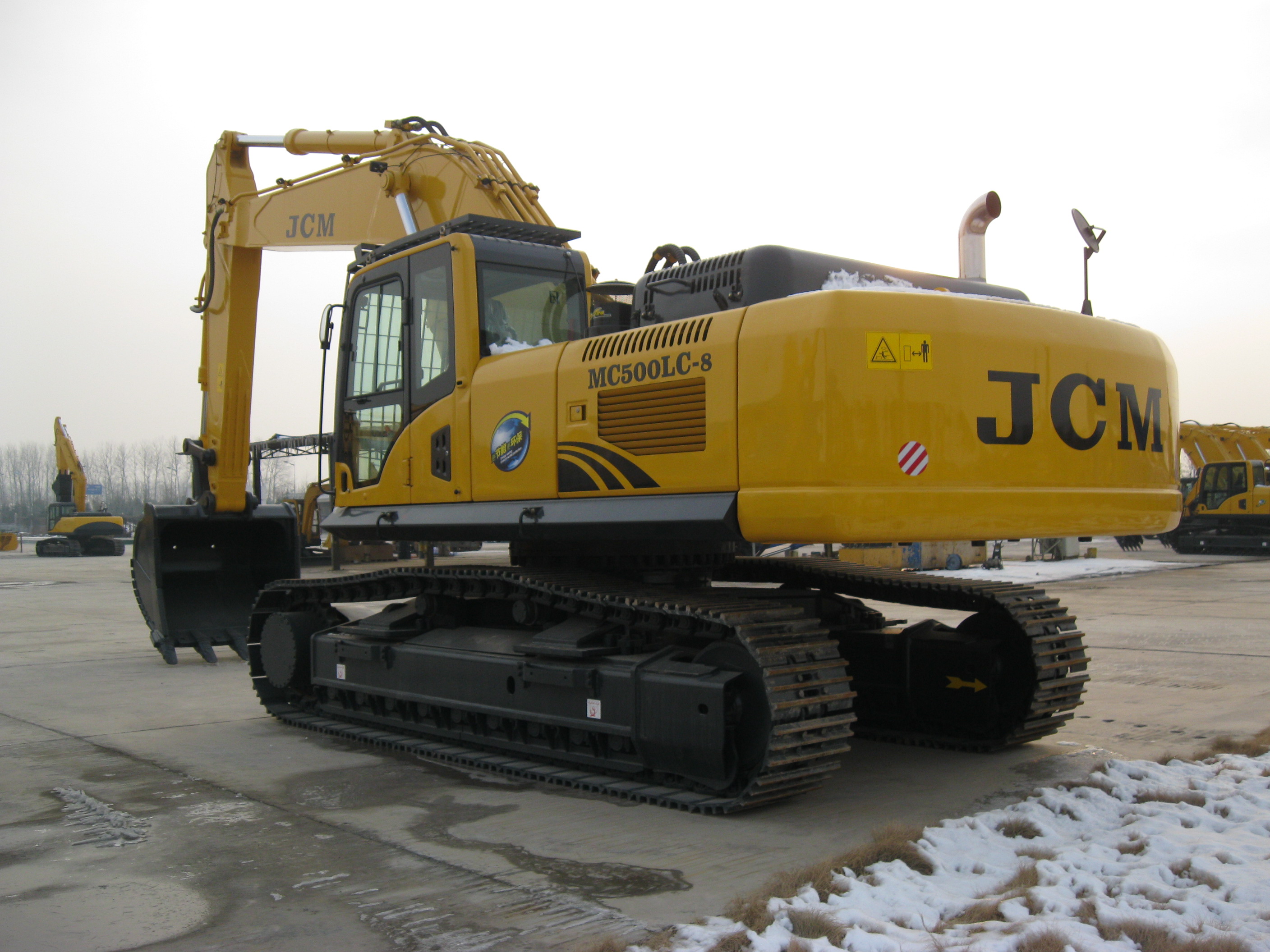

MC500LC-8Hydraulic Crawler Excavator
TechnicalSpecifications
Engine | Travel System | ||||||||||||
Model | CUMMINS QSM11 | Travel motors | NABTESCO, | ||||||||||
Type | Water cooling, turbocharged, empty enter-cooling | Support roller quantities | 2×9 | ||||||||||
Carrier roller quantities | 2×2 | ||||||||||||
No. of cylinder | 6 | Travel shoes | 2×49 | ||||||||||
Bore and stroke | 125mm×147mm | Travel speed | 2.52/4km/h | ||||||||||
Displacement | 10.8L | Drawbar pulling force | 330kN | ||||||||||
Power output | 250kW/2000rpm | Grade ability | 70% (35°) | ||||||||||
Ground clearance | 565mm | ||||||||||||
Hydraulic System | Cab ＆ Control | ||||||||||||
Pump | KAWASAKI, | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner | ||||||||||
Type | variable double–piston pump | ||||||||||||
Max. discharge flow | 2×265L/min | ||||||||||||
Max. discharge pressure | |||||||||||||
Boom, arm and bucket | 34.3MPa | ||||||||||||
Travel circuit | 34.3MPa | ||||||||||||
Swing circuit | 28.4MPa | Control | Two hand levers and two foot pedals for travel Two hand levers for excavating and swing;Electric rotary-type engine throttle | ||||||||||
Control circuit | 3.9MPa | ||||||||||||
Pilot control pump | Gear type | ||||||||||||
Main control valve | Negative flow control | ||||||||||||
Oil cooler | Air cooled type | ||||||||||||
Swing System | Refilling Capacities＆lubrications | ||||||||||||
Swing motor | KAWASAKI, | Fuel tank | 605L | ||||||||||
Swing motor type | Double, Axial-piston motor | Cooling system | 34L | ||||||||||
Brake | Hydraulic oil released | Engine oil | 37L | ||||||||||
Parking brake | Hydraulic disc brake | Hydraulic oil tank | 420L Tank oil level | ||||||||||
Swing speed | 9.3r/min | 600L Hydraulic system | |||||||||||
Bucket | |||||||||||||
Type | Backhoe bucket | ||||||||||||
Bucket capacity | 2.5m3 (SAE) | ||||||||||||
Bucket width | 1870mm | ||||||||||||
Arm Type |
| ||||||||||||
A | Max. digging height | 11210mm | |||||||||||
B | Max. dumping height | 780mm4 | |||||||||||
C | Max. digging depth | 7354mm | |||||||||||
D | Max. vertical digging depth | 6512mm | |||||||||||
E | Max. Depth cut for 2440m(8')Level Bottom | 7202mm | |||||||||||
F | Max. digging distance | 11774mm | |||||||||||
G | Max. digging radius at ground level | 11552mm | |||||||||||
H | Min. swing radius of work equipment | 4919mm | |||||||||||
Digging Force (ISO6015) Unit: kN | |||||||||||||
Arm length | 3000mm | ||||||||||||
Bucket digging force | 263kN | ||||||||||||
Arm digging force | 255kN | ||||||||||||
Arm Type 3000mm | |||||||||||||
A | Overall length | 12090mm | I | Tread | 4414mm | ||||||||
B | Ground contact length (Transportation) | 7323mm | J | Track length | 5428mm | ||||||||
C | Overall height(to top of boom) | 3749mm | K | Track gauge | 2392mm | ||||||||
D | Overall width | 3290mm | L | Track width | 2992mm | ||||||||
E | Overall height(to top of cab) | 3480mm | M | Shoe width | 600mm | ||||||||
F | Counter weight ground clearance | 1365mm | O | Bonnet height | 2845mm | ||||||||
G | Ground clearance | 710mm | P | Revolving frame width | 3322mm | ||||||||
H | Tail swing radius | 3742mm | Q | Distance from swivel center to tail | 3654mm | ||||||||
| |||||||||||||
Operating Weight and Ground Pressure | |||||||||||||
Operating weight includes basic machine (with arm 3m, and bucket 2.5m3) | |||||||||||||
Shoe width | 600mm | ||||||||||||
Overall width | 3290mm | ||||||||||||
Ground pressure | 80.3KPa | ||||||||||||
Operating weight | 47500kg | ||||||||||||
