Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:-
1,Structure of （Mineral Fiber Ceiling） Description
mineral fiber ceiling
1,can be customized
2,in stock,deliver fast
3,CE,ISOE Certification
4,jinzhou factory offer
2,Main Features of the （Mineral Fiber Ceiling）
Size: 595*595mm 600*600mm 603*603mm 600*1200mm
610*610mm 610*1220mm 613*1213mm 300*1200mm
Thickness: 6mm-22mm
Pattern: Lovely worm, Litter star, Pinhole, Perforation, Glacier,etc.
Edge: Square, tegular/revealed, conceal and exceed conceal.
Note: Other specification is available

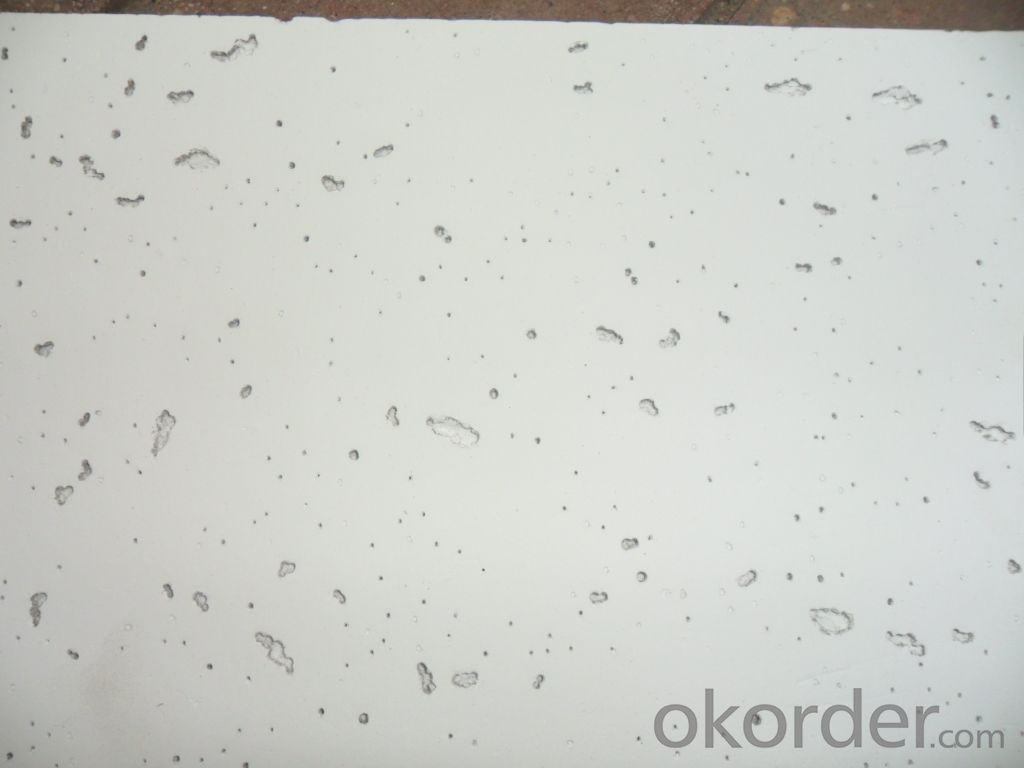

3,（Mineral Fiber Ceiling） Images
4,（Mineral Fiber Ceiling） Specification
Mineral fiber ceiling features:
Ceiling tiles material | Wet Formed mineral fiber |
Ceiling tiles surface | Factory Applied Vinyl Latex Paint |
Noise reduction coefficient | NRC 0.55 |
Humidity Resistance(RH) | >=80% |
Light reflectivity | >=85% |
Fire Performance | non-combustible,reach class A according to GB8624-1997 |
Moisture resistant | standard board quality (12mm,14mm) according to JC/T670-2005 |
Environmental protection | no asbestos,formaldehyde content<0.1mg/L |
Acoustical performance | comply with the requirements of JC/T670-2005 |
Ceiling tiles colour | white |
Ceiling tiles density | 280-320kgs/m3 |
Ceiling tiles size | 300x600mm, 300 x 1200mm, 600x600mm,600x1200mm etc |
Ceiling tiles edge finish | square edge, tegular edge, adhesive and nails edge, concealed edge, shiplap edge, and liner shiplap edge. |
Ceiling tiles thickness | 9mm ,10mm,11mm,12mm, 14mm, 15mm, 16mm,18mm, 20mm etc. |
Ceiling tiles feature | Sound absorbing,Resistance to fire, warm-keeping, energy-saving, heat-insulating |
Ceiling tiles pattern | Pine holes,Little-Stars,LovelyWorms,Sand Surface and other special designs, Also according to your requirement |
5,FAQ of （Mineral Fiber Ceiling）
Product Specification:
Item no.: CW-W
Body Edge: Square shape/ Tegular shape
Body Side: 595x595mm/603x603mm
Body Material: Mineral fiber wool
Body Thickness: 10, 12, 13, 14, 15,16, 18, 20mm
Exterior pattern: complanate
RH data: 10mm~15mm:75~80%,18mm:85~87%, 14mm~15mm:85%, 18mm:85%~90%
Exterior finish: Factory-applied Vinyl latex paint
Packing details: Packed by paper sleeve, then shrinkwrap.
Loading Capacity
SIZE | THICKNESS (mm) | QUANTITY (M2/40HQ) | THICKNESS (mm) | QUANTITY (M2/40HQ) |
2'x2';2'x4';595X595mm;595x1195mm | 12 | 5400 | 15 | 4320 |
2'x2';2'x4';595x595mm;595x1195mm | 13 | 4968 | 18 | 3301 |
2'x2',2'x4';595x595mm;595x1195mm | 14 | 4500 |
|
|
