Loading Port:Ningbo
Payment Terms:TT OR LC
Min Order Qty:1000 pc
Supply Capability:100000 pc/month
1. It is used in industrial fields, agriculture and garden irrigation
2. Beauty appearance.
3. Thermal insulation and energy saving.
4. Easy installation
5. Excellent heat resistance and pressure resistance
6. Affordable price
Size
PN 1.25MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa | |
Outer Diameter dn(mm) | Wall Thickness en (mm) | Wall Thickness en(mm) | Wall Thickness en(mm) | Wall Thickness en(mm) |
20 | 2.0 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.1 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15.0 |
110 | 10 | 12.3 | 15.1 | 18.3 |
Specifications

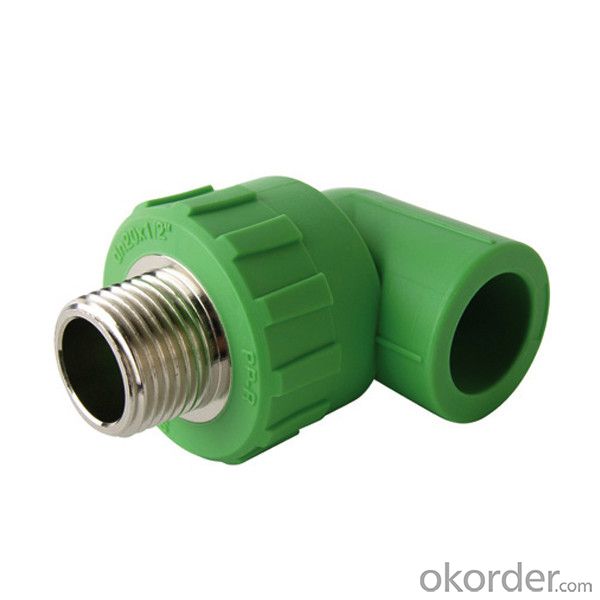

Item No. | Male Threaded Elbow with Disk |
Description | PPR PIPE FITTINGS FOR WATER SUPPLY |
Material | PPR |
Standard | DIN8077/8078 |
Usage | Water Supply |
Size | 20*1/2',25*1/2'',25*3/4'' |
Color | Green and White |
Material | Imported row material |
Product Applications:
1.Distribution for cool and hot water
2.Duct for drinkable water system
3.Pipes for kinds of high-temperature and low-temperature heating system
4.Pipes for heating and coolling settings in solar energy system
5.Connecting pipe for air conditioners
Product Advantages:
1) Healthy, bacteriological neutral, conforming to drinking water standards
2) Resistant to high temperatures, good impact strength
3) Convenient and reliable installation, low construction expenses
4) Excellent heat-insulation property from minimum thermal conductivity
5) Lightweight, convenient to transport and handle, good for labor-saving.
6) Smooth inner walls reduce pressure loss and increase flow speed
7) Sound insulation (reduced by 40% compared to galvanized steel pipes)
8) Light colors and excellent design ensure suitability for both exposed and hidden installation
9) Recyclable, environment-friendly, accords with GBM standards
Main Product Features:
1. Large drum hub to maximize cable life
2. Self-activating automatic brake hold the load securely when crank handle is released
3. With cable or strap
4. Safety guard cover available
5. Top quality with competitive price
6. Widely used in the double beam bridge crane and gantry crane
7. Easy to install and high quality
8. Compact structure and reasonable design
9. Could be mounted on t he ground or wall!
10. Double drum!!
Company Profile
CNBM International Corporation (CNBM International) is the most important trading platform of CNBM Group Corporation, a state-owned company under the direct supervision of State-owned Assets Supervision and Administration Commission of the State Council.
CNBM International is highly recognized by its business partners and clients all over the world and has obtained rapid development under the spirit of win-win. We will carry on the mutual beneficial, innovative and revolutionary trading structure as we did before, create value for our employees, share holders and clients and benefit the whole society in our future development.
FAQ:
Q1：How Can I Get A Sample?
A1:You can get samples by communicate with our export sales.
Q2:How Long Is Delivery?
A2:Delivery time will be30-45days according to order quantity.
Q3:What Is The MOQ?
A3:MOQ depends on different items.
Q4:What Is Our Normal Payments Terms?
A4:Our normal payment terms now is: T/T, L/C or western union,paypal
