ability, easy machining, and good damping performance. In fields about modern aviation, manufacturing,
automotive, electronic products, especially today humans concern on energy and the environment, people pay
increasing attention to magnesium plate. The large number of applications depend on its innovation of the
magnesium plate processing technology.

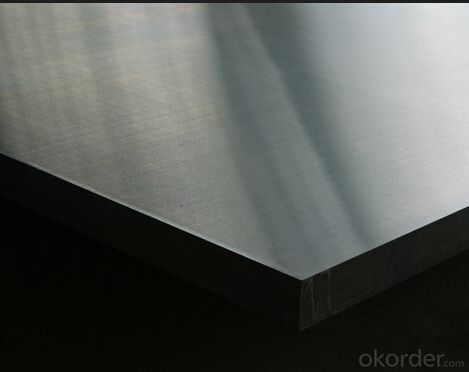

AZ31B magnesium alloy plate
1.Alloy:AZ31B,ME20M,MG99.95
2.Temper:H18\H24\H112
3.Thickness:from 1.5mm
4.Width:start from 50mm
5.Packing: Each plate packed with plastic film and all plates in one poly wood case.
6.Application: Widely used as engraved plate /printing industry. Also in the molds making,ect.
details
Designation | Chemical Composition << span=""> | ||||||||
Al | Zn | Mn | Ce | Fe | Si | Cu | Ni | Mg | |
AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | - | 0.01 | 0.08 | 0.01 | 0.001 | Balance |
ME20M | 0.20 | 0.30 | 1.3-2.2 | 0.15-0.35 | 0.05 | 0.10 | 0.05 | 0.007 | Balance |
MG99.95 | 0.01 | - | 0.01 | - | - | 0.01 | 0.05 | 0.007 | Balance |
Strength Properties:
Designation | Strength Properties | |||
Thickness | Tensile Strength Rm (N/mm2) | Yield Strength σ0.2 (N/mm2) | Elongation A% 50mm | |
AZ31B | 0.5-3mm | 260 | 170 | 24 |
>3mm | 230 | 140 | 18 | |
ME20M | 0.8-3mm | 250 | 170 | 21 |
>3mm | 220 | 140 | 15 | |
