LSAW Welded Steel Pipes API SPEC 5L Gr.B X40 X42 X52 X56 X60 X65 X70

Loading Port:Shanghai Port

Payment Terms:TT or L/C

Min Order Qty:50MT m.t.

Supply Capability:based on order m.t./month

Product Description:

1.Specification of LSAW Welded Steel Pipes API SPEC 5L Gr.B X40 X42 X52 X56 X60 X65 X70

1)Application: It is widely applied to line pipe in oil and sewage transportation , and it is used in Low pressure liquid and gassy transportation and it is also good Structure pipe in building and bridge field.

2)Standard: API SPEC 5L

3)Grade：API 5L GR.B, X40, X42, X52, X56, X60, X65, X70

4)Surface: Bare / Varnish coating / FBE, 3PE coating DIN30670 / or by client option

2.Size of Pipes

OD: 406.4MM-1422MM (16”-56”)

Thickness: 8MM-50.8MM depends on OD

3.Packing & Delivery

Package Detail: bundles with anti-rust painting and with plastic caps

Delivery Term: 30 days after receving payment or L/C

4. Data Sheet

Mechanical Properties

Standard	Grade	（MPa）		（MPa）
		Yield strength		Tensile Strength
API SPEC 5L	PSL1
	B	≥241		≥414
	×42	≥290		≥414
	×46	≥317		≥434
	×52	≥359		≥455
	×56	≥386		≥490
	×60	≥414		≥517
	×65	≥448		≥531
	×70	≥483		≥565
	PSL2
		Min	Max	Min	Max
	B	241	448	441	758
	×42	290	496	414	758
	×46	317	524	434	758
	×52	359	531	455	758
	×56	386	544	490	758
	×60	414	565	517	758
	×65	448	600	531	758
	×70	483	621	565	758

Chemical Composition(%)

Standard	Grade	C	Mn	P	S	CEV
	Grade	Max	Max	Max	Max	Max
	PSL1					-
	B	0.26	1.2	0.030	0.030
	×42	0.26	1.3	0.030	0.030
	×46,×52,×56，X60	0.26	1.4	0.030	0.030
	X65	0.26	1.45	0.030	0.030
	X70	0.26	1.65	0.030	0.030
	PSL2					0.43
	B	0.22	1.20	0.025	0.015
	×42	0.22	1.30	0.025	0.015
	×46,×52,×56, X60	0.22	1.40	0.025	0.015
	X65	0.22	1.45	0.025	0.015
	X70	0.22	1.65	0.025	0.015

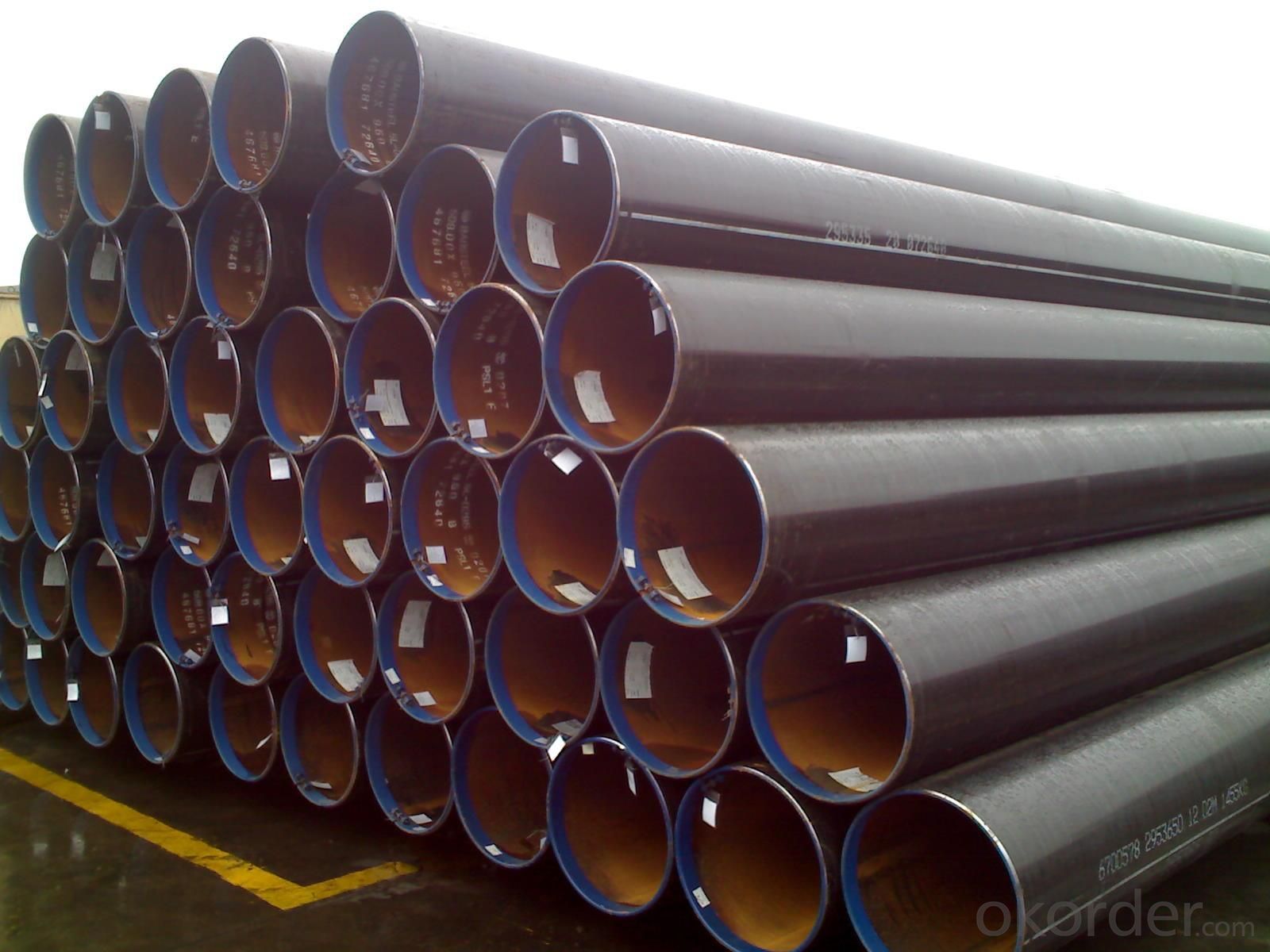

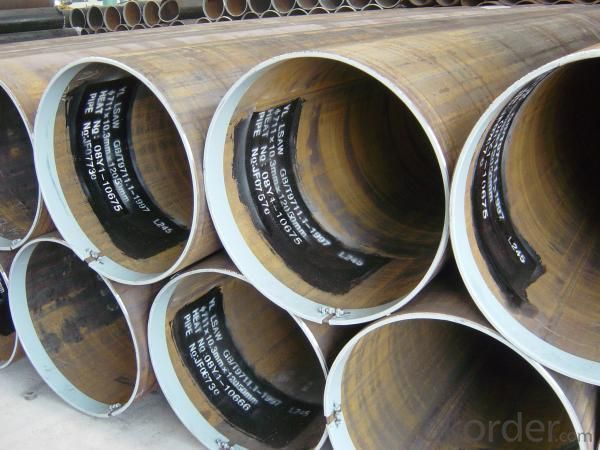

5. Products Showroom

LSAW

LSAW welded steel pipe LSAW welded pipe API SPEC 5CT
