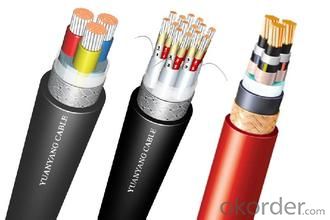

Low Voltage(0.6~1kV) PVC Insulated Electrical Power Cable
1. Type, Designation and Application
Type | Designation | Application | |
Cu | Al | ||
VV | VLV | PVC insulated PVC sheathed power cable | Suitable for indoor, channel, conduit. Unable to bear mechanical stress. |
VY | VLY | PVC insulated PE sheathed power cable | |
VV22 | VLV22 | PVC insulated steel-tape armored PVC sheathed power cable | Installed in underground, can bear mechanical stress, but cannot endure large pulling force. |
VV23 | VLV23 | PVC insulated steel-tape armored PE sheathed power cable | |
VV32 | VLV32 | PVC insulated thin steel-wire armored PVC sheathed power cable | Can be installed in vertical well, and bear large mechanical pulling force. |
VV42 | VLV42 | PVC insulated steel-wire armored PVC sheathed power cable | |
VV33 | VLV33 | PVC insulated thin steel-wire armored PE sheathed power cable | |
VV43 | VLV43 | PVC insulated steel-wire armored PE sheathed power cable | |
Note: According to customers’ requirements we can produce flame retardant, fire proof, termite resistant, LSOH and low smoke low halogen, etc.
2. Range of Production
Type | No. of cores | Rated Voltage 0.6/1kV | |
Cu | Al | Nominal cross-section (mm2) | |
VV VY | VLV VLY | 1 | 1.5~630 |
VV22 VV23 | VLV22 VLV23 | 10~630 | |
VV VY | VLV VLY | 2 | 1.5~240 |
VV22 VV23 | VLV22 VLV23 | 4~240 | |
VV32(42) VV33(43) | VLV32(42) VLV33(43) | 4~240 | |
VV VY | VLV VLY | 3 | 1.5~300 |
VV22 VV23 | VLV22 VLV23 | 2.5~300 | |
VV32(42) VV33(43) | VLV32(42) VLV33(43) | 4~300 | |
VV VY | VLV VLY | 4 3+1 | 1.5~300 |
VV22 VV23 | VLV22 VLV23 | 2.5~300 | |
VV32(42) VV33(43) | VLV32(42) VLV33(43) | 4~300 | |
VV VY | VLV VLY | 5 4+1 3+2 | 1.5~300 |
VV22 VV23 | VLV22 VLV23 | 2.5~300 | |
VV32(42) VV33(43) | VLV32(42) VLV33(43) | 4~300 | |
