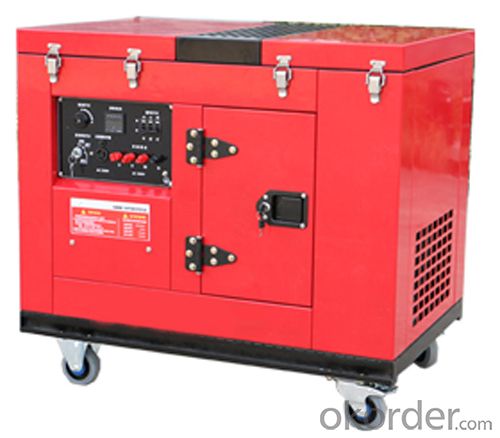

Low-noise Gasoline Generator Set 5KW to 20KW

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 set

Supply Capability:1000 set/month

Product Description:

Low-noise Gasoline Generator Set 5KW to 20KW

Features

1. Multiple silencers, unique structure design, low noise, easy maintenance

2. High-quality air-cooled engine, light weight, high efficiency and reliable

3. Brushless motor, good waveform, high efficiency, low failure rate

4.Can provide ATS unit and remote control unit according to customer needs

5.The OHV four-stroke engine has strong power, sufficient horsepower, low emissions, large-bore operation and stable performance.

6.Closed appearance design, two major noise reduction devices: built-in soundproof cotton + carbon steel muffler, which can effectively reduce noise; the standard universal moving wheel, follow the push and move, convenient and fast.

7.Large copper wire motor with sufficient power and more stable performance; suitable for different harsh environments, quick start and strong load.

8.Multi-function digital display meter: voltage, frequency, duration are clear at a glance, reading is accurate, full-featured, and can be effectively controlled.

Genset model

Low-noise Gasoline Generator Set

ZOP6500

ZOPSG12000

ZOP15000

ZOP18000

ZOP22000

Engine model

188

2V87

R670

5434

6134

Type

Four stroke air cooling

Displacementcm³

389

678

670

896

993

Start system

Recoil/Electric

Max.power (kw/rpm)

7.35/3600

13.5/3600

15.5/3600

22.7/3600

25.7/3600

Oil capacity(L)

1.1

1.5

1.5

2.3

2.5

Fuel capacityL

25

25

25

35

35

Fuel type

Gasoline

Phase

Single

Three phase

Rated powerKW

5.0

10.0

12.0

15.0

20.0

Rated voltage(V)

220

380

380

380

380

Rated currentA)

22.7

18.9

22.7

28.5

37.9

Power factor(cosΦ )

1.0

0.8

0.8

0.8

0.8

Rated frequency(Hz)

50

50

50

50

50

Packing dimension(cm)

99*59*72

108*73*103

108*73*103

108*73*103

118*82*110

Gross weight/Net weight(kg)

145/130

270/235

280/245

310/270

330/290
