Loading Port:Ningbo
Payment Terms:TT OR LC
Min Order Qty:500 pc
Supply Capability:10000 pc/month

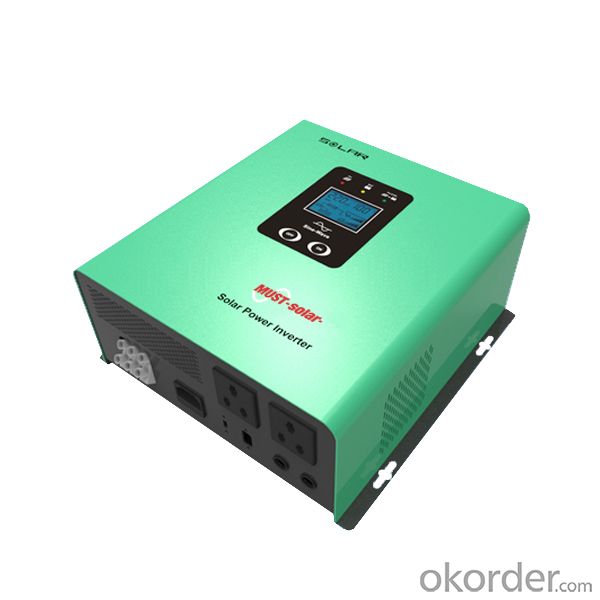

Pure sine wave solar inverter inbuilt with 30A solar charge controller
.Inbuilt with AVR function
.Solar first, high efficiency use of energy , Automatically charge from Grid power when insufficient PV Power
.Full protections for battery and inverter
.Suitable for home , different color options
.Controller efficiency max 90%
| MODEL | PV20-500 | PV20-1200 | PV20-2000 | ||||
| Default Battery System Voltage | 12VDC | 12VDC | 24VDC | ||||
| INVERTER OUTPUT | Rated Power | 500VA/300W | 1200VA/700W | 2000VA/1200W | |||
| Surge Rating (20ms) | 900W | 2100W | 3600W | ||||
| Waveform | Pure sine wave | ||||||
| Nominal Output Voltage RMS | 220VAC(+/-10% RMS) | ||||||
| Output Frequency | 50Hz/60Hz +/-1 Hz | ||||||
| Inverter Efficiency(Peak) | >80% | ||||||
| Line Mode Efficiency | >95% | ||||||
| Typical Transfer Time | Typical 2~6ms 10ms(max) | ||||||
| AC INPUT | Voltage | 220VAC | |||||
| Selectable Voltage Range | 140~275VAC(For Personal Computers) | ||||||
| Frequency Range | 50HZ/60HZ (Auto sensing 47~65Hz) | ||||||
| BATTERY | Minimum Start Voltage | 10.5VDC | 21.0VDC | ||||
| Low Battery Slarm | 10.5VDC+/-0.3V | 21.0VDC+/-0.6V | |||||
| Low Battery Cutoff | 10.0VDC+/-0.3V | 20.0VDC+/-0.6V | |||||
| High Voltage Alarm | 15.5VDC+/-0.3V | 31.0VDC+/-0.6V | |||||
| High Battery Voltage Recover | 15.0VDC+/-0.3V | 30.0VDC+/-0.6V | |||||
| CHARGER | Charger Voltage | 14.0±0.2V | 28.0V±0.2V | ||||
| Overcharge Protection S.D. | 15.5VDC | 31.0VDC | |||||
| Maximum Charge Current | 10A MAX | ||||||
| BYPASS & PROTECTION | Input Voltage Waveform | Sine wave | |||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||
| Low Freq Trip | 47+/-0.3Hz for 50Hz; 57+/-0.3Hz for 60Hz | ||||||
| High Freq Trip | 55+/-0.3Hz for 50Hz; 65+/-0.3Hz for 60Hz | ||||||
| Overload Protection (SMPS Load) | Load>110% R Load fault after 60S | ||||||
| Output Short Circuit Protection | AC FUSE Protection | ||||||
| Bypass Breaker Rating | 10A | ||||||
| Max Bypass Current | 10Amp | ||||||
| SOLAR CHARGER | Maximum PV Charge Current | 30A | |||||
| DC Voltage | 12V/24V atuo work | ||||||
| Maximum PV Array Power | 150W*3 solar panels | 150W*4 solar panels | |||||
| MPPT Range @ Operating Voltage | 16~55VDC | ||||||
| Maximum PV Array Open Circuit Voltage | 55VDC | ||||||
| Maximum Efficiency | >95% | ||||||
| Standby Power Consumption | <2W | ||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | |||||
| Dimensions (W*H*D) | 301*328*132mm | ||||||
| Net Weight (Solar CHG) kg | 6.86KG | 8.92KG | 10.25KG | ||||
| Shipping Dimensions(W*H*D) | 325*391*187mm | ||||||
| Shipping Weight (Solar CHG) kg | 7.54KG | 9.6KG | 10.93KG | ||||
| OTHER | Operating Environment | 0°C~40°C 0~90% relative humidity (non-condensing) | |||||
| Noise Level | Less than 60dB | ||||||
| Display | LED+LCD | ||||||
| Standard Warranty | 1 year | ||||||
Warrenty
provides a 1～3 year limited warranty (“Warranty”) against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers, Solar charge controllers, Battery Products (“Product”).
The term of this Warranty begins on the Product(s) initial purchase date, or the date of receipt of the Product(s) by the end user, whichever is later. This must be indicated on the invoice, bill of sale, and/or warranty registration card submitted to MUST-Solar. This Warranty applies to the original MUST-Solar Product purchaser, and is transferable only if the Product remains installed in the original use location.
FAQ
1. How do I decide which system is right for me ?
For protection from long outages, include a generator or solar panels in your Must solar system. Shorter outages can be handled by a battery-only system.
2. Where my system will be installed ?
Must solar systems are usually wall-mounted near a home's main electrical (circuit breaker) panel.
3. How do I install my system ?
A must solar backup inverter is connected to a home electric system , we will supply detailed installation manual and videos for our customers .
