CNBM Group is listed No.187 in on Fortune Global 500, 2020.
Refractory is one of the main products of the group. At the same time, under the globalization strategy, CNBM International is the exporter, logistic and local service supplier.
13 Refractory plants locate in 9 different cities
15 professor level senior engineers,239 engineers,5 senior experts committed Iron & Steel industry
Annual production capacity is over 400,000 tons.
Product Name: Low Creep High Alumina Andalusite Checker Brick for HBF.
Features:
High thermal shock resistance
Low creep
Technical Data Sheet for DRL-145
ITEMS | UNIT | VALUE |
Al2O3 | % | ≥65 |
Fe2O3 | % | ≤1.5 |
TiO2 | % | ≤0.6 |
Bulk Density | g/cm3 | ≥2.5 |
Apparent Porosity | % | ≤23 |
CCS | Mpa | ≥55 |
0.2 Mpa RUL , 0.2MPa | ℃ | ≥1550 |
Refractoriness | ℃ | ≥1790 |
0.2 Mpa Creep Rate 1450℃×（0~50）h , 0.2MPa 1450℃×（0~50）h | % | ≤0.8 |
Thermal Shock Resistance 1100℃, water ，1100℃ | cycle | ≥30 |

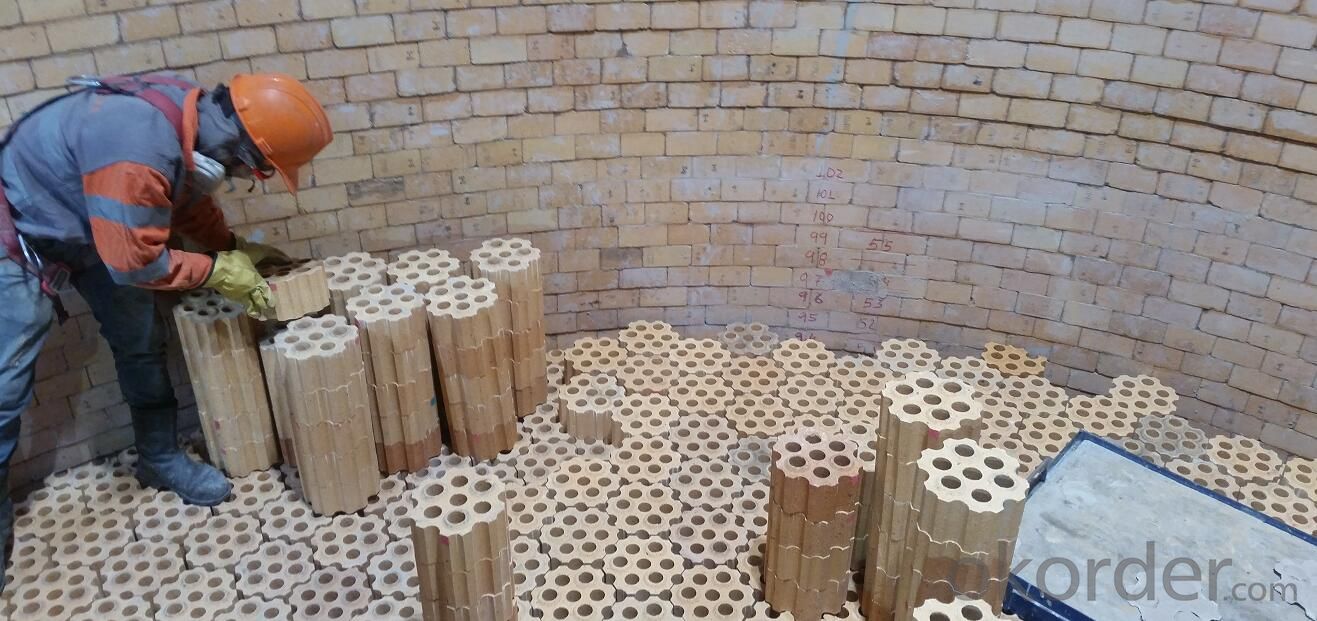

Product Photos of 7-hole Low Creep Checker Bricks

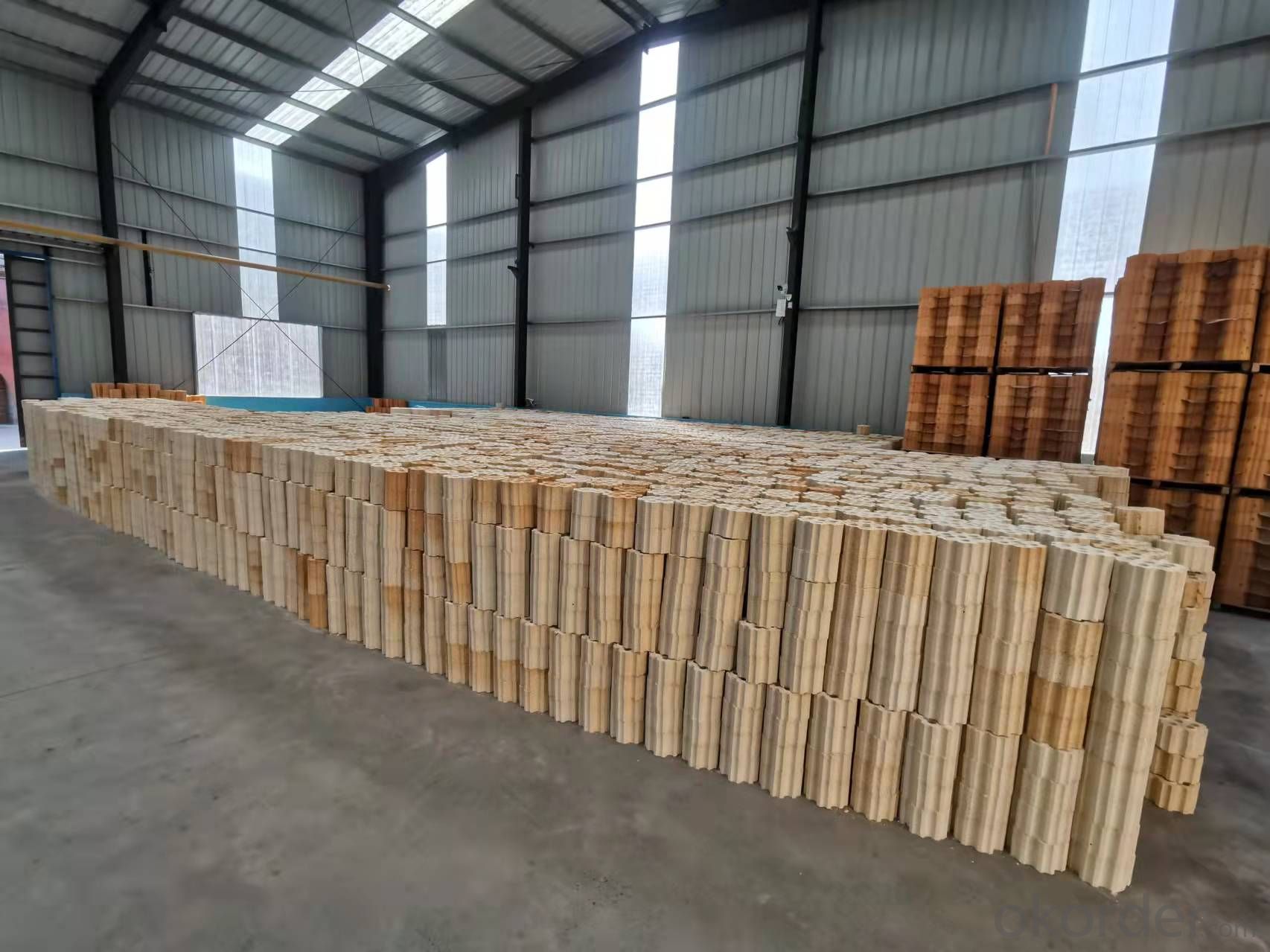

Our workshop
