Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:5 unit
Supply Capability:50 unit/month
Loading and Unloading Cage for Packaging Industry
1. Product Description:
The depalletizer is new style one which is researched and developed by absorbing advanced technology aboard. It is suitable for different medium and large beer filling production line, some functions will be changed or added according to the customer's actual requirement. The machine features as easy operation, smooth running, large output and easy maintenance.
2. Product Features:
1) This machine is composed of lift, transfer table, can pushing part, roller 1, roller 2 and operation platform.
2)Elevatingpart 3) Lift is used for lifting pallets to the height of transfer table and pushing cans to the transfer table by can push parts. 4) Transfer table 5) This part is used for can storage and transport.
3. Product Parameters:
Capacity | 600cans/min |
Applicable products | CAN,PE,PP,GLASS BOTTLES |
Totaln Power | 10KW |
Total Weight | 5000kg |
Motor Power | 3x380x3PH |
Copressed air supply | 0.8Mpa |
Applicable stac size(standard) | 1400x1100x2300mm(LXWXH) |
Air Supply Consumption | 0.1m3/min |
Can Conveying Mesh Chain | 4000mm |
Out Dimensions(Standard) | 12700x3500x4300(LXWXH) |
4. FAQ:
Q1: What is your delivery time?
A: Generally, the delivery time is 45-60 days after receive the deposit, big production line may take more time.
Q2: What is the payment term?
A: We accept both T/T and L/C. Most customers pay by T/T.
Q3: What kind of after-sevices do you provide?
A: If it is not big problem, we can solve it by emails, phone etc. If it can’t work, our engineers can go to overseas to install and adjust the machine and solve the problems.

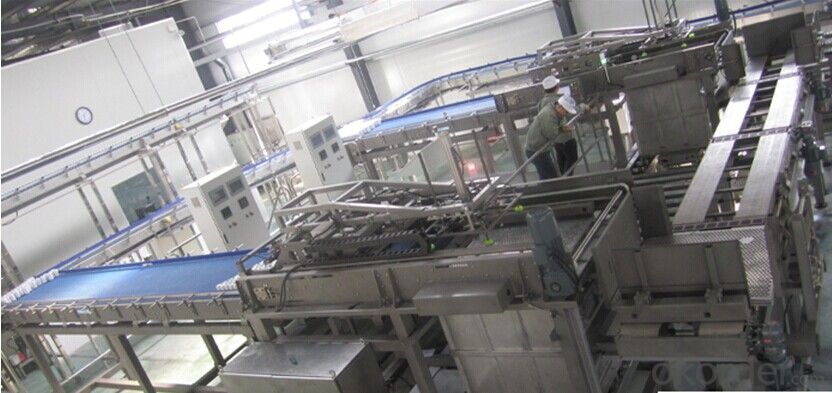

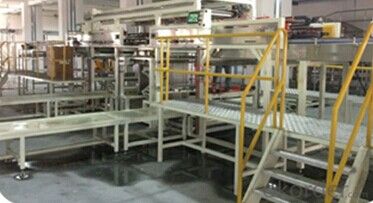

5. Product Pictures:
