Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

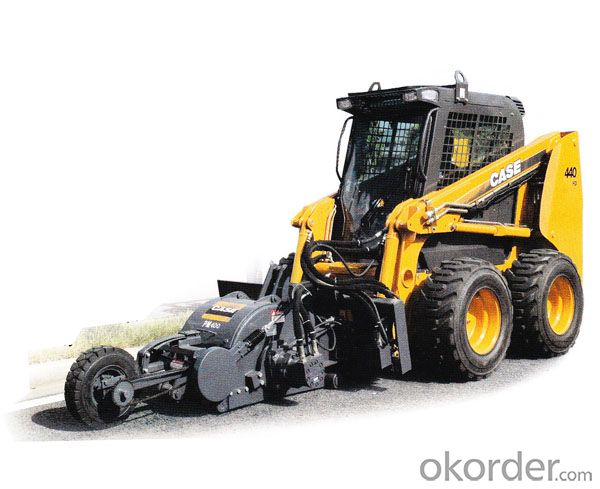

Loader, Rated Load 700kg, Engine Power 50HP(JC45G)
Model NO.:JC45G
Type:Skid Steer Loader
Usage:Universal Type
Scraper Type:Wheel Type
Transmission:Hydraulic Transmission
Walking Mode:Wheeled
Load and Unload Method:Front Discharge
Engine Power:50HP
Certification:CE, ISO9001: 2000
Condition:New
Color:Yellow
Compact Structure, Maneuverable Movement:Suitable for Narrow Space Operation
Export Markets:Global
Trademark:super monkey
Packing:Nude
Origin:Taian, Shandong
HS Code:84295100
Production Capacity:50sets/Year
Standard:
1.Open cabin with mechanical control system
2.USA hydraulic system
3.Double accelerograph control
4.Hydraulic brake
5.Chinese diesel engine
| Rated Operating Capacity | 700 | |
| Tipping load(Kg) | 1400 | |
| Bucket Capacity(m3) | 0.4 | |
| Lifting force(kg) | 1950 | |
| Hydraulic Pump Flow(L/min) | 75 | |
| Engine power(HP) | 50 | |
| Weight(Kg) | 3100 | |
| Max. Travel Speed(km/h) | 12 | |
| Grade ability (° ) | 20 | |
| Tire | 10-16.5 | |
| Fuel hyd. Oil capacity(L) | 65/65 | |
| Dimensions | ||
| A. Height at Maximum Extension | 3980mm | |
| B. Hinge Pin Height | 3080mm | |
| C. Total Height | 2050mm | |
| D. Length with Bucket | 3420mm | |
| E. Length without Bucket | 2640mm | |
| F. Width with Bucket | 1740mm | |
| G. Track Width | 1450mm | |
| H. Wheelbase | 991mm | |
| J. Ground Clearance | 185mm | |
| K. Dumping Angle | 40° | |
| L. Dumping Height | 2380mm | |
| M. Maximum Reach | 750mm | |
