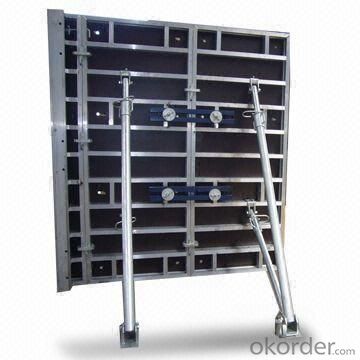

Light Steel Frame Formwork from CNBM China

Product Description:

Formwork system

1. CNBM Universal Panel Formwork System consists of steel frame, plywood panel, push-pull prop, scaffold bracket, alignment coupler, compensation waler, tie rod, lifting hook, etc.

2. Plywood panels could be Wisa -form or homemade plywood with high quality. The steel frames therein are made of special cold roll-forming steel, no waler, with the weight of 64kg/m2 so as to easy to carry.

3. The connection between panels adopts alignment coupler rather than those of bolts or ‘‘U’’ clips which are low efficient and complicated so that it greatly improves the working efficiency.

4. Compensation water strengthens its integrate rigidity at panel connection location.

5. High turnover, easy operation, reasonable load, convenient storage and transportation, low aggregate costs.

6. CNBM Universal Panel Formwork System completely makes the formwork implementation, mechanization, and standardization come true, in other words, an ordinary tool, for example a hammer, is nough to finish the erection work efficiently.

Slab Forms Products

1. Quick Info

a. Model:   Slab Formwork (pure steel, electrophoretic coated)

b. Application:  used together with plywood for concrete form.

d. Load Capacity:    3500kg per s.q.m.(whole system)

e. Installation:   A group of 4 workers can erect 300s.q.m in 8 hours.
