Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 set
Supply Capability:400000 set/month
Range Introduction
By maximizing energy savings and providing uniform and comfortable white light, ZD902 18W/36W series are perfectly adapted to illuminate public spaces in cities such as foot and cycle paths, urban and residential streets, parking lots, rural road and courtyard.
The performance, energy savings, and uniformity of these luminaries allow them to be a one to one replacement for standard HID luminaries. With 12v/24v DC interface, they are also applicable to be integrated into solar lighting system.
Features
*Excellent uniformity and target efficacy.
*Energy saving and maintenance free.
*Long lifetime of 35000 hours.
*Incorporates the latest LED technology.
*Solar lighting system interface available.
*Luminairies is rugged made by low copper aluminum with weathertight LED driver compartments and high performance heat sinks..
*Patented all-in-one heat dissipation technology.
*Slim, low profile, minimizing wind load requirements.
Sepcification

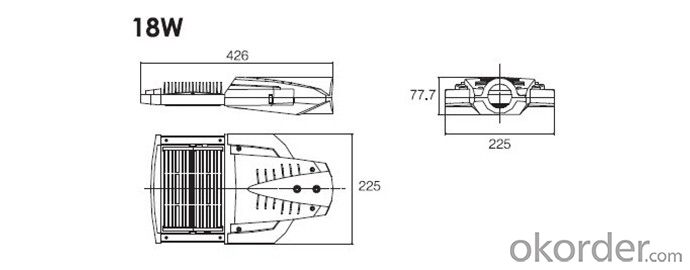

| Model | LED source brand | Voltage | System Watts | Luminaire Efficacy | Luminous flux | CCT | PF | Color Rendering | Beam Angle | Lifetime | Luminaire Dimension |
| V | W | Lm/W | lm | K | ° | hr | mm | ||||
| SFT-ZD902-1 | CREE XP-G | AC100-240V | 18 | 80 | 1440 | 5700 | 0.95 | 75 | 135°×75° | 50000 | 426×225×77.7 |
| SFT-ZD902G-1 | CREE XP-G | DC12V | 18 | 80 | 1440 | 5700 | 1.00 | 75 | 135°×75° | 50000 | 426×225×77.7 |
| SFT-ZD902-2 | CREE XP-G | AC100-240V | 36 | 80 | 2880 | 5700 | 0.95 | 75 | 135°×75° | 50000 | 528×225×77.7 |
| SFT-ZD902G-2 | CREE XP-G | DC12V | 36 | 80 | 2880 | 5700 | 1.00 | 75 | 135°×75° | 50000 | 528×225×77.7 |
