Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 set
Supply Capability:300000 set/month
LED Street Light High Power ZD910 Series Description
Engineered far energy efficiency and environmental sustainability, LED Street lighting ZD910 series is a versatile, high-performance street lighting solution，designed specifically for street and road way applications.
The ZD910 maximizes energy savings and provides uniform and comfortable white light. Easily retrofitted onto existing mounting systems, it’s simple and affordable to invest in state-of-art technology.
Main Features of LED Street Light High Power ZD910 Series
*Long lifetime
*High uniformity
*Energy saving and maintenance free
*Unique design preserving the character of the street and road way environment
*incorporates the latest LED technology
*Module design & Long lifetime
*Light distribution technology & High uniformity

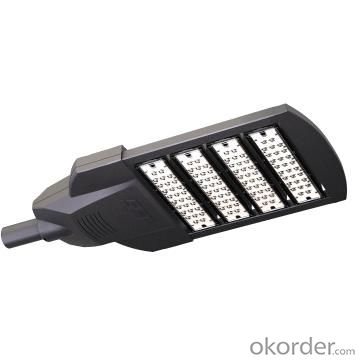

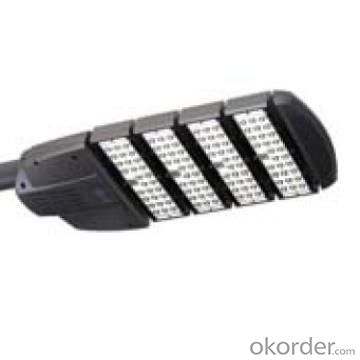

LED Street Light High Power ZD910 Series Images
LED Street Light High Power ZD910 Series Sepcification
| Model | LED source brand | System Watts | Luminaire Efficacy | Luminous flux | CCT | PF | Color Rendering | Beam Angle | Lifetime | Luminaire Dimension |
| W | Lm/W | lm | K | ° | hr | mm | ||||
| SFT-ZD910-2 | CREE XP-G | 70 | 95 | 6650 | 5700 | 0.95 | 75 | 145°×75° | 50000 | 491×310×164 |
| SFT-ZD910-3 | CREE XP-G | 100 | 95 | 9500 | 5700 | 0.95 | 75 | 145°×75° | 50000 | 589×310×164 |
| SFT-ZD910-4 | CREE XP-G | 130 | 95 | 12350 | 5700 | 0.95 | 75 | 145°×75° | 50000 | 687×310×164 |
| SFT-ZD910-5 | CREE XP-G | 160 | 95 | 15200 | 5700 | 0.95 | 75 | 145°×75° | 50000 | 785×310×164 |
| SFT-ZD910-6 | CREE XP-G | 200 | 95 | 19000 | 5700 | 0.95 | 75 | 145°×75° | 50000 | 883×310×164 |
| SFT-ZD910-7 | CREE XP-G | 230 | 95 | 21800 | 5700 | 0.95 | 75 | 145°×75° | 50000 | 981×310×164 |
| SFT-ZD910-2G | CREE XP-G | 70 | 85 | 5950 | 5700 | 0.95 | 75 | 140°*70° | 50000 | 439×310×163.8 |
| SFT-ZD910-3G | CREE XP-G | 100 | 85 | 8500 | 5700 | 0.95 | 75 | 140°×70° | 50000 | 514×310×163.8 |
| SFT-ZD910-4G | CREE XP-G | 130 | 85 | 11050 | 5700 | 0.95 | 75 | 140°×70° | 50000 | 589×310×163.8 |
| SFT-ZD910-5G | CREE XP-G | 160 | 85 | 13600 | 5700 | 0.95 | 75 | 140°×70° | 50000 | 664×310×163.8 |
| SFT-ZD910-6G | CREE XP-G | 260 | 85 | 17000 | 5700 | 0.95 | 75 | 140°×70° | 50000 | 739×310×163.8 |
| SFT-ZD910-7G | CREE XP-G | 230 | 85 | 19550 | 5700 | 0.95 | 75 | 140°×70° | 50000 | 814×310×163.8 |
FAQ of LED Street Light High Power ZD910 Series
*Why do LEDs have a higher initial cost than conventional light sources?
LEDs are made of electronic components which need to be packaged together to offer long lasting efficient light sources to the end user. Apart from the LED chip itself which has sapphire and gallium in the semiconductor, the process of packaging with materials like ceramic, rare earth phosphors, silicone, solder and gold wire add to the overall cost. White LEDs require further tests for calibration and standardisation.
*What are the economic advantages of using LEDs over conventional light sources?
Although the initial cost of conventional light sources is less than LEDs, they do not take into account the operational and maintenance cost of the lighting system. LEDs, having a longer life , reduce maintenance and lamp replacement cost. This reduces cost of labour to replace lamps and the cost of new lamps at the end of lamp life cycle. LEDs, also consume less energy. Thus the overall cost of a LED system can thus be significantly lower than conventional lighting systems. Most applications with LEDs offer a payback period as low as 3-4 years.
*What are the strategies in the development of LED technology that are helping to reduce the cost of LEDs in the future?
Some of the strategies reducing the cost of LEDs in the future are:
Reduction in the production process.
Simplification and reduction in the number of components.
Introduction of new materials.
