LED STREET LIGHT CNBM30W WITH LIGHT EFFICIENCY 130LM/W

Product Description:

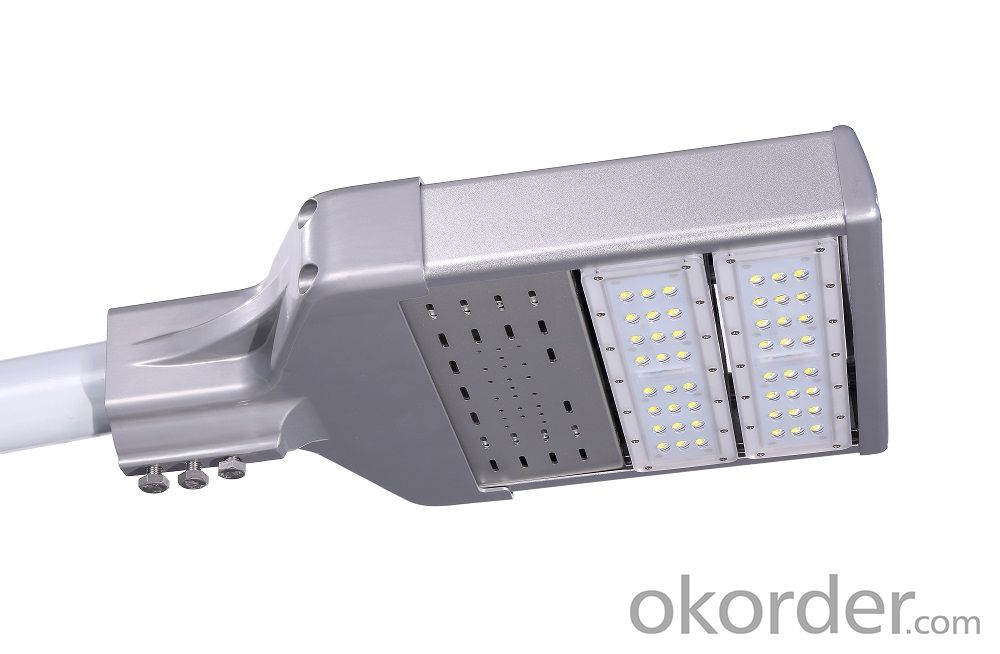

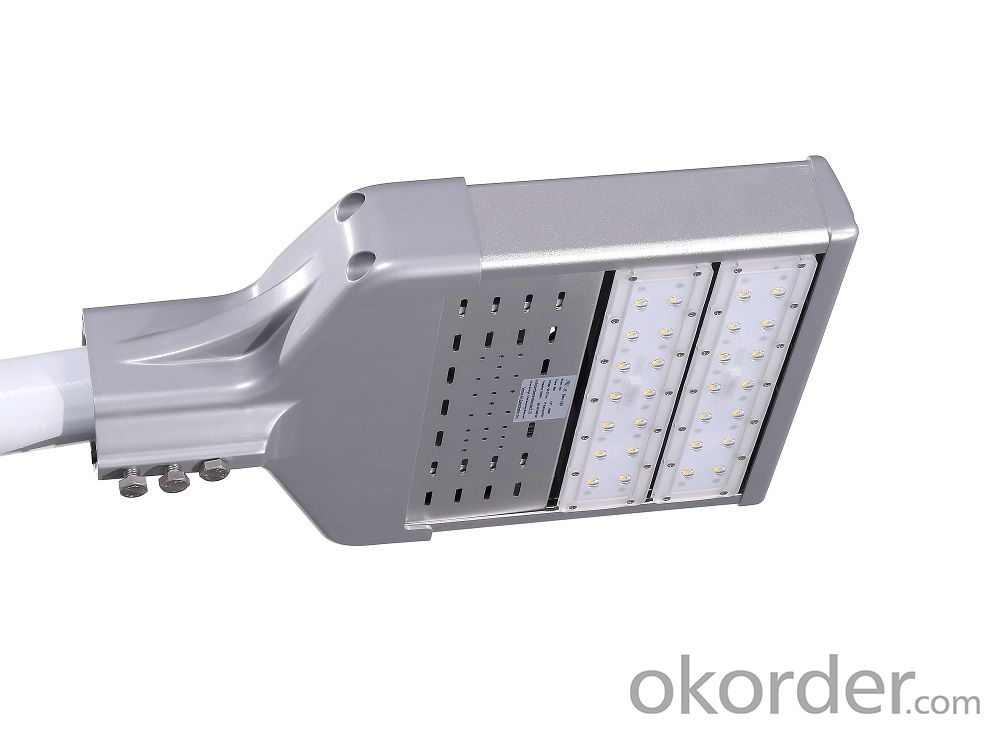

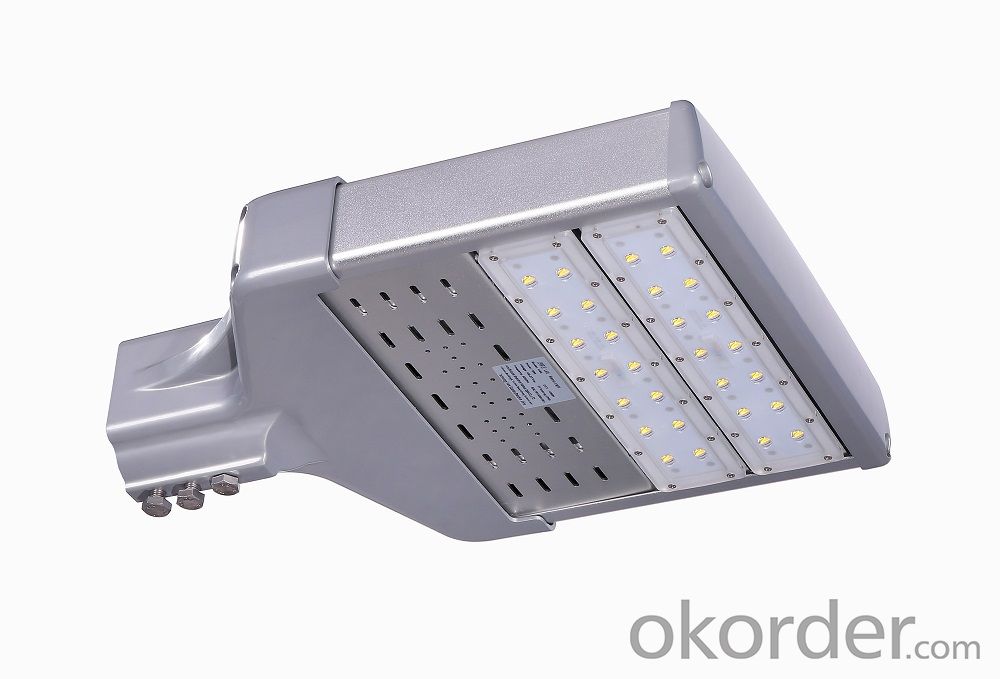

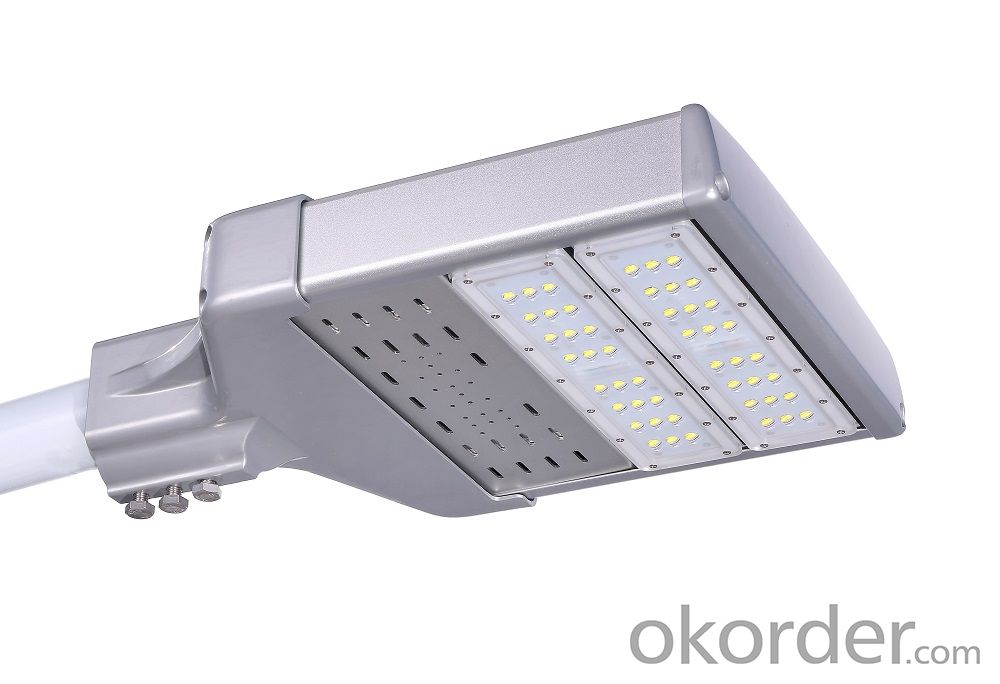

LED Street Light 30W

one new invent of Lighting  module  ,which is perfect for installation on street to replace all the old traditional lighting

Application

LED street light can be applied to highways, pedestrian roadways,streets, parking lot, garden,playground, sport area, campuses etc.

Parameters

Model H30
Power 30W
LED Quantity 24pcs×1.2W
Input Voltage AC 100~277V;50/60HZ
Input current 0.3A(110V),0.15A(220V)
PF ＞0.95
CRI ≥70
Beam angle 140°×60°
CCT 3000K 4000K 6000K
Luminous flux(±10%) 3000 lm 3300 lm 3600 lm
Dimension L405*W328*H108mm
IP rating IP66
Material Aluminum alloy
Anti-corrosion grade  WF2
Working temperature -30 to +50 ℃
Storage temperature -40 to +70 ℃
Working humidity 10% to 95%
Warranty 6 years

Features of Led  Street Light

 1. Module Patented design ,prevents debris build-up;Umodularization has better heat dissipation system,keep the temperature of the LED chips and the driver in the safety range,so ensure the lamps long lifespan and low lumen attenuation.

 2. Use waterproof wire connector,wire connection become easier ,much more convenient ;use a large ring seal for the lens, sealed and reliable;Module and connection design can optimize construction and assembly,allows for easy maintenance,upgrade and SKD for local assembly.

 3. Professional design for the luminous intensity distribution, meet all kinds of lighting requirements,overall spot is rectangular.

 4. Professional design with flexible installation ability, installation angle can be adjusted among -5°,0°,5°,10°,15° without changing the lamp post. The installation position of different angles are visible, convenient for installation and adjusting the lamp’s angle .

FAQ:

Q: What is your Led Street Light  ?
A: The luminaire

Q: What is the Power Factor of your LED Light ?

A :> 0.9

Q: What is the Color Rendex Index ?

A: RA 70,RA80

Q: What is the light efficiency of CNBM Led Panel Light ?

A: 90LM/W upto 140LM/W

Q:Which kind of LED Chips you are using ?

A: BRIDGELUX OR CREE

Q: What is your LED Warranty Terms ?

A: 3 YEARS - 10 Years

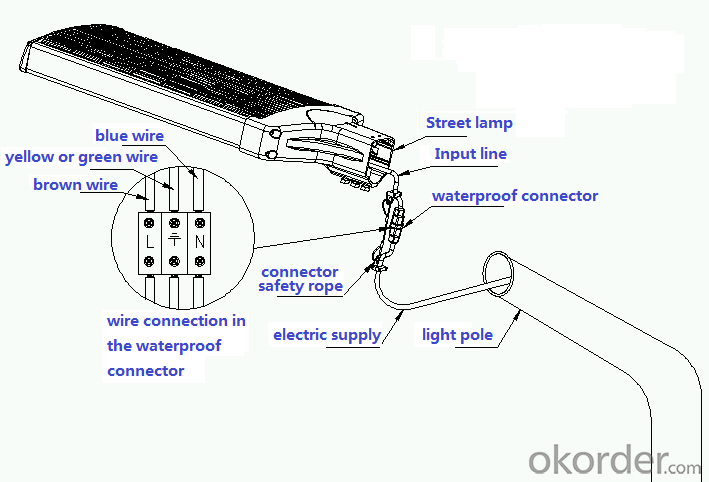

Installation instructions
