1. Structure of LED Street Lights
An elegant new design with this type module, more efficient LED luminous source and high reliable LED driver make this series the most cost-effective LED street light available today.
2. Feature
1) Streamline configuration, graceful appearance combine with the city street environment well;
2) Excellent self-cleaning function;
3) Die-cast aluminium alloy(ADC12) housing guarantees its high soundness;
4) Project rectangular light spot with bat-wing distribution curve flux and keep good light evenness within 40m distant;
5) Excellent heat radiation character reach a temperature raise below 23K;
6) Tool free for maintenance,easy to instal it;
7) Horizontal or vertical installation are avialable;
8) Original America-imported CREE LEDs with excellent luminous efficiency;
9) Superior tempered glass diffuser has a good light transmittance and invariant color;
10) Long life power driver ensures above 50000 hours use-life and has short,open-circuit and over-heat protection.
11) Our products had adopted ISO9001:2000 Quality System Authorities and passed CQC,CE,etc.

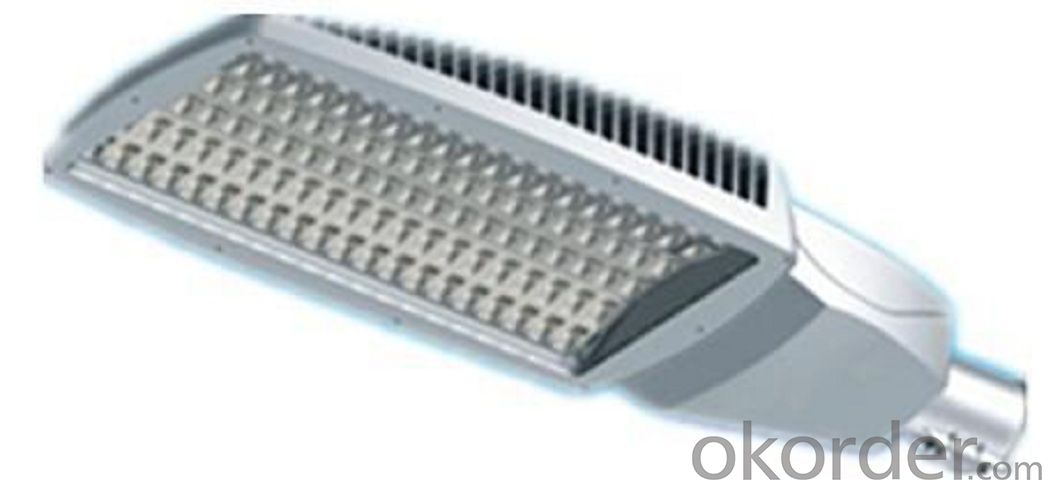

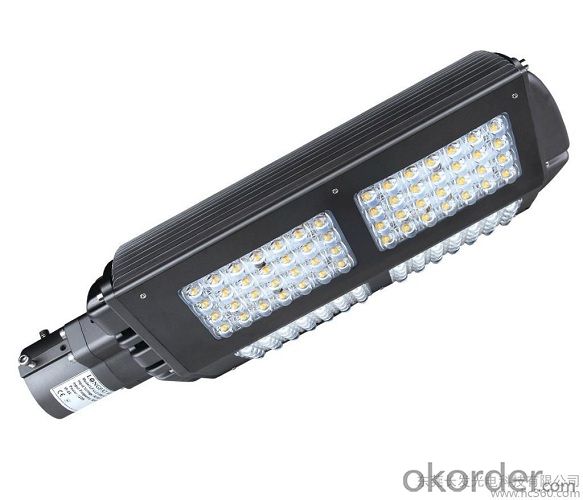

3. Images of LED Street Lights
4. Specification Details
| Light Source: | LED | Item Type: | Street Lights | LED Light Source: | CREE or Epistar |
| Input Voltage(V): | AC85V-265V or DC24V | Lamp Power(W): | 180 | Lamp Luminous Flux(lm): | 18000 |
| Lamp Luminous Efficiency(lm/w): | 100 | CRI (Ra>): | 85 | Color Temperature(CCT): | 2700-6500K |
| Working Temperature(℃): | -30 - +50 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | Aluminum Alloy |
| IP Rating: | IP65 | Certification: | CE, CQC | Warranty(Year): | 3 |
| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | DELOS | Model Number: | DL0706 |
| Patent Housing: | Aluminum alloy | led lighting: | energy saving | lifespan: | >50000Hs |
| Input Voltage: | AC85-265V | THD: | <15%< p=""> | Luminous Efficiency: | > 100lm/W |
| System resistance: | 0.19℃/W | N.G: | 15KG | G.W: | 16KG |
| Dimension: | 800*348*118MM |
5. FAQ
We have organized several common questions for our clients，may help you sincerely：
①How about your company？
A world class manufacturer & supplier of castings forging in carbon steel and alloy steel，is one of the large-scale professional investment casting production bases in China,consisting of both casting foundry forging and machining factory. Annually more than 8000 tons Precision casting and forging parts are exported to markets in Europe,America and Japan. OEM casting and forging service available according to customer’s requirements.
②How to guarantee the quality of the products？
We have established the international advanced quality management system，every link from raw material to final product we have strict quality test；We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.
③How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 7 to 10 working days can be served.
