Loading Port:NINGBO Port
Payment Terms:100%TT
Min Order Qty:300Units unit
Supply Capability:30000 Units Per Month unit/month

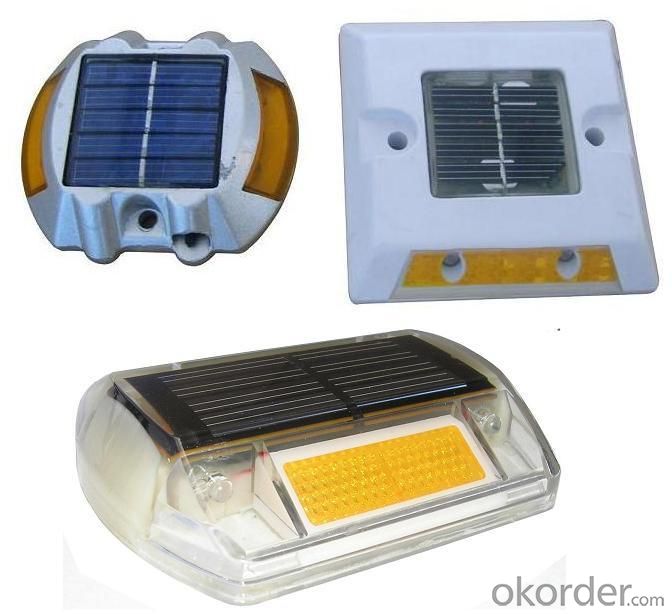

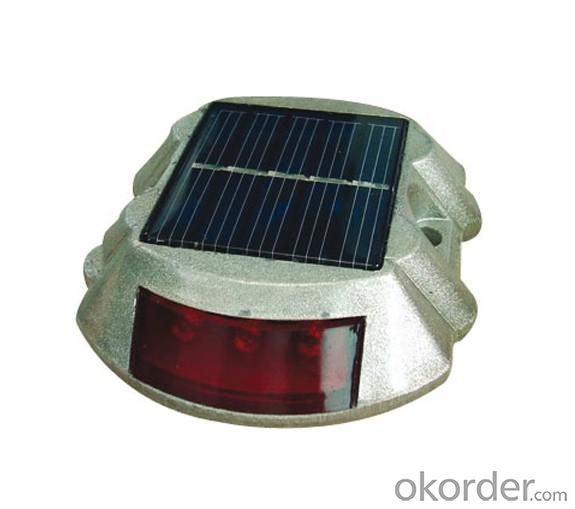

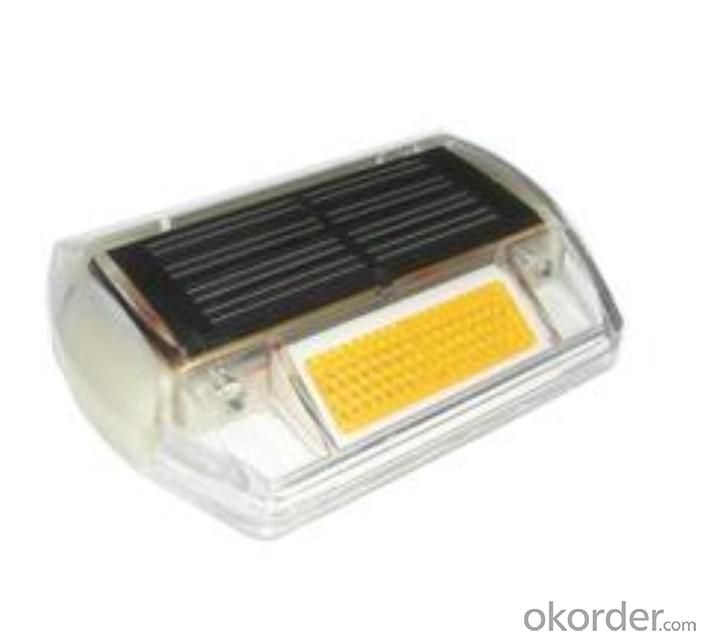

Specifications Of LED Solar Road Stud
Details Of LED Solar Road Stud
Averaging about 100mm square or 100mm diameter and about 40mm thick, units are extremely robust to avoid damage by passing vehicles, and are normally constructed of engineering plastics and polycarbonates. Use of solar road studs reduces the necessity of headlight main beams and the accompanying hazard of dazzling oncoming drivers. They are also more visible in rain and fog conditions where the old type retroreflectors and road markings are problematic. The solar cells charge batteries or capacitors during sunlit hours, over which period the flashing LEDs are turned off by a photoswitch.
Specification | Item | LED Solar Road Stud |
Size | Weight | 750g |
Dimension | Dia.106mm Height:46mm | |
Solar panel | Power | 0.3W |
Voltage | 2.5V | |
Material | Mono-crystalline silicon | |
LED | Type | 5mm high-luminance LED |
Quantity | 3pcs/side | |
Color | Yellow/white/red/blue/green | |
Shell | Upper part | Tempered glass |
Lower part | 1.6 mm sheet iron | |
Power storage | Type | Ni-MH battery |
Power | 1200mAh | |
Voltage | 1.2V | |
Working environment | Temperature | -40 to 75 ℃ |
Waterproof | IP68 | |
Visibility | Over 500m | |
Certification | CE | |
Packing list | G.W. | 20kgs/carton |
Carton size | 34*24*700px | |
Quantity | 24pcs/carton | |
Wrok in dark | 14 hours after a standard luminous intensity day,36hours if the battery is charged fully | |
Used in the highway ,on the both sides,exit of middle,sharp and the highway,clear warning for the drivers and the results are obvious.
Advantage Of LED Solar Road Stud |
No battery solar lights |
Packaging & Delivery Of LED Solar Road Stud | |
Packaging Detai | Packaging Detail：Export Carton and Pallet or under customer request. |
Delivery Detail：10-20days | |
Usage/Application Of LED Solar Road Stud
|
Raised pavement marker(road stud), highway delineator,fencing barrier for highway, traffic sign, traffic board, solar traffic facilities, road machine etc. |
