Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:1000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month

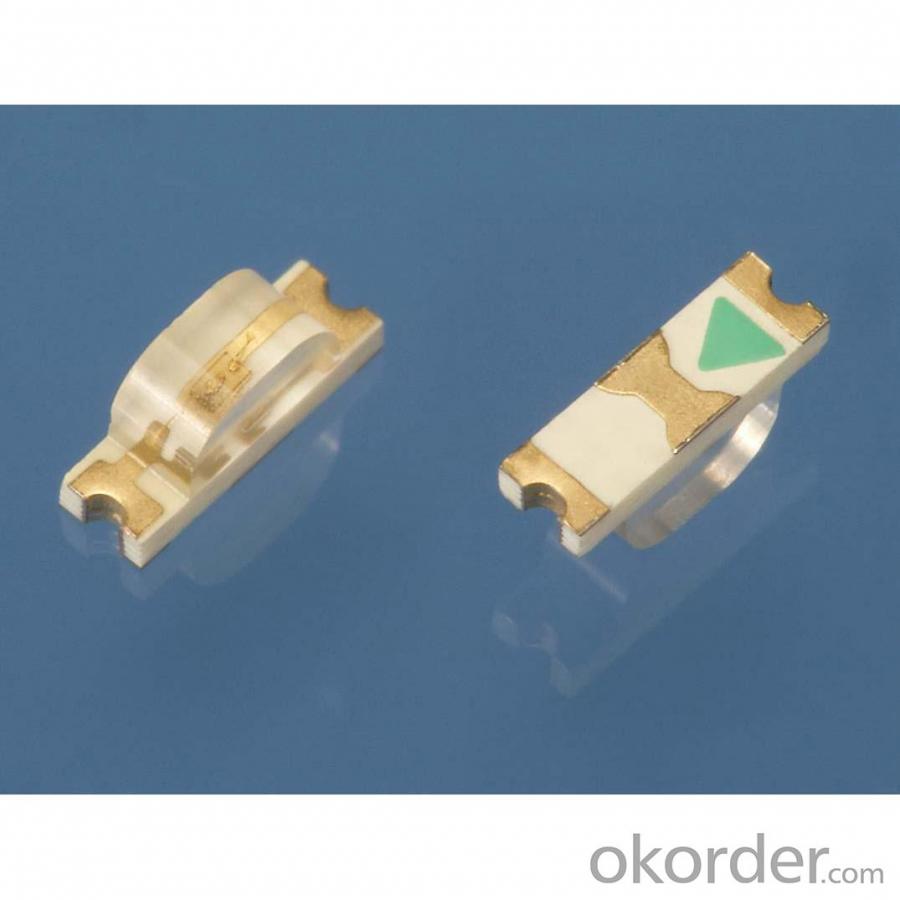

LED SMD 1204 Technical Parameter
Part Number | Emitted Color | WD(nm)/ CCT | Lens Color | Vf(V) IF=@20mA | Iv(mcd) IF=@20mA | Viewing Angle | ||
Typ | Max | Min | Typ | |||||
AL-S1204SDRC/50-19 | Deep Red | 640 |
Water Clear | 1.8 | 2.4 | 20 | 40 | 120 |
AL-S1204SRC/50-19 | Red | 625 | 1.8 | 2.4 | 60 | 120 | 120 | |
AL-S1204SOC/50-19 | Orange | 610 | 1.8 | 2.4 | 60 | 120 | 120 | |
AL-S1204SYGC/50-19 | Yellow Green | 570 | 1.8 | 2.4 | 30 | 50 | 120 | |
AL-S1204SYC/50-19 | Yellow | 589 | 1.8 | 2.4 | 60 | 120 | 120 | |
AL-S1204SUGC/50-19 | Green | 525 | 2.8 | 3.6 | 300 | 600 | 120 | |
AL-S1204UBC/50-19 | Blue | 470 | 2.8 | 3.6 | 60 | 120 | 120 | |
1204 SMD LED Features:
Extremely wide viewing angle
Suitable for all SMT assembly and solder process
RoHs compliant
Package:3,000pcs/reel
1204 SMD LED Applications
Indoor and out door commercial light
LED backlighting and SMD type indicator
LED midule and LED strip light
Decoration light
Auto lamp
Are you looking for more?
Color: Red, Blue, Green, Yellow, White etc.
We also have driver, heat sink and lens for sale.
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-15 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.

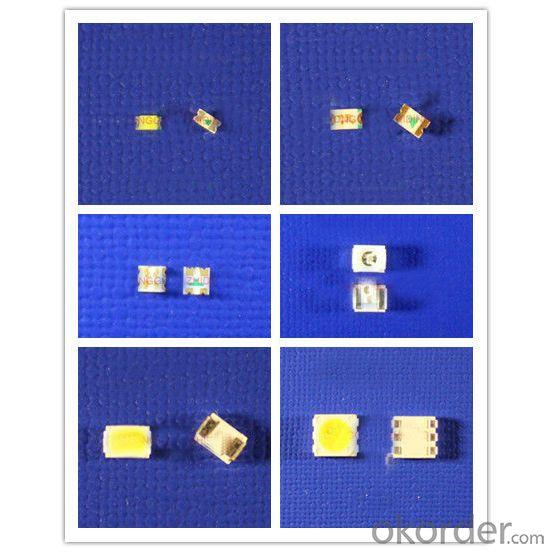

SMD050, 3528, 0603, 1206, 0402, 0805 and so on, please feel free to send us your enquiry.
