Product Description

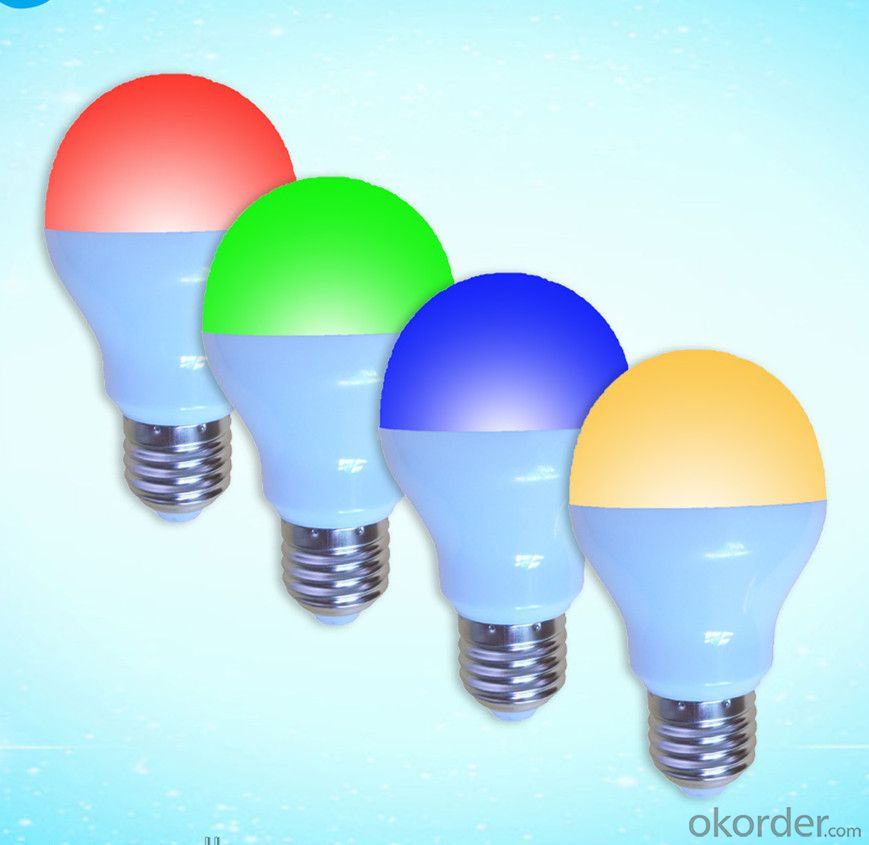

This product is a high-performance replacement type RGB+W LED bulb，using the bluetooth 4.0 technology and the most advanced PWM (pulse-width modulation) control technology. at the same time has the function of illumination of white light. Using LED light source, its power consumption is 20% of the traditional incandescent lamp, the service life is energy-saving lamp more than 10 times. Easy installation and use simple at the same time, security and stability, achieve intelligent illumination lamps and lanterns, both energy saving and environmental protection.
The lamp body is made of aluminum plastic forming, the greatest degree to solve the problem of the high power LED heat dissipation. The lampshade adopts imported polymer nano materials, light transmittance as high as 85% above, homogeneous soft light output. Control ways, using the the bluetooth 4.0 technology, remote control distance is far, strong anti-jamming capability, high speed of air communication and so on. Manipulation of the interface is simple and practical，has rich color and various kinds of dynamic features. For household lighting, scene layout it adds a different exotic atmosphere.
Technical Parameters
Light bulbs parameters:
content | parameter | content | parameter |
Supply Voltage | AC86-265V 50/60HZ | Working temperature | -40℃-60℃ |
Power consumption | 6W | Power factor | >0.65 |
White light color temperature section | WW（2700-3500K）\ CW（6000-6500K） | luminous flux | 540LM |
Color rendering index | ＞80 | Light angle | 140° |
White LED specifications | 5730 （0.5W/each） | RGB LED specifications | 5050（1.5W/each） |
External dimension | Φ68*120mm | The service life | 50000H |
The material | Plastic cover the aluminum +The PC cover | Lamp holder specifications | E27 E26 B22 |
Application places | Household lighting, commercial lighting, KTV, bar, Can also be mounted on a chandelier, floor lamp, desk lamp, etc | ||
Directions for use
●Control method：
1、Before use, need to install bluetooth control software（App-“Triones”） first on the mobile
，Please scan the qr code below to download the software APP：
(Android) (IOS)
Note: the Android system requirements version 4.3 and above with the Android mobile phone, the ios system requirements IOS6.13 and above version with apple mobile phone.
2、Download and install the software, after the installation is complete, open the phone bluetooth function.
3、Controller part : connect load line first, then connect the power cord; to ensure no short circuit between the cables Before power on;
4、Open the control software APP-“Triones” , then Can be realized conveniently to control light equipment. See the following profile control example.
●Mobile phone App interface functions：
1、The list of instructions:：
Lamp device list - Click on the top left corner icon
, choose lamps and lanterns to control equipment. One mobile phone can control four lamp equipment, each light equipment can be separately controlled at the same time; And each one light equipment at the same time can only be manipulated by a mobile phone.。Note: after the open software, need to wait for 5 ~ 20 seconds, the software will automatically scan have electric lights on nearby，In the list of light bar click and manipulating light equipment needed for controlling，Note that has been connected to the symbol changes，As shown in the figure below:
The main interface - Static color adjustment
Application of schematic diagram
