Large Diameter High Frequency Welded Pipe Line

Loading Port:Tianjin

Payment Terms:TT OR LC

Min Order Qty:1 set

Supply Capability:100 set/month

Product Description:

Structure of High Frequency Welded Pipe Line Description

High Class Large Diameter High Frequency Welded Pipe Line is another characteristic product of Huaxincheng. It is one of the lines which under years of research of our compamy and has been designed by combining advanced foreign technelogy and prodution experience.There are High Class petroleum casing pipe,simple fluid pipe and smaller diameter with thicker wall straight line. （API-5L、API-5CT 、BS1387-85 、GB9711 , Diameter：Φ60-610mm , Thickness：1.2-20 mm）.

Main Features of High Frequency Welded Pipe Line Description

Packaging Machine is designed and manufactured by advanced science and technology in the world. It has reliable quality, high efficiency and beautiful shape . it be controled by PLC, Use encode control the length of bag.we have adopted advanced photo electricity track planet differential compensating mode and automatic constant temperature control mechanism, which makes our machine has very fast packaging speed. Moreover, our machine can carry out step less speed adjustment, and automatically finish the processes of bag making , computation, filling, sealing, cutting, counting and printing number on the bag. It can be used for various compound packaging materials.

Specification

序号
No.

Model
型　式

Specification

产品规格(毫米)

Sheet Thickness(mm)
适用板厚(毫米)

CoilWeight(ton)

适用卷重(吨)

Speed(M/min)

剪切速度(米/分)

Capacity(Kw)
装机容量(千瓦)

Area(estimaterM)

机械占地(米2)

1
2
3
4
5
6
7
8
9
10

HG-70
HG-90
HG-100
HG-160
HG-200
HG-300
HG-350
HG-400
HG-500
HG-600

Ф12～Ф76
Ф20～Ф89
Ф25～Ф114
Ф60～Ф165
Ф114～Ф219
Ф165～Ф325
Ф165～Ф355
Ф219～Ф406
Ф219～Ф508
Ф219～Ф610

2～4

2～5

2～5(3～7)

3～7(4～10)

4～8(5～14)

4～10(4～14)

4～12.7(4～16)

4～16

4～19

5
5
5
10
15
20
25
30
30
30

30～90
30～80
30～60
30～50
20～40
10～30
8～25
8～20
8～20
8～20

～800
～900
～1100
～1600
～1800
～3000
～3500
～4000
～4500
～5000

12×100
12×100
12×100
12×100
15×150
18×180
18×180
21×180
21×260
24×280

product name	ZG 50 Straight seam high frequency welded pipe line
Sales status	As a excellent straight seam high frequency welded pipe line manufacturer in China ,we have about 30 year experience to design and producing it. Every year we sales about 300 production line , achieve the Famous brand of Jiangsu province. Good quality and high credibility is why we surviving and leading the market
Basic components	Uncoiler→Shear and butt welding machine→ accumulator→Main machine(Forming, welding, sizing)→Computer-controlled tracking cutting saw→Run-out table.
main technical parameters		ZG50 unit
	Diameter of pipe	φ13-63.5mm
	Wall thickness of pipe	0.6-2.5mm
	Square tube size	10×10-50×50mm
	Square tube thickness	0.6-2.0mm
	Speed of tube welding	40-100M/min
	Power of major motor	132KW
	High frequency power	150KW
Main brand of some parts	Bearing	HRB
	HF welding machine	Red star or Sanyi
	Main drive system	Heng li
	Electric control system	Contor
	Hydraulic elements	Yuken
	Pneumatic elements	Airtac

Images

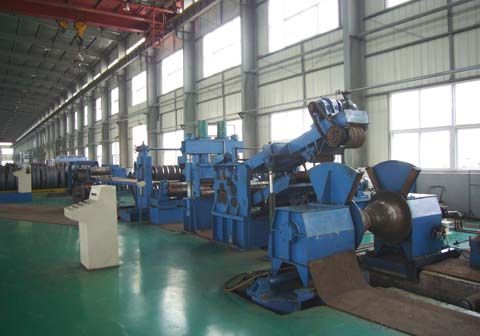

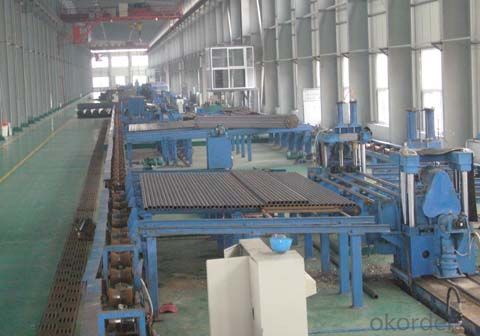

Large Diameter High Frequency Welded Pipe Line

FAQ

How do you guarantee the quality?

We can provided CE certificate if we are required.

What's the delivery time?

around 120days after receive your 30% payment.

Where can we see your machines?

You are welcome to visit our factory and test it by yourself.
