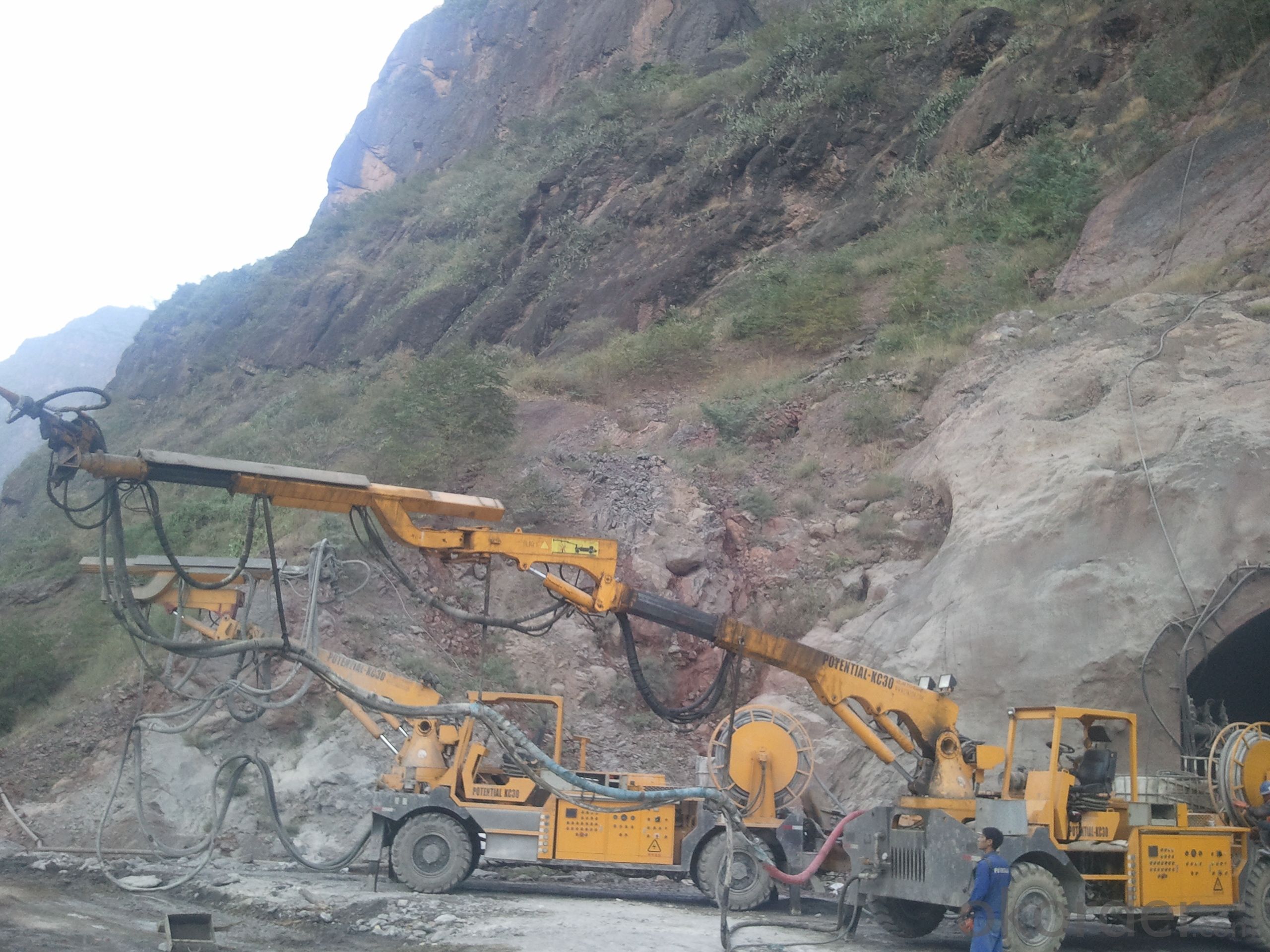

KC30 is a shotcrete machine presenting the most quality reliable concrete spraying system, with intelligent spraying control, high accuracy, wide spray area and minimum spray rejection. It is widely used in concrete spraying projects of large working sections, such as construction projects, mining, tunnel, culvert, subway, hydropower project and underground project.
Technical Parameters
Concrete delivery pipe dimension (outer diameter x pipe thickness) | Φ89x4.5mm |
Concrete pump capacity | 4-28m3/h |
Accelerator delivery capacity | 0-850kg/h |
Accelerator tank | 800L |
Air compressor | 0-0.7MPa |
Max. wind flow | 10.6m3/min |
transmission | 4-wheel drive |
Travelling speed | 0-15km/h |
steering | 4-wheel steering/front wheel steering |
Outside dimension( LxWXH ) | 8000x2925x3200mm |
Power | 380V/50HZ |
Power cable length | 50m |
Electric current | 400A |
Cleaning machine pressure | 20MPa |
