Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1000 PCS/month
JCM906D Hydraulic Crawler Excavator
| JCM906D Hydraulic Crawler Excavator’s Operating Weight is 5.85t, equipped with YANMAR 4TNV94L Engine, with Boom 3m, Arm 1.6m, Bucket 0.22m3, and Blade 1880mm×464mm. Notice: Only after getting the permission of our company that the optional or special parts can be installed on the machine. |
| Engine | Travel System | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | YANMAR 4TNV94L | Travel motors | JEIL, Korea; Variable axial piston motor | |||||||||||
| Type | Four-cylinder in line, natural intake | Support roller quantities | 2×5 | |||||||||||
| Carrier roller quantities | 2×1 | |||||||||||||
| No. of cylinder | 4 | Travel shoes | 2×40 | |||||||||||
| Bore and stroke | 94mm×110mm | Travel speed | 2.49/4.8km/h | |||||||||||
| Displacement | 3.054L | Drawbar pulling force | 46.5kN | |||||||||||
| Power output | 35.5kW/2200rpm | Grade ability | 58% (30°) | |||||||||||
| Ground clearance | 360mm | |||||||||||||
| Hydraulic System | Cab ＆ Control | |||||||||||||

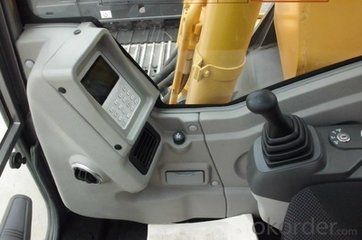

| Pump | REXROTH, Germany | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner | |||||||||||
| Type | variable double–piston pump | |||||||||||||
| Max. discharge flow | 2×60.5L/min | |||||||||||||
| Max. discharge pressure | ||||||||||||||
| Boom, arm and bucket | 22MPa | Control | Two hand levers and two foot pedals for travel Two hand levers for excavating and swing; Electric rotary-type engine throttle | |||||||||||
| Travel circuit | 22MPa | |||||||||||||
| Swing circuit | 21.5MPa | |||||||||||||
| Control circuit | 4MPa | Boom, Arm ＆ Bucket | ||||||||||||
| Pilot control pump | Gear type | Boom cylinder | 115mm×60mm×720mm | |||||||||||
| Main control valve | Negative flow control | Arm cylinder | 90mm×60mm×877mm | |||||||||||
| Oil cooler | Air cooled type | Bucket cylinder | 85mm×55mm×600mm | |||||||||||
| Swing System | Refilling Capacities＆lubrications | |||||||||||||
| Swing motor | JEIL, Korea | Fuel tank | 110L | |||||||||||
| Swing motor type | Axial-piston motor | Cooling system | 10L | |||||||||||
| Brake | Hydraulic oil released | Engine oil | 12L | |||||||||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 90L Tank oil level | |||||||||||
| Swing speed | 11.5r/min | 130L Hydraulic system | ||||||||||||
| Bucket | ||||||||||||||
| Type | Backhoe bucket | |||||||||||||
| Bucket capacity | 0.22m3 (SAE) | |||||||||||||
| Bucket width | 769mm | |||||||||||||
| Arm Type |  | |||||||||||||
| A | Max. digging depth | 5784mm | ||||||||||||
| B | Max. dumping height | 3986mm | ||||||||||||
| C | Max. digging height | 3858mm | ||||||||||||
| D | Max. vertical digging depth | 3786mm | ||||||||||||
| E | Max. Depth cut for 2440m(8')Level Bottom | 3449mm | ||||||||||||
| F | Max. digging distance | 6195mm | ||||||||||||
| G | Max. digging radius at ground level | 6062mm | ||||||||||||
| H | Min. swing radius of work equipment | 2392mm | ||||||||||||
| Digging Force (ISO6015) Unit: kN | ||||||||||||||
| Arm length | 1600mm | |||||||||||||
| Bucket digging force | 40.7kN | |||||||||||||
| Arm digging force | 30.6kN | |||||||||||||
| Arm Type 1600mm | ||||||||||||||
| A | Overall length | 5851mm | I | Tread | 1990mm | |||||||||
| B | Ground contact length (Transportation) | 3320mm | J | Track length | 2569mm | |||||||||
| C | Overall height(to top of boom) | 1932mm | K | Track gauge | 1480mm | |||||||||
| D | Overall width | 1880mm | L | Track width | 1880mm | |||||||||
| E | Overall height(to top of cab) | 2621mm | M | Shoe width | 400mm | |||||||||
| F | Counter weight ground clearance | 708mm | O | Bonnet height | 1633mm | |||||||||
| G | Ground clearance | 360mm | P | Revolving frame width | 1780mm | |||||||||
| H | Tail swing radius | 1655mm | Q | Distance from swivel center to tail | 1655mm | |||||||||
 | ||||||||||||||
| Operating Weight and Ground Pressure | ||||||||||||||
| Operating weight includes basic machine (with boom 3m, arm 1.6m, bucket 0.22m3, and blade 1880mm×464mm) | ||||||||||||||
| Shoe width | 400mm | |||||||||||||
| Overall width | 1880mm | |||||||||||||
| Ground pressure | 33KPa | |||||||||||||
| Operating weight | 5850kg | |||||||||||||
