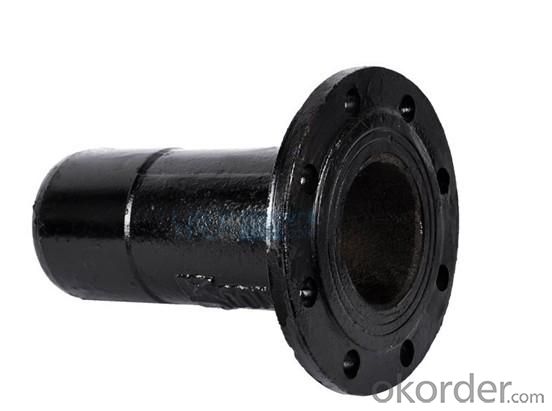

ISO2531 EN545 Ductile Iron Flanged Spigot Made In China

Loading Port:China Main Port

Payment Terms:TT or LC

Min Order Qty:10pcs m.t.

Supply Capability:50000pcs/year m.t./month

Product Description:



Specifications of ISO2531 EN545 Ductile Iron Flanged Spigot Made in China



We are involved in the manufacture and supply of the ductile iron flanged Spigot. We manufacture these with the premium quality raw materials. Our flanged spigots ensure high durability and strength. Our range of Flanged Spigots caters to various industrial requirements. We offer these Flanged Spigots in different sizes and lengths in order to meet the various requirements of our esteemed clients.



1. Material: Ductile iron, grade 500-7/450-12 in accordance with ISO1083
2. Standards: ISO2531, EN545
3. Size range:DN40-2600mm and according to customer's requirement.
4. Working pressure: PN10/PN16/PN25
5. Gaskets:EPDM/SBR/NBR in accordance with BS3416
6. Internal lining: Cement mortar lining; Liquid epoxy resin painting
7. External Coating: Zinc paint+ bitumen painting; Liquid epoxy resin painting; Epoxy applied by FBE
8. Packing: standard Wooden cases or wooden pallets.
9. Producton lead-time:30 days for less than 1000 tons
Remarks:All the ductile iron pipe fittings can be customized.



Applications of ISO2531 EN545 Ductile Iron Flanged Spigot Made in China



The loosing flanges on this kind of fittings can be freely rotated around the pipe axis before jointing, they are more convenient for installation.
Besides, Push-in joint can be assemble by pushing the spigot through the gasket in the socket of the mating component.



Packaging & Delivery of ISO2531 EN545 Ductile Iron Flanged Spigot Made in China

* Plywood pallet
* Steel pallet
* As per customers' requirements
