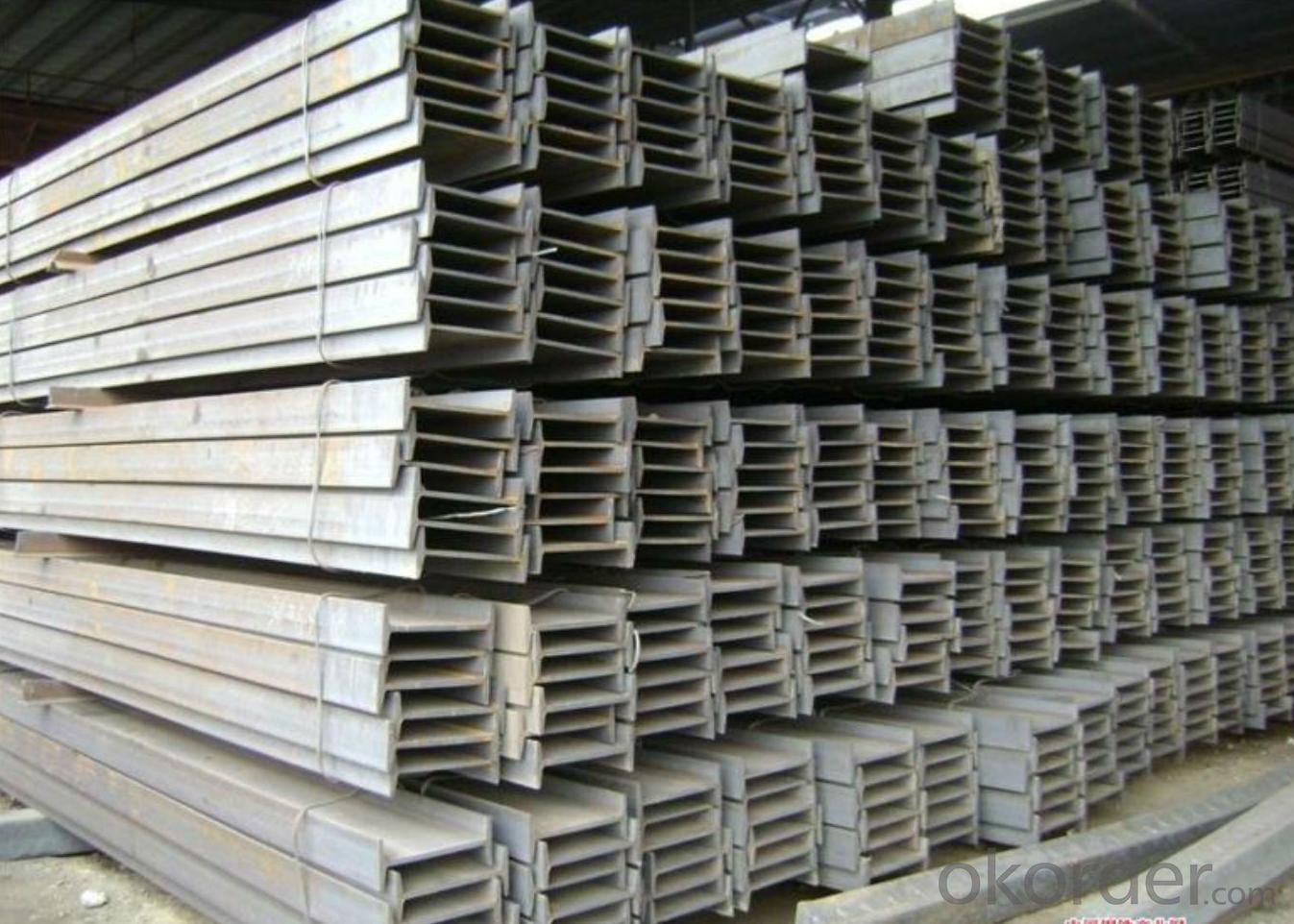

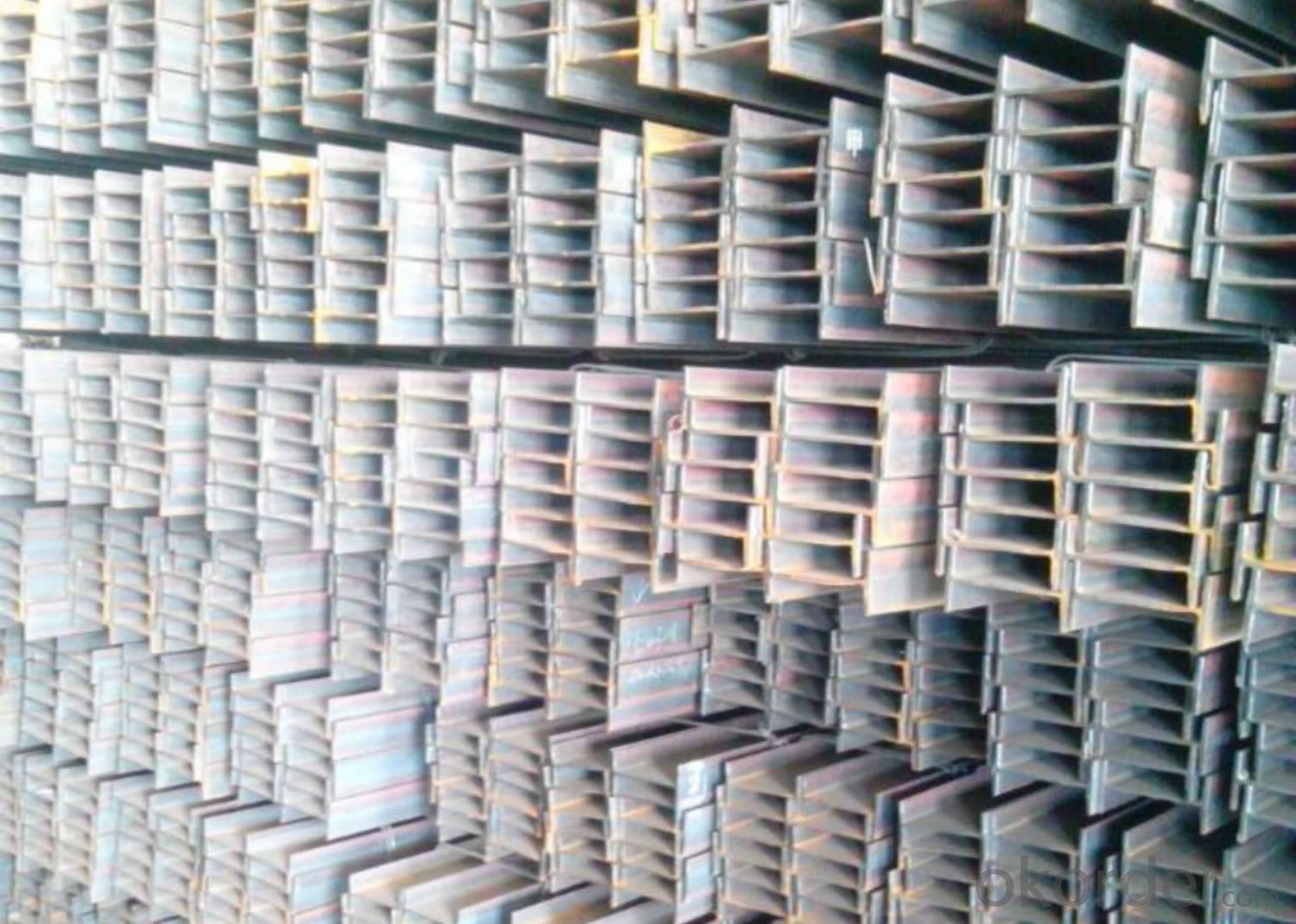

IPEAA Beam

Product Description:

Specifications of IPEAA Beam

1.Standard: EN10025, GB Standard, ASTM

2.Grade: Q235B, Q345B, SS400, ASTM A36, S235JR, S275JR

Alloy No.	Grade	C	Mn	S	P	Si
Q235	B	0.12%-0.20%	0.3%-0.7%	<=0.045%	<=0.045%	<=0.3%

3.Length: 5.8M, 6M, 9M, 12M or as the requriements of the customers

4.Sizes: 80mm-200mm

Dimensions
	h	b	s	t	Mass Kg/m
IPEAA80	80	46	3.20	4.20	4.95
IPEAA100	100	55	3.60	4.50	6.72
IPEAA120	120	64	3.80	4.80	8.36
IPEAA140	140	73	3.80	5.20	10.05
IPEAA160	160	82	4.00	5.60	12.31
IPEAA180	180	91	4.30	6.50	15.40
IPEAA200	200	100	4.50	6.70	17.95

Applications of IPEAA Beam

1. structure construction and electronic tower building construction

2. bridge, trestle,  autos, brackets, machinery

3.It is widely used in various building structures and engineering structures such as roof beams, bridges, transmission towers, hoisting machinery and transport machinery, ships, industrial furnaces, reaction tower, container frame and warehouse etc.

Package & Delivery Terms of IPEAA Beam

1. Packing: it is nude packed in bundles by steel wire rod

2. Bundle weight: not more than 3.5MT for bulk vessel; less than 3 MT for container load

3. Marks:

Color marking: There will be color marking on both end of the bundle for the cargo delivered by bulk vessel. That makes it easily to distinguish at the destination port.

Tag mark: there will be tag mark tied up on the bundles. The information usually including supplier logo and name, product name, made in China, shipping marks and other information request by the customer.

If loading by container the marking is not needed, but we will prepare it as customer request.

4. All the IPEAA Beams will be delivered to the port of Tianjin within 45 days after receiving the Original L/C at sight or the advance payment by T/T.

5. Transportation: the goods are delivered by truck from mill to loading port, the maximum quantity can be loaded is around 40MTs by each truck. If the order quantity cannot reach the full truck loaded, the transportation cost per ton will be little higher than full load.

Production Flow of IPEAA Beam

Material prepare (billet) —heat up—rough rolling—precision rolling—cooling—packing—storage and transportation
