75W 120W Led Street Lights with UL CUL CE ROHS Certifications
Product Pictures
Technical Drawings

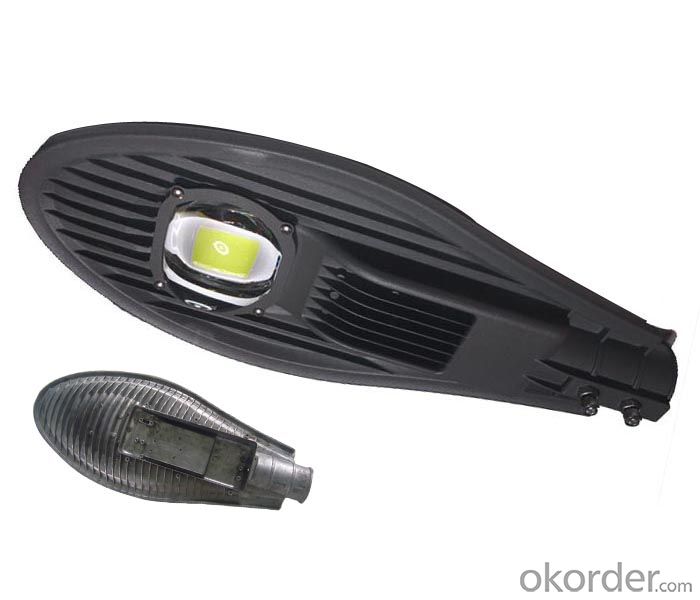

COB LED Street Light
Power:30W,50W,80W,100W,120W,150W,180W
1. Lumen efficacy: 100lm/w.
2. Optional color temperatures: 5500-6000K/2800-3200K
3. Excellent color rendering index: Ra>75
4. Working environment temp: -40~ 60 c
5. Power factor:≥0.9
6.Shell protection:IP65
7.Material:AL+GL
FEATURES
-- High luminare efficiency, using top quality LED chips, fully automatic sealing equipments,advanced sealing technology
-- Advanced lighting distribution technology, fixture luminaries efficiency up to above 90%
-- Aluminum alloy housing material, tempered glass lens, strong and durable, great heat dissipation.
-- Explosion-proof, dust-proof and water-proof design makes the lamp can work at the ambient temperature -40°C~60°C,
-- The lifespan is above 50,000 hours
| Model | Voltage | Power | CCT | Lumonous flux | CRI | Temperature | Material | Size |
| LEDCOB-30W003 | 85-265V | 30W | 2700~6500k | 3000lm | ≥75Ra | -40~60°C | AL | 350*138*75 mm |
| LEDCOB-50W003 | 85-265V | 50W | 2700~6500K | 5000lm | ≥75Ra | -40~60°C | AL | 500×215×85mm |
| LEDCOB-80W003 | 85-265V | 80W | 2700~6500K | 8000lm | ≥75Ra | -40~60°C | al | 620×280×90mm |
| LEDCOB-100W003 | 85-265V | 100W | 2700~6500K | 10000lm | ≥75Ra | -40~60°C | AL | 703×280×120mm |
| LEDCOB-120W003 | 85-265V | 120W | 2700~6500K | 12000lm | ≥75Ra | -40~60°C | AL | 703×280×120mm |
| LEDCOB-150W003 | 85-265V | 150W | 2700~6500K | 15000lm | ≥75Ra | -40~60°C | AL | 880×280×120mm |
| LEDCOB-180W003 | 85-265V | 180W | 2700~6500K | 18000lm | ≥75Ra | -40~60°C | AL | 880×280×120mm |
