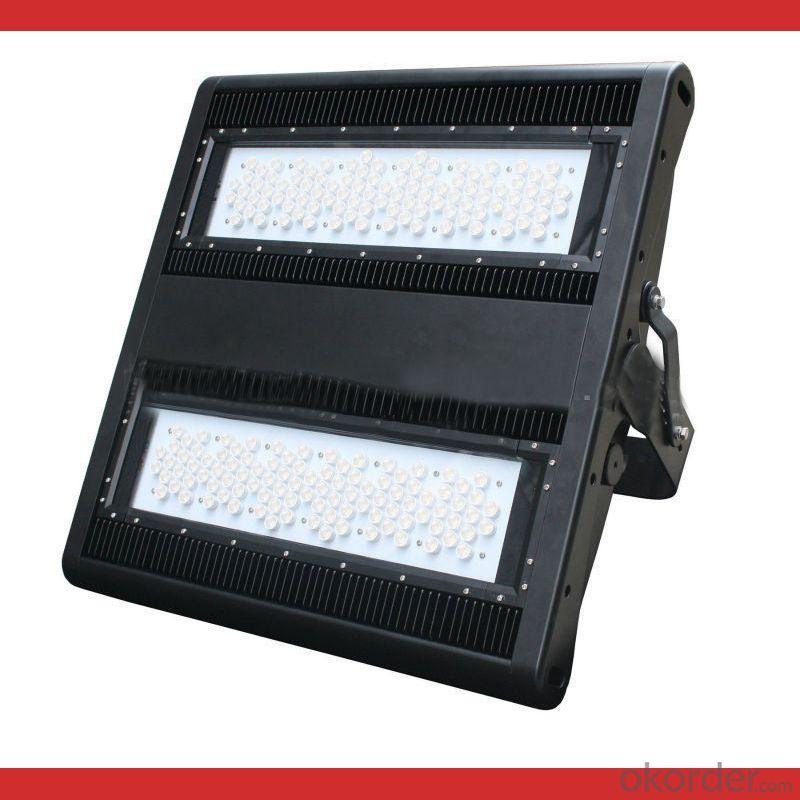

IP65 1000W LED Flood Light for Golf Sport
General Information
• Unique fin aluminium heatsink greatly reduce product weight and guarantee the safety usage,
as well as to avoid the material wastage comparing with conventional die-cast or extrusion heatsinks.
• By increasing the number of fins to enlarge the area of heat dissipation and air flow,
this new heatsink significantly increase the efficiency of thermal conduction with less material usage and more saving on energy. It is the best solution of LED flood lights
Key Features
• Proprietary thermal management design to ensure low LED junction temperature
• Extremely light weight to enhance the safety use and installation
• Full product portfolio up to 600W, with luminous flux of up to 60,000 lm
• LEDs from Philips Lumileds, Cree or Edison, with Meanwell drivers, up to 5 years warranty
• Available in various optical beam profiles, including 15° to 60° round, 65°×135° symmetric rectangular, and 85°×135° asymmetric rectangular

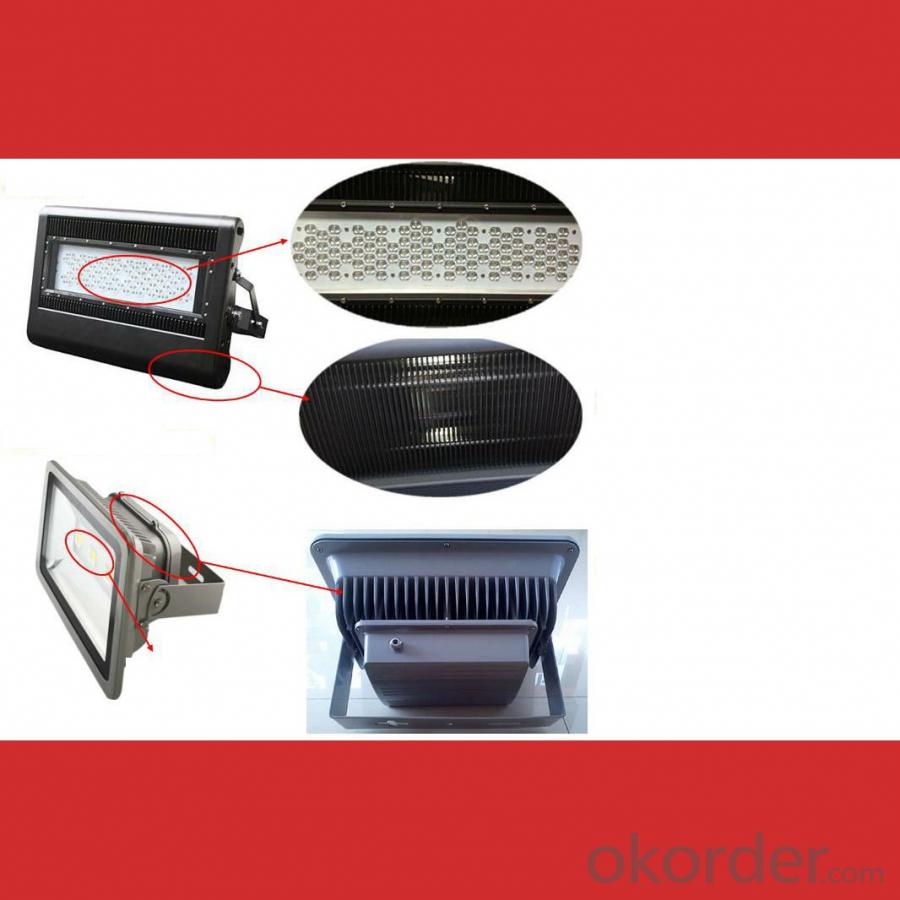

Design Innovation
• Air ventilation design and distributed heat source
- Very effective air flow across the heatsink
- Bring the heat away by natural convection
- Largely spread the heat source and thus lower temperature
• Fold-Fin Heatsink (FFH) Technology
- Formed by Aluminum sheet metals
- Fully automated production
- Resulting in large surface area and less weight
• Flexible Optics and Mounting Design
- Available in various optics (round and rectangular profiles)
- Easy mounting bracket design
Data Sheet
| Input Voltage | 90-305 VAC, 50/60 HZ | |
| LED Light Source | Cree | |
| LED Qty | 500pcs | |
| LED Power | 1000W | |
| Total System Power | 1100W | |
| Led Luminous Efficiency | 110-130 lm /W | |
| Led Initial Luminous Flux | 110000 Lm | |
| Illuminance Uniformity | >0.8 | |
| Color Temperature | 3000K-7000K | |
| Light Distribution | Asymmetric / rectangular | |
| Illuminance Design | LED+Lens | |
| LED Junction Temperature | ≤70°C (@ Ta=25°C) | |
| Working Temperature | -40°C ~ 45°C | |
| Storage Temperature | -40°C ~ +65°C(Best 25°C) | |
| IP Rating | IP65 | |
| Net weight | 39.8 Kg | |
| Life-span | >50000H | |
| Power Cord | 0.75mm2 triple shield wire | |
| Connecting Wire | Brown | L live |
| Blue | N Neutral | |
| Yellow/Green | G Earth | |
| Certificate | CE ; RoHS ; ETL, DLC, UL (Power supply only) | |
| Light Fixture Color | Black | |

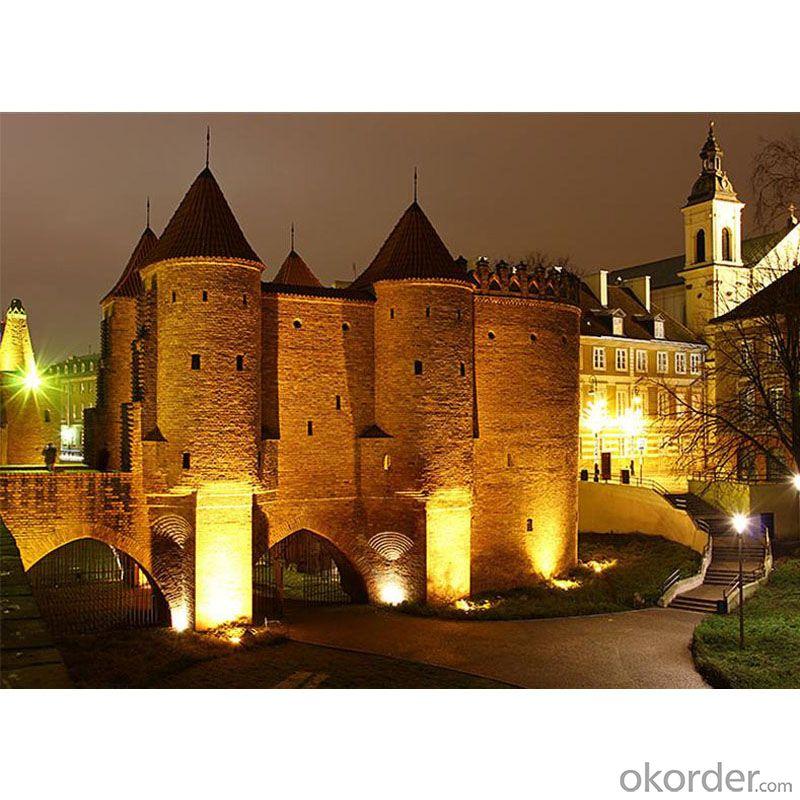

Applications
It's perfectly suitable for outdoor&insoor flood lighting applications,such as football fields, tennis courts,baseball courts,hockey fields,airport,
Stadiums, ports,marine lighting and so on.
Company Information
We are located in the Shenzhen the heart of China's modern industry and growing economy.
This is the international centre for the production of LED lighting products. We design and manufacture complex, performance
based industrial LED Solutions -from concept through post-production. We supply you with various levels of solutions integration
depending upon your needs.
