IP54 VFD 8200B SAJ New Product Produced In China

Product Description:

IP54 VFD 8200B SAJ New Product Produced In China

1. Control characteristics

·Control Mode：Sensorless Vector Control (SVC), V/F control

·Start Torque：0.5Hz 150% (SVC), 0.5Hz 100% (V/F)

·Rotation Speed Ratio: 1:200 (SVC), 1:100 (V/F)

·Precision of Speed Regulation: ±0.5%(SVC), ±1.0%(V/F)

·Overload Capability：

Model G：150% of the rated current for 60 seconds；180% of the rated current for 1 second.

Model P：120% of the rated current for 60 seconds；150% of the rated current for 1 second.

2. I/O Characteristics

·Input Voltage: 220V/380V ± 15%.

·Input Frequency: 50/60Hz，fluctuation range：±5%.

·Output Voltage: 0～rated input voltage

·Output Frequency Range: 0.00～600.00Hz

·Digital Input Terminals: Six (programmable)

·Analog Input Terminals: AVI：0～10V；ACI：0～10V  or  0/4～20mA

·Analog Output:

0.75～2.2kW：FM：0～10V; AM：0/4～20mA

4～400kW：FM：0～10V; AM：0～10V / 0/4-20mA

3. Basic Functions:

·Communication: RS485 with standard MOBUS protocol.

·Fault Protection Function: Over-current, overvoltage, under-voltage, over temperature, lack of phase, etc.

·Simple PLC and PID functions.

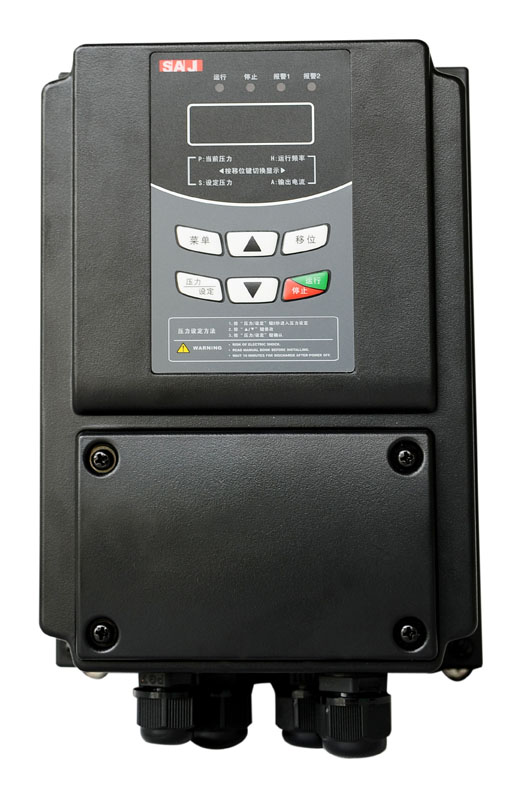

4.product outlook

FAQ:

1 Q:What is the production term of the converter?

   A: 2 weeks

2.Q: what is the normal delivery term?

   A: sea shipping

3.Q:can you offer OEM?

  A: yes we can offer OEM service
