Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:10 kg
Supply Capability:100 kg/month
Quick details for Insulation Alumina Silicate Ceramic Fiber Blanket
| rade: | HA (High Aluminum) | Application: | Liners Of Industrial Furnace,pizza oven | Thickness: | 10-50mm |
| Width: | 610/1220mm | Length: | 3000-14400mm | Chemical Composition: | ZRO2 AL2O3 SIO2,ZRO2+AL2O3+SIO2;99% |
| Ultimate Strength (≥ MPa): | 0.04 | Working Temperature: | 1300C | Fiber Diameter: | 3um |
| Shrinkage (1800 ℉, 3h): | -3 | Thermal Conductivity: | 0.045-0.200 | Density (kg/m³ ): | 128 |
| Model Number: | YXTX-422 | Brand Name: | Place of Origin: | (Mainland) | |
| color: | white | port: | qingdao | packing: | plastic bags inside,woven bags outside |
| working temp: | 1300C | classification temp: | 1400C | specification: | according to your requirments |
| name: | ceramic fiber blanket for boiler insulation |
| Packaging Detail: | plastic bags inside,woven bags outside |
| Delivery Detail: | within 10 days after deposit |

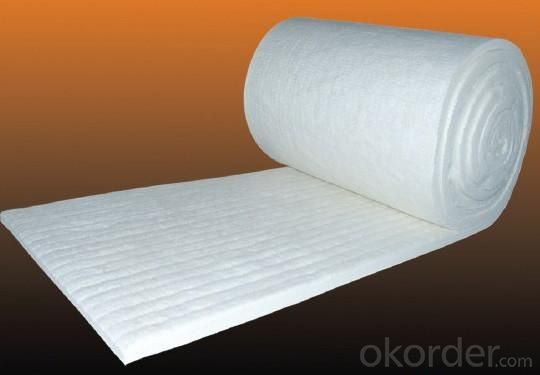

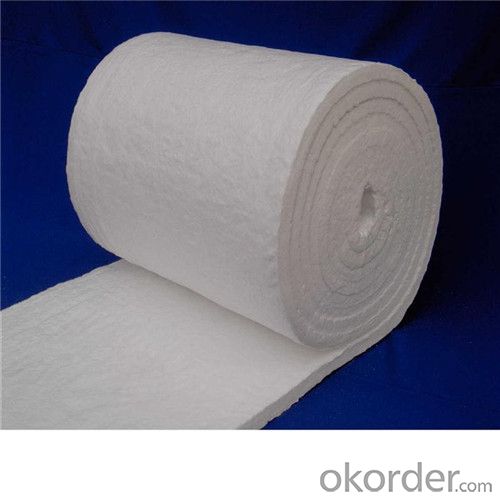

insulation ceramic fiber blanket
1.working temp;1300C
2.density:128kg/m3
3.specification:50mm*610/1220*5m
Product Description
Alumina silicate ceramic fiber blanket
Product Series:
1.1050 Ceramic Fiber Spun Blanket YXTX-112
2.1260 Ceramic Fiber Spun Blanket YXTX-212
3. High Purity Ceramic Fiber Spun Blanket YXTX-312
4.High Aluminum Ceramic Fiber Spun Blanket YXTX-422
5.High Zirconium Ceramic Fiber Spun Blanket YXTX-512
Description:
1.Ceramic Fiber Blanket was adopted continuous processing method,the fiber interweaved shapely after being needled,which of excellent tensile strength. The blanket contains not any bonding agent .
2.Our needled blanket has various density and thickness so that our client can have many choices, which will bring the perfect insulating framework and profit.
3.Ceramic Fiber Blanket can resist the chemical species well, but not the Hydrofluoric Acid, Phosphoric Acid and Strong Base.
4.Ceramic Fiber Blanket have excellent capability of resisting the oil, after being dried it will repossess the thermal characteristic and the physical feature.
Characteristic:
1.Excellent Chemical Stability
2.Excellent Thermal Stability
3.Excellent Tensile Strength
4.Low Thermal Conductivity
5.Low Heat Storage
Application:
1.The material of wall lining and back lining of industrial furnace and the sealing and insulation material of expanded gaps of furnace wall, furnace door, furnace top lid, etc.
2.Insulating material of high temperature
3.Excellent materials to produce module and folded module
Technical Index:
Classification Temperature | 1050 | 1260 | 1400 | |||||||
Code | TXTX-112 | TXTX-212 | TXTX-312 | TXTX-422 | TXTX-512 | |||||
Shrinkage on Heating (%) | 950°C×24h≤-3 | 1000°C×24h≤-3 | 1100°C×24h≤-3 | 1200°C×24h≤-3 | 1350°C×24h≤-3 | |||||
Theoretical Thermal Conductivity (W/m·k) (128kg/m3) | 0.09(400°C) 0.176(800°C | 0.09(400°C) 0.176(800°C | 0.09(400°C) 0.176(800°C) 0.22(1000°C) | 0.132(600°C 0.22(1000°C | 0.76(600°C) 0.22(1000°C) | |||||
Theoretical Density (kg/m3) | 64/96/128 | |||||||||
Specification (mm) | 7200/5000/3600/3000×610/1220×/20/30/40/50 According to your requirements | |||||||||
Tensile Strength (Mpa)(128kg/m3) | 0.08-0.12 | |||||||||
AL2O3 (%) | ≥44 | ≥45 | ≥45 | 52~55 | 38~40 | |||||
ZrO2 | - | 15~17 | ||||||||
AL2O3+SiO2 (%) | ≥96 | ≥97 | ≥99 | ≥99 | — | |||||
AL2O3+SiO2+ZrO2 (%) | — | — | — | — | ≥99 | |||||
Fe2O3(%) | ≤1.2 | ≤1.0 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
K2O+Na2O(%) | ≤0.5 | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
Package | Plastic Bag Inside, Woven Bags Outside | |||||||||
Quality Control System | ISO9001-2000, ISO14001-1996 | |||||||||
