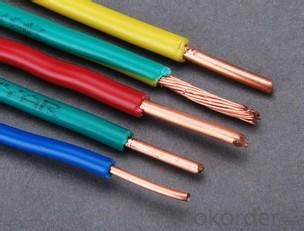

Insulated Solid PVC Copper Wire Used for Construction

Product Description:

Insulated Solid  PVC Copper Wire Used for Construction

Quick Details

• Place of Origin: Henan, China (Mainland)

• Type: InsulatedModel Number: BV,BVVB

• Application: Indoors

• Conductor Material: Copper

• Conductor Type: Solid

• Insulation Material: PVC

Packaging & Delivery

Packaging Details:

Delivery Detail:

Specifications

copper wire
1.450/750V solid copper
2.PVC insulated
3.ISO CCC IEC standard
4.factory direct sales

High quality PVC insulated solid copper wire

 1.Application:

This copper wire is suitable for fixed laying in power plant with AC rated voltage up to and including 450/750V.

2.Specification:

1). The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.

2). The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0oC.
3). The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.

3. Structure size and technical data:
