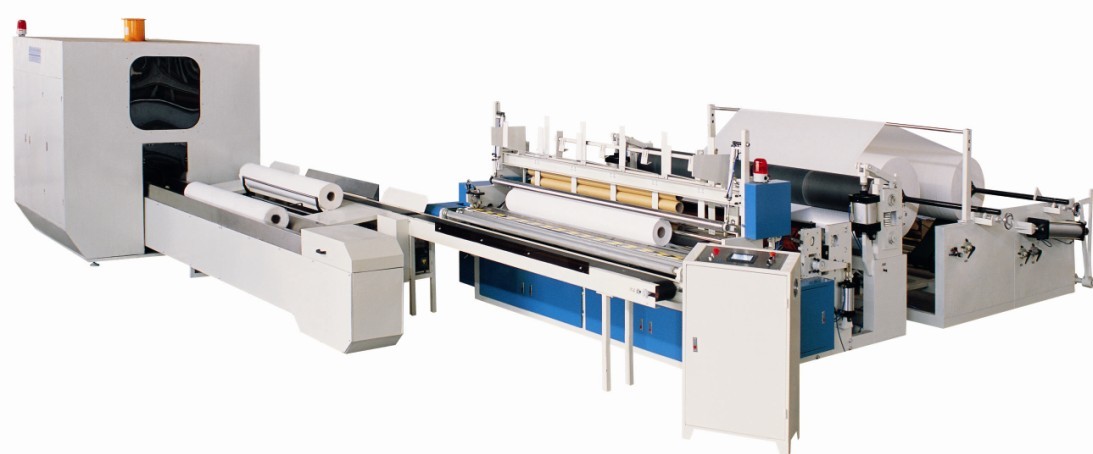

Industrial Roll Small Rolled Paper Production Line

Loading Port:China Main Port

Payment Terms:TT OR LC

Min Order Qty:-

Supply Capability:-

Product Description:

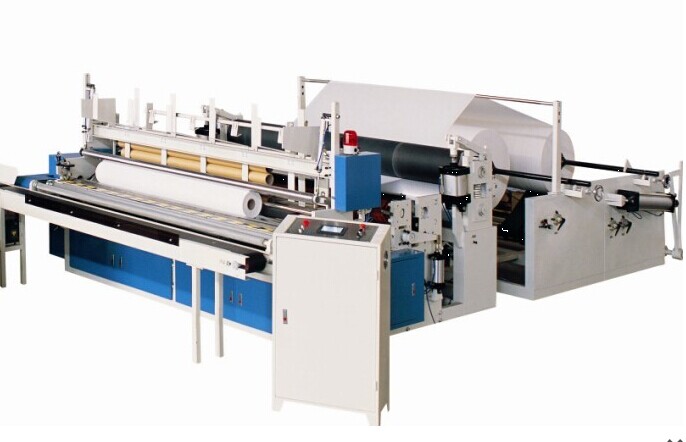

DC-RSM-1092/3000II

Different from our previous machines and similar machines from other companies, our newly designed machines are innovative and improved with the below characteristics.

1. Toilet paper rewinding machine adopts full metal wallboard structure

2. Transmitted by timing belt

3. Speed increase by 20%-30% comparing with old frame type machine

4. Low working noise, durable transmission

5. Air pneumatic controlled perforating unit. Replace the old sawing blades with imported blades, which can wear well with long time. No need to adjust the blades within 1 year of usage. Delicate perforating lines and indicates superior grade quality.

6. High speed log saw machine with nice-designed grinding structure, full improve the sharpening effect. Metal wallboard structure, with improved clamp tool structure. Convenience at changing of clamps of different specifications.

7. High cost performance, obvious advantages among similar products.

Machine Model	1575	2800
Width (mm)	1800	2800
Finished Products Diameter	Φ 90～300mm (Tightness can be adjustable)
Finished Products Inner Diameter	50 -76 mm
Jumbo roll diameter (mm)	Φ 1200MM
Jumbo Roll Inner Diameter	3”，76.2 mm (other sizes can be ordered)
Perforation distance (mm)	4 knife(blade)，90～160mm；2 knife(blade)，180～320mm
Production speed	250 m/min
Parameter set	Man-machine Interface Operation System
Programmable controller	PLC program
Mechanical driving	Driven by stepless speed-regulator to guarantee the precise length of final products.
Jumbo roll stand	2 plies
Air pneumatic system	5 Pa (air-compressor), the minimum pressure 8kg/cm2 pa (customers should be prepared by themselves)
Power	6.5-18KW (Frequency speed-regulate )
Overall size	7 X （2.8-3.8） X 1.8 M(L×W×H)
Embossment	ONE embossment
Embossment down roller	rubber roller
Perforation mode	Air pneumatic separating unit

DC-DH1575/3000II

High-speed Log Saw Machine

Rolled core length	Different in rolled core length, different in machine price.
Finished products diameter	sizes from 150-300mm can be ordered)
Horizontal cutting length	Changeable, Servo control, Tolerance ±1mm
Machine speed	40-70 cuts/min, 1 rolls/cut
Operation speed	60cuts/min, 1 rolls/cut
Function model	Spiral rotating the round blade & Continued Paper Roll Marching
Driving control	Servo motor driving
Knife grinding	Pneumatic grinding wheel, time can be controlled on panel
Round blade outer diameter	1000mm
Clamping tool	Exchangeable (outer diameter of finished core can be designated.)
Finished products specification:	Rolled core outer diameter	150mm-300mm
	Cutting length	50mm-300mm
	Left-over length	25mm-50mm
Power	15KW
Machine size	LXWXH (M) = 9 X 2.8 X 2.2M
Weight of equipment	6．5T

Note: This production line is of high production efficiency. With the production speed of 250m/min, Machine Model 1575 can produce up to 4 tons of finished paper product in one working day (8 hours); while Machine Model 2800 can produce up to 6.5tons.
