HZS75 Concrete Batching Plant / ISO & CE

Loading Port:Qingdao

Payment Terms:TT OR LC

Min Order Qty:1 unit

Supply Capability:5 unit/month

Product Description:

The product is widely used in key projects like various highways, railroads, high-speed railways, airports, ports, bridges, and hydropower stations, as well as commercial concrete mixing station, real estate, and municipal construction. With constantly increasing investment in technological innovation, the company has achieved great achievements and been recognized as “Provincial Enterprise Technology Center” in 2008. The company has 4 research department respectively specializing in mixing, transportation, conveying, and automation.

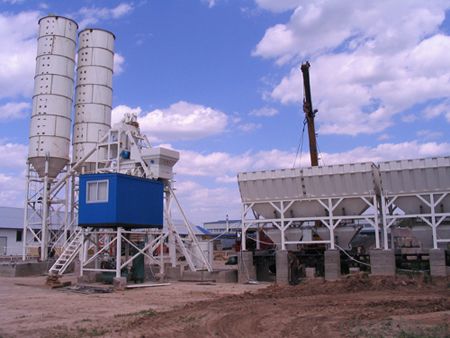

Concrete mixing plant HZS75

Theoretical productivity  75m3/h

Mixer model       JS1500

Mixer nomination capacity    1500L

Mixing largest aggregate       80mm

Mixing motor power 2x30kw

Lifting motor power  22kw

Aggregate batcher    PL2400

Aggregate bin capacity   3x15m3

Aggregate batching capacity 2400L

Aggregate types 3

Powder bin capacity 50/100/200t(选配)

Screw conveyor  50h

Aggregate measuring precision   ±2%

Powder measuring precision ±1%

Water measuring precision    ±1%

Additive measuring precision       ±1%

Discharging height   3.8m

Power    110kw(without screw conveyor)

Weight  约46(without screw conveyor and cement bin)

Dimension   depends on the configuration and equipment layout
