Hydraulic system Excavator SH75XU - 3B

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 unit

Supply Capability:1 unit/month

Specifications

SH75XU-3B
Arm length	1.75 m	2.10 m

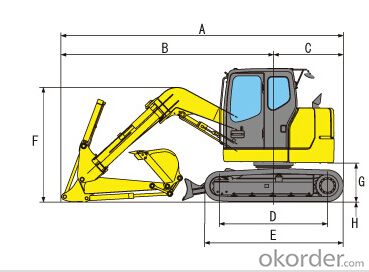

A Overall length	5970 mm	5890 mm
B Length from center of machine (to arm top)	4547 mm	4470 mm
C Length from center of machine (to shoe top)	1423 mm
D Center to center of wheels	2210 mm
E Overall track length	2845 mm
F Overall height	2970 mm	3250 mm
G Clearance height under upper structure	745 mm
H Shoe lug height	20 mm

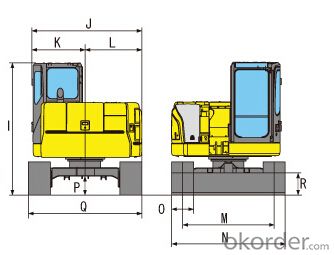

I Cab height	2700 mm
J Upper structure overall width	2225 mm
K Width from center of machine (left side)	1065 mm
L Width from center of machine (right side)	1160 mm
M Track gauge	1870 mm
N Overall track width with 450 mm 600 mm	2320 mm 2470 mm
O Std.Shoe width	450 mm
P Minimum ground clearance	360 mm
Q Width of blade	2320 mm
R Height of blade	450 mm

SH75XU-3B
Base	Arm length	1.75m
	Bucket capacity (ISO heaped)	0.28m³
	Std.operating weight	8260kg
Engine	Make & model	ISUZU AU-4LE2X
	Rated output	40.0kw/2000 min^-1
	Displacement	2179ml(cc)
Hydraulic System	Main pump	2 variable displacement axial piston pumps with regulating system
	Max. pressure	29.4Mpa
	Travel motor	Variable displacement axial piston motor
	Parking brake type	Mechanical disc brake
	Swing motor	Fixed displacement axial piston motor
Performance	Travel speed	5.1/3.3km/h
	Drawbar pull	59kN
	Grade ability	70%<35º>
	Ground pressure	37 kPa
	Swing speed	9.5 min^-1
	Bucket	57 kN
	Arm	39 kN
Others	Fuel tank	100 liter
Others	Hydraulic fluid tank	97 liter
