hydraulic system Excavator SH135X-3B

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 unit

Supply Capability:1 unit/month

Specifications

SH135X-3B
Arm length	2.11 m	2.41 m

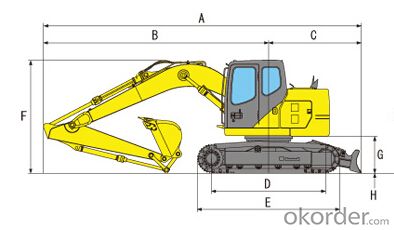

A Overall length	7470 mm	7405 mm
B Length from center of machine (to arm top)	5205 mm	5140 mm
C Length from center of machine (to blade top)	2265 mm
D Center to center of wheels	2785 mm
E Overall track length	3510 mm
F Overall height	2870 mm	2810 mm
G Clearance height under upper structure	880 mm
H Shoe lug height	20 mm
I Cab height	2750 mm

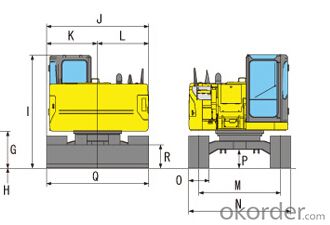

J Upper structure overall width	2415 mm
K Width from center of machine (left side)	1170 mm
L Width from center of machine (right side)	1245 mm
M Track gauge	1990 mm
N Overall track width with 500 mm 600 mm 700 mm	2490 mm 2590 mm 2690 mm
O Std.Shoe width	500 mm
P Minimum ground clearance	435 mm
Q Width of blade	2490 mm
R Height of blade	570 mm

SH135X-3B
Base	Arm length	2.11m
	Bucket capacity (ISO heaped)	0.45m³
	Std.operating weight	14800kg
Engine	Make & model	ISUZU AJ-4JJ1X
	Rated output	70.9kw/2000 min^-1
	Displacement	2999ml(cc)
Hydraulic System	Main pump	2 variable displacement axial piston pumps with regulating system
	Max. pressure	34.3Mpa
	Travel motor	Variable displacement axial piston motor
	Parking brake type	Mechanical disc brake
	Swing motor	Fixed displacement axial piston motor
Performance	Travel speed	5.0/3.1km/h
	Traction force	114kN
	Grade ability	70%<35º>
	Ground pressure	48 kPa
	Swing speed	10.0 min^-1
	Bucket	89 kN
	Arm	60 kN
Others	Fuel tank	165 liter
Others	Hydraulic fluid tank	130 liter
