Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:5 unit/month

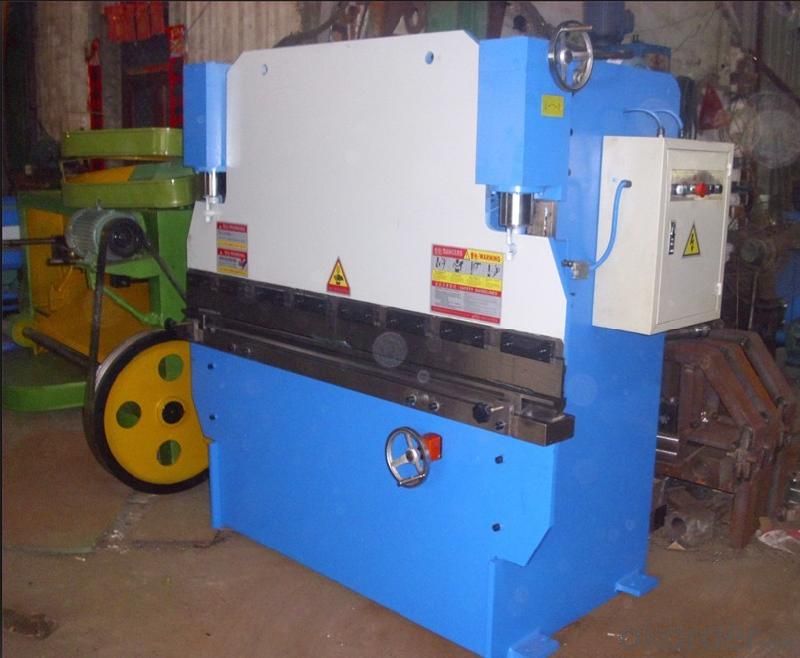

HYDRAULIC PRESS BRAKE MACHINE
WC67Y SERIES WITH HIGH QUALITY STANDARD
HYDRAULIC METAL PLATE BENDING MACHINE
BENDER MACHINE
Product Description
| Nominal force of the ram | 1600KN | ||||
| Table Length | 3200MM | ||||
| Upright column distance | 2520MM | ||||
| Throat depth | 320MM | ||||
| Max. stroke of the ram | 120MM | ||||
| Max.open height between the table and the ram | 450MM | ||||
| Speed for the ram stroke | Empty | 60MM/S | |||
| Working | 6MM/S | ||||
| Return | 40MM/S | ||||
| Main Motor | Model | Y160M-4 | |||
| Power | 11KW | ||||
| Revolving Speed | 1440 R/MIN | ||||
| Dimension | 3300x1560x2600 | ||||
| Max.working pressure of the hydraulic system | 15MPA | ||||
| Weight | 9TON | ||||
Machine’s main components under guaranteed quality or trustable company
1. The motor and electronic system elements are all composed from Siemens or Schneider
2. Dies can be designed under clients’ requirement. The machine will be equipped standard molds the drawing will be sent.And the non-standard molds can be designed if the clients can provide the dies drawing or the workingpieces,we will design. The upper mold can be done in section.
3. We use Germany Schneider Stroke Button with high good durable stability, the stroke will be worked stable or be suspending without any sudden down movement which is serious dangerous.
4. Oil pump can be used from China chengjie enterprise who is used in China’s Aircraft industry.Or we can use Germany ECKERLER enterprises.
5. The seal will be from USA Parker or Japan Valqua company.
6. The hydraulic system and valve will be from USA OMG or Germany BOSCH company.
7. The security protection equipment: The design always care about the worker security when operation both working or checking stationary. We equipped both side magnetic door to avoid any penetration inside. At the back,we will provide 3 Section close door with the middle door moveable and the power will be off when the door open, power on when the door close. The light curtain is useful components to aware any finger in dangerous position.
CNC/NC system and control

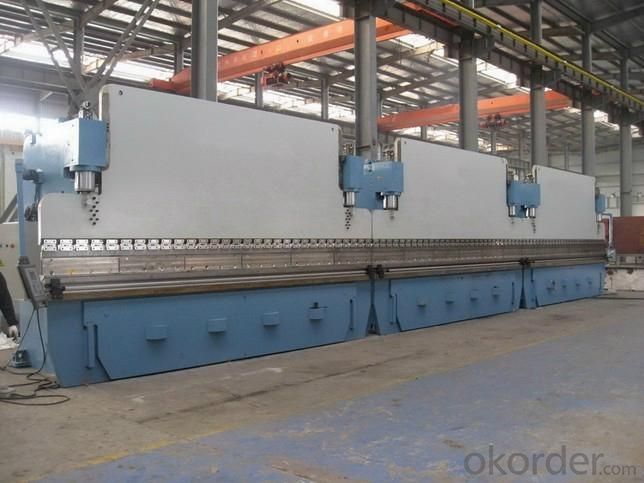

1. SIECC has much experience in CNC Press Brake. Our sales machine including CYBELEC 8 Axis automatic Electronic-Hydraulic synchronization machine. We can design different requirement for axis control with both 3D and touch-screen needs.The CNC including torsion synchronization and also Electro-hydraulic synchronization two kinds and also two linked press brake under electro-hydraulic or both mechanical synchronization.
2. SIECC always can find out the most cost-effective way between so many normal system brand like ESTUN/DELEM/CYBELEC.
