Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:100000000 watt/month
1.Description of the Solar Inverter
2KW hybrid inverter
Pure sine wave output
Microprocessor controlled to guarantee stable charging system
Multiple operations: Grid tie , Off grid , and grid tie with backup
Built-in MPPT solar charger
LCD display panel for comprehensive information
Multiple communication
Green substitution for generators
User adhustable charging current up to 25A
2.Data sheet of the Solar Inverter
| Model | CNBM-H 2KW |
| Rated Power | 3000W |
| Grid-tie operation | |
| PV Input(DC) | |
| Maximum DC power | 3200W |
| Nominal DC voltage / Maximum DC voltage | 360 VDC/500 VDC |
| Start voltage /Initial Feeding Voltage | 116 VDC/150 VDC |
| MPP voltage range | 250 VDC ~ 450 VDC |
| Number of MPP Trackers/ Max input current | 1/1 X13A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output Voltage Range | 184 - 264.5 VAC |
| Nominal Output Current | 13.1A |
| Power Factor | ＞0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 96％ |
| European Efficiency@ Vnominal | 95％ |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Startup Voltage /Auto Restart Voltage | 120 - 140 VAC / 85 VAC |
| Acceptable Input Voltage Range | 170 - 180 VAC |
| Maximum AC Input Current | 25A |
| PV INPUT (DC) | |
| Maximum DC Voltage | 500 VAC |
| MPP Voltage Range | 250 VAC~450 VAC |
| Maximum Input Current | 1/1 X13A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output Frequency | 50HZ/60HZ(auto sensing) |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93％ |
| HYBRID OPERATION | |
| PV INPUT (DC) | |
| Nominal DC voltage / Maximum DC voltage | 360 VDC/ 500 VDC |
| Start voltage /Initial Feeding Voltage | 116 VDC /150VDC |
| MPP voltage range | 250VDC ~450VDC |
| Maximum Input Current | 1/1 X13A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output Voltage Range | 184 ~264.5 VAC |
| Nominal Output Current | 13.1A |
| AC INPUT | |
| AC Startup Voltage /Auto Restart Voltage | 120 - 140 VAC /85 VAC |
| Acceptable Input Voltage Range | 170~ 180 VAC |
| Maximum AC Input Current | 25A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Efficiency (DC to AC) | 93％ |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Charging Current | 25A |
| GENERAL | |
| PHYSICAL | |
Dimension, D X W X H (mm) | 420x415x170 |
| Net Weight (kgs) | 15.5 |
| INTRRF ACE | |
| Communication Port | RS-232/USB |
| Intelligent Slot | Optional SNMP ,Modbus, and AS400 cards available |
| COMPLIANCE | |
| Standard | CE, VDE, 0216-1-1, VDE-AR-N 4105 |
3.Applications of the Solar Inverter
Inverter not only has direct communication transform function, but also has the maximum limit to carry on the function of the solar cell function and system fault maintenance function. In the aggregate, have active operation and shutdown function, maximum power tracking control function, prevent operation function alone (grid system use), the active voltage adjustment functions (grid system use), dc testing functions (grid system use), dc grounding detection function (grid system use)

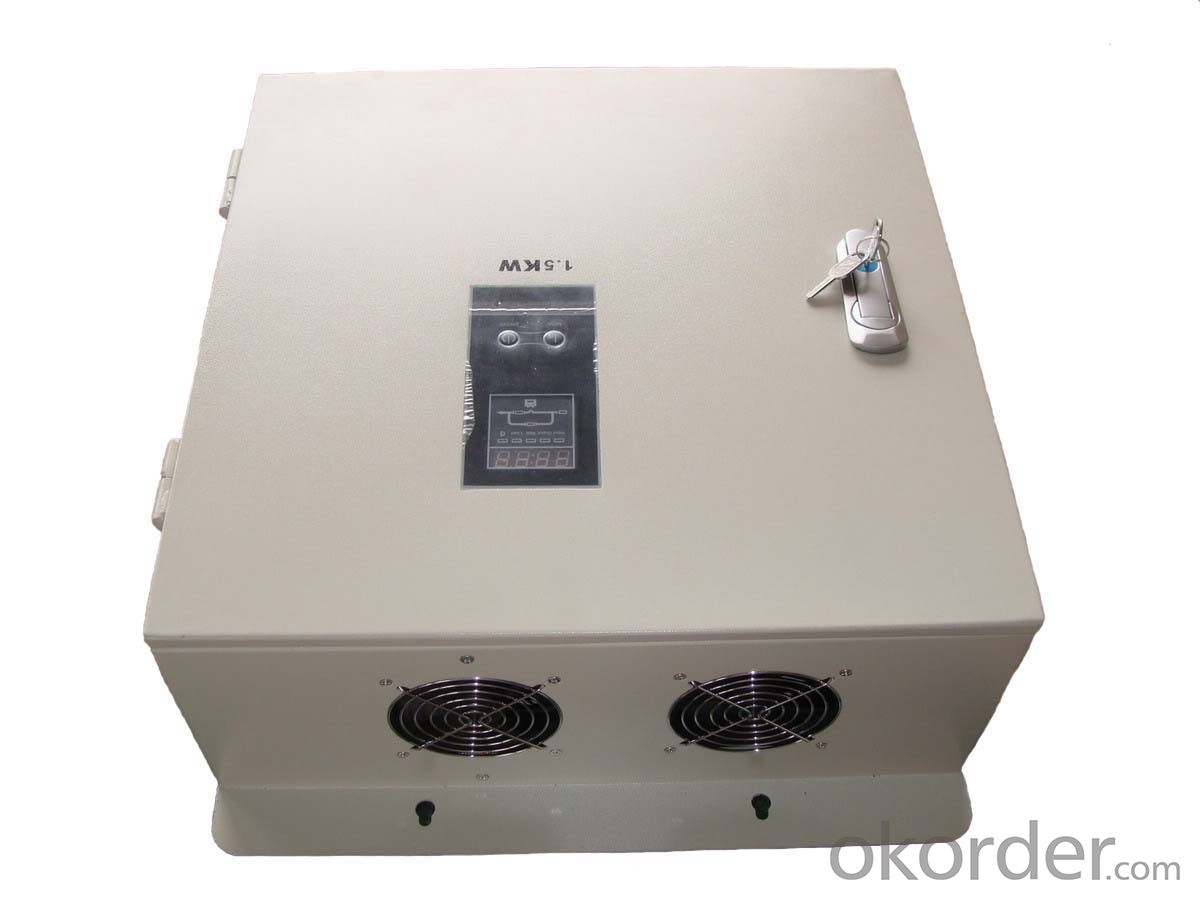

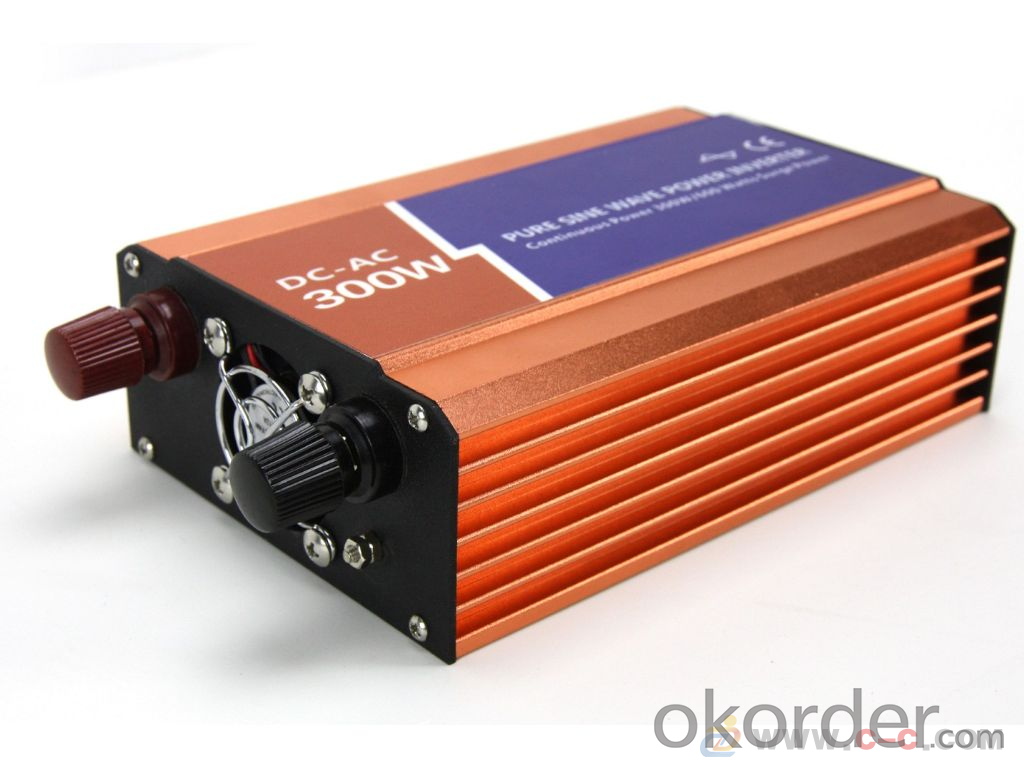

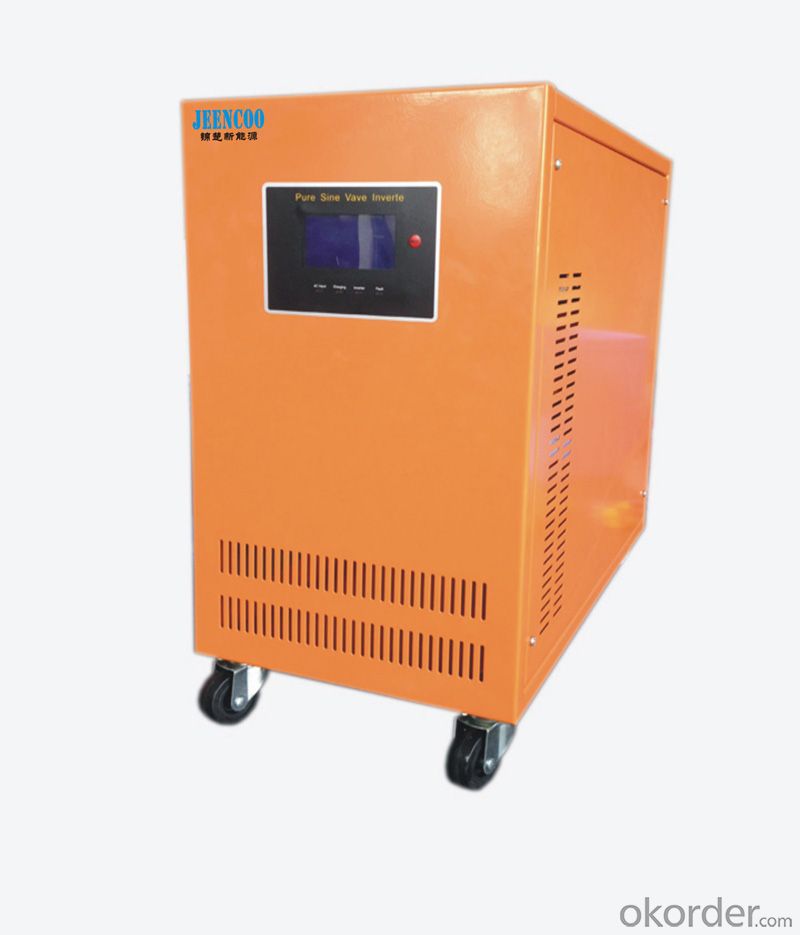

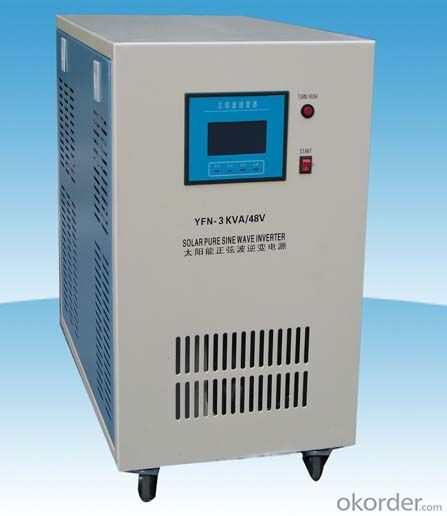

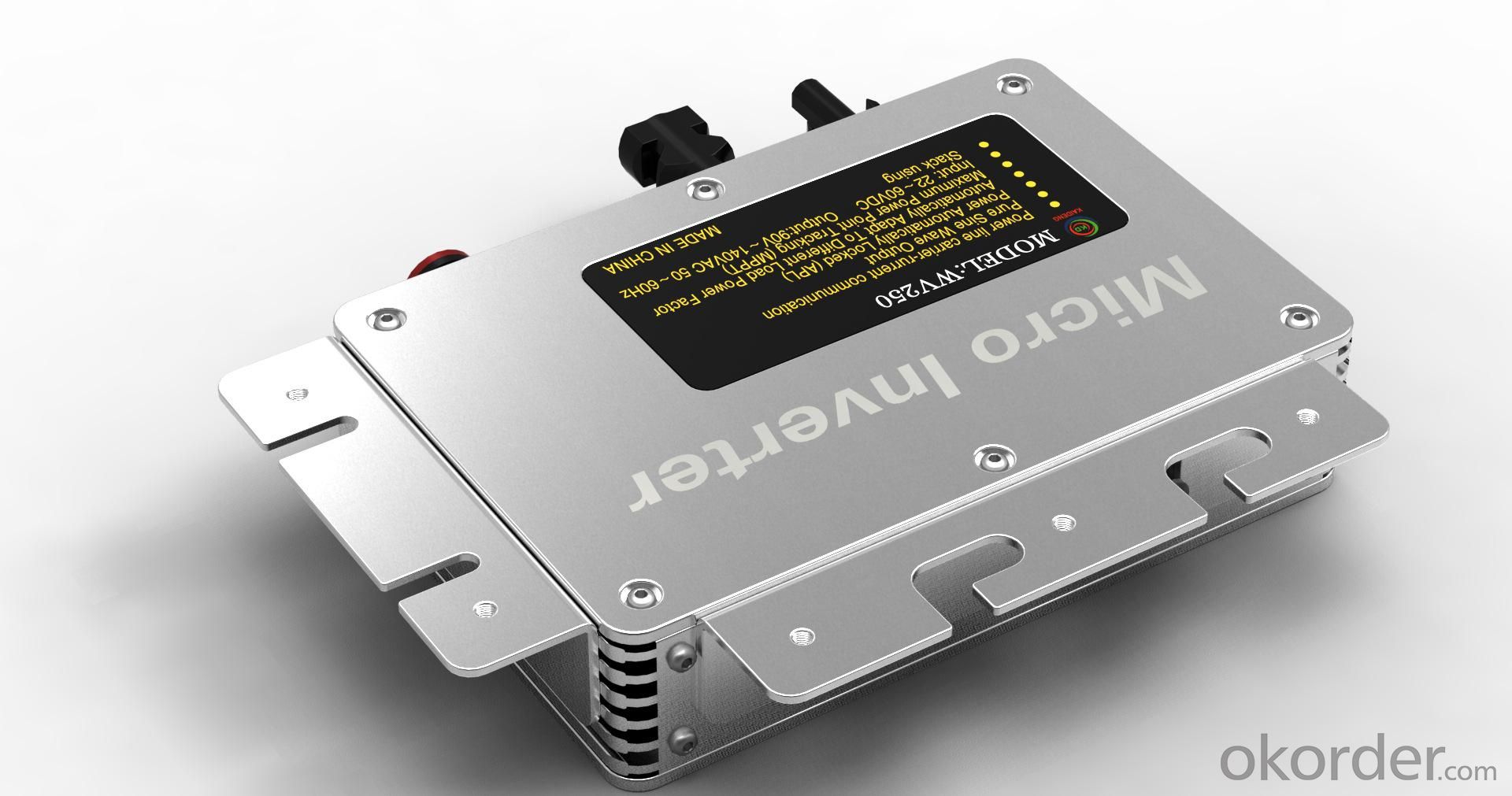

4.IMages of the Solar Inverter
FAQ
Q: Do you have the CE, TUV, UL Certification?
A: We’ve already passed all the tests, and any certificate is available.
Q: Have you ever sold your products to companies in my country?
A: Of course, we have customers in all general PV markets, but I think we should expand our market share along with the market growth.
Q: When did your company set up? You are a new company, how can I believe your quality?
A: We entered into Solar PV industry in 2005, now we have several plants in manufacturing of a-Si and c-Si panels, and our capacity is 220MW per year. Till now we have already passed all the tests by authorized laboratories, e.g. TUV, CE, UL.
Q: Can you help us install the module if we cooperate with you?
A: We haven’t entered into installation sector, but we have the plan in near future.
Q: How do you pack your products?
A: We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
Q: Can you do OEM for us?
A: Yes, we can.
Q: Can we visit your factory?
A: Surely, I will arrange the trip basing on your business schedule.
