Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
BRAND OF CHASSIS: HOWO

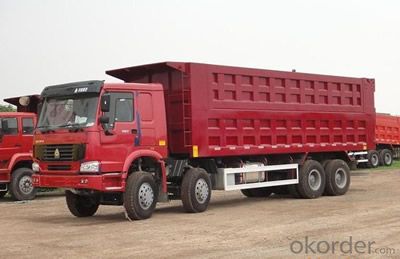

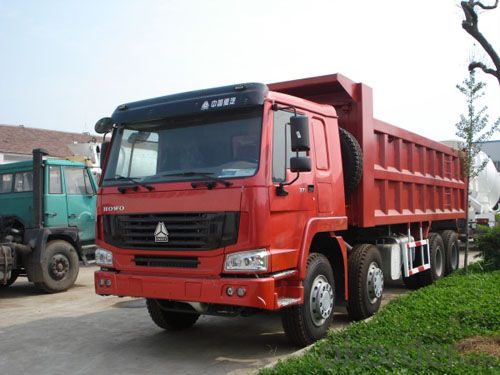

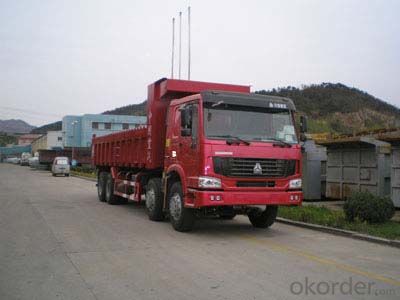

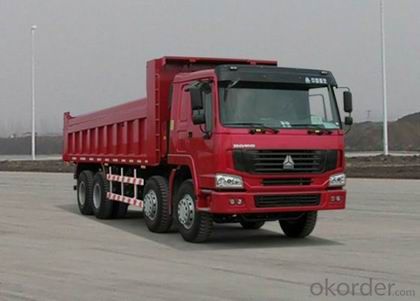

CHASSIS MODEL 1: ZZ3317N3867A1/S Dump Truck
General Configuration : Howo,371HP,8×4,Europe II
Mass Parameters | Total Weight (kg) | 31000 | |
Rated Loading Weight (kg) | 15450 | ||
Size Parameters | Overall Dimensions (mm) | Length | 10745 |
Width | 2496 | ||
Height | 3450 | ||
Distance between Axles (mm) | 1800+3800+1350 | ||
Performance Parameters | Max. Driving Speed (km/h) | 75 | |
Economic Speed (km/h) | 60 | ||
Recommended Configuration | Engine | WD615.69 | |
Gearbox | HW19710 | ||
Rear Axle | AC16 | ||
Oil Tank (L) | 300 | ||
Suspension (front/rear spring) | 10/12 | ||
Tire | 12.00-20 | ||
----
CHASSIS MODEL 2: ZZ3317N4267A1/S Dump Truck
General Configuration : Howo,371HP,8×4,Europe II
Mass Parameters | Total Weight (kg) | 31000 | |
Rated Loading Weight (kg) | 15420 | ||
Size Parameters | Overall Dimensions (mm) | Length | 10825 |
Width | 2496 | ||
Height | 3450 | ||
Distance between Axles (mm) | 1800+4200+1350 | ||
Performance Parameters | Max. Driving Speed (km/h) | 75 | |
Economic Speed (km/h) | 60 | ||
Recommended Configuration | Engine | WD615.69 | |
Gearbox | HW19710 | ||
Rear Axle | AC16 | ||
Oil Tank (L) | 300 | ||
Suspension (front/rear spring) | 10/12 | ||
Tire | 12.00-20 | ||
