BRAND OF CHASSIS: HOWO

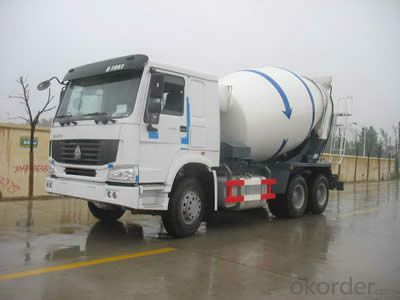

CHASSIS MODEL: ZZ5257GJBN3247A/N Mixer
General Configuration : Howo,336HP,6×4,Europe II,8 Meter Cubic
Mass Parameters | Total Weight (kg) | 25000 | |
Volume (Meter Cubic) | 8 | ||
Size Parameters | Overall Dimensions (mm) | Length | 8204 |
Width | 2496 | ||
Height | 3850 | ||
Distance between Axles (mm) | 3200+1400 | ||
Performance Parameters | Max. Driving Speed (km/h) | 102 | |
Economic Speed (km/h) | 70 | ||
Recommended Configuration | Engine | WD615.89 | |
Gearbox | HW13710 | ||
Rear Axle | HC16 | ||
Oil Tank (L) | 200 | ||
Suspension (front/rear spring) | 10/12 | ||
Tire | 12.00-20 | ||
