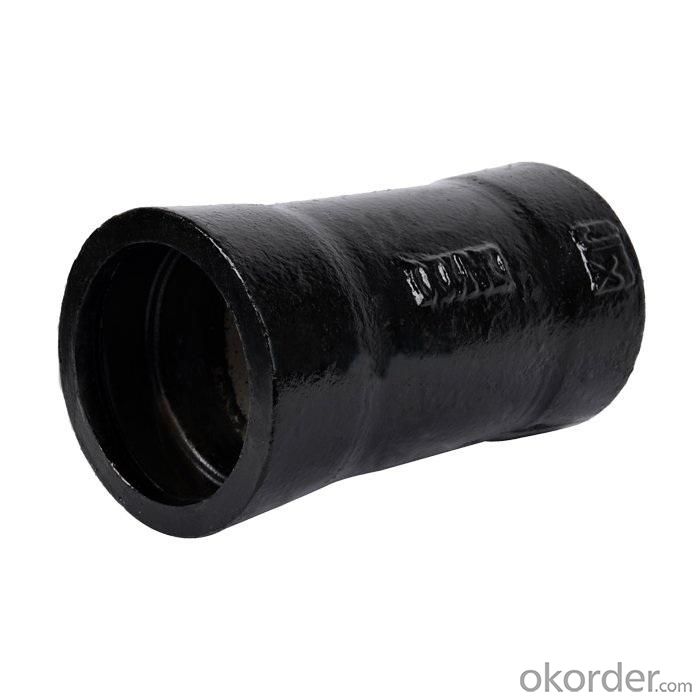

Hot Sale Ductile Iron Collar Of ISO2531

Product Description:

Specifications of Hot Sale Ductile Iron Collar Of ISO2531

1. Material: Ductile Iron GGG500-7
2. Standard:  ISO2531/BS EN545/BS4772
3. Technology: EPC Cast
4. Pressure: PN10, PN16, PN25
5. Size: DN80mm-DN2000mm
6. Surface Treatment Available:
(1) External: Zinc coating: Metallic zinc (for centrifugally cast pipes and zinc rich paint coating for non-centrifugally cast pipes and fittings.Bitumen coating, Epoxy paint brushing; Fusion Bonded Epoxy Coating etc.
(2) Internal: Ordinary cement mortars: Surphase resistance cement; Epoxy paint brushing; Fusion Bonded Epoxy coating etc.
7. Sealing Gasket (Rubber Ring): EPDM, NBR, NBR & Natural Rubber as per ISO4633 / EN681-1
8. Quality Certificates: ISO9001, ISO1400
9.  Product Certificates: Bureau Veritas, SGS, TUV
10.Third Party Inspection: Available

Applications of Hot Sale Ductile Iron Collar Of ISO2531

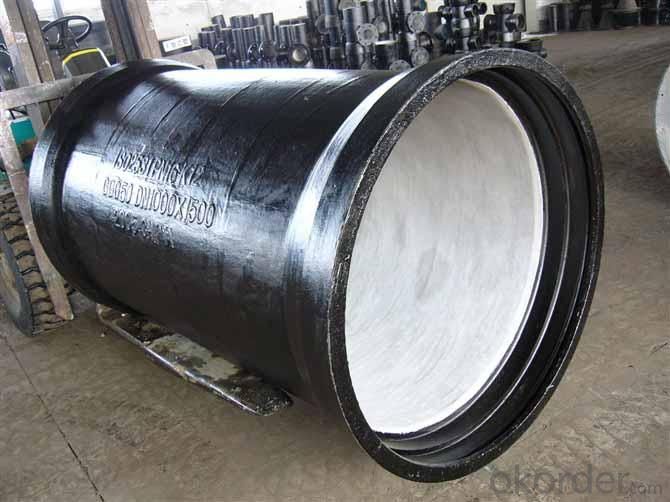

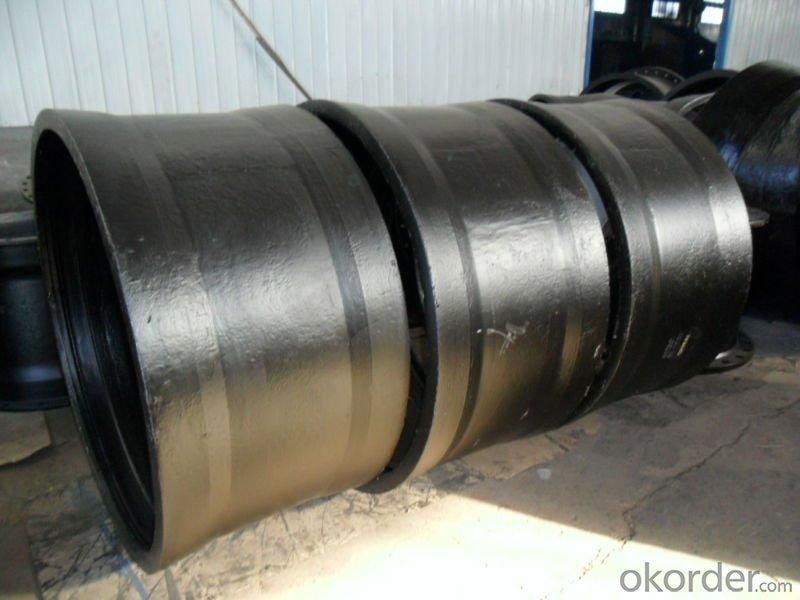

Ductile Iron pipes and fittings have advantages of easy to install, high strength, durability, safety and long service of life. They are currently widely used in pipelines for water transportation and sewerage transportation in the world.

Packaging & Delivery of Hot Sale Ductile Iron Collar Of ISO2531

Packaging Detail: Standard export wooden case, wooden pallets or 100% as per clients' requirements.
Delivery Detail: Depend on the exact quantity.

Production Flow of Double Flanged Duckfoot 90 Degree Bend ISO2531 With Best Price

* Automatics machine lines
* Resin Sand
* Molding Boards
* Green Sand with hand molding
