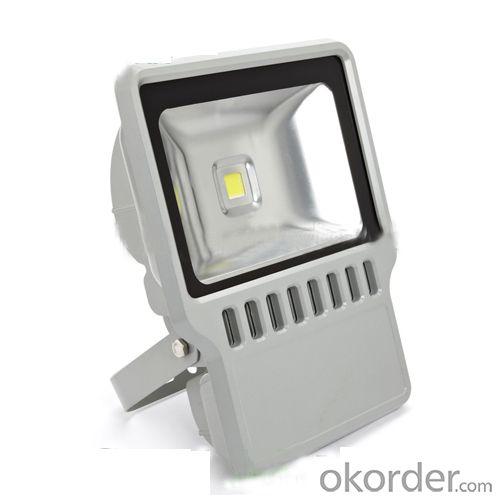

LED flood light
Hot sale bridgelux 45mil clip 100W LED flood light
Product Features
1.LED flood light can save 70% energy compared with traditional halogen
2. Ultra-Bright surface mount LED’s available in White, Warm white and Custom Colors Available Upon Request.
3. High heat-sink efficiency: scientific design to help heat sink.
4. Easy installation with no ballast & starter needed;
5. No RF interference, No IR/UV radiation, no mercury pollution
6. CE Certificate &ROHS
Product Specifications
Power parameters
Power | 100W |
Input Voltage/Frequency | 85-265VAC / 50-60Hz |
Input Current(Typ) | 1.3A MAX |
Output Voltage | 30-36V |
Output Current | 3.1A |
Efficiency(Typ) | 86% |
Power Factor(Typ) | PF>95 |
Lighting parameters
LED Chips Quantity LED | 1 Pcs | |
System Consumption | 100W | |
LED Luminous Efficiency | 80-100Lm /W | |
Color Temperature | 2700K~7000K | |
Lamp’s Initial Luminous Efficiency | ≥70Lm /W | |
Lumen Maintenance | 70%(50000Hrs) | |
Color Rendering Index | Ra≥70 | |
Viewing Angle | 120. | 60. |
Operating Temperature | -40°C~ +45°C | |
Storage Temperature | -40°C~ +70°C | |
IP Grade | IP65 | |
Life-span | 50000Hrs | |
Materials | Aluminium | |
Appliance Class | Class Ⅰ | |
The color of the lamp shell | Black/Silver | |
Power line | 1mm2The three core | |
Packaging & Shipping
The size of the radiator package size | 185*395*470mm |
The size of the package size | 395*415*490mm |
Qty | 2 PC |
The weight of the radiator after packing | 20.25Kg |
Net weight | 9.20Kg |
