Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:20 unit/month

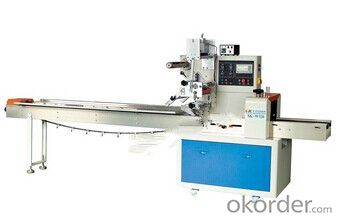

Flowpack Packing Machine (SK-W450)
Features:
1. Dual frequency conversion control. Bag length can be set and cut in one step saving time and film
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software easy for function adjusting and technical upgrade.
Optional Function:
1. Air flushing system
2. Air exhaust system
3. Nitrogen gas flushing
4. Hole punch device
5. Link bag device
6. Gusset bag
7. Coder printer
SPECIFICATION
Model | SK-W450 |
Packing Rate | 40-230bag/min |
Bag Length | 130-450mm |
Bag Width | 50-180mm |
Product Height | Max 70mm |
Film width | Max 320mm |
Packing material | OPP.PE.PVC.OPP/CPP.PT/PE.KOP/CPP.ALU-FOIL |
Dimensions | (L)4020x(W)820x(H)1450mm |
Power | 220V,50/60HZ,2.6KW |
Machine Weight | 900kg |
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
Up Paper Horizontal Pillow Bag Packaging Machine (SK-W250)
Model | SK-W250B | SK-W250D | SK-W250S |
Packing Speed | 40-230bags/min | ||
Bag Length | 65-190mm | 90-210mm | 45-100mm |
Bag Width | 30-110mm | 30-80mm | |
Product Height | Max 40mm | Max 55mm | Max 35mm |
Film roll diameter | Max 250mm | ||
Packing Material | OPP.PE.PVC.OPP/CPP.PT/PE.KOP/CPP.ALU-FOIL | ||
Dimensions | (L)3770x(W)670x(H)1450mm | ||
Power | 220V,50/60HZ,2.4KW | ||
Machine Weight | 400kg | ||
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
Down Paper Horizontal Pillow Bag Packing Machine（SK-WX250）
Model | SK-WX250 |
Packing Speed | 40-230bag/min |
Bag Length | 69-190 or 120-280mm |
Bag Width | 30-110mm |
Product Height | Max 40mm |
Film Width | 250mm |
Packing Material | OPP.PE.PVC.OPP/CPP.PT/PE.KOP/CPP.ALU-FOIL |
Dimensions | (L)3920x(W)670x(H)1320mm |
Power | 220V,50/60HZ,2.6KW |
Machine Weight | 550kg |
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
