Loading Port:Qingdao
Payment Terms:TT or LC
Min Order Qty:20 m³
Supply Capability:7500 m³/month
Calcium Silicate Pipe:
It is a microporous structure inorganic hard ultra-light insulation material which is made of inorganic silicon and calcium as materials and treated by special techniques such as high temperature and high pressure hydrothermal reaction. It can maintain high temperature resistance at 650 °C to cope with temperature changes. The stability is long. The ultra-low chloride ion content has a good protection for the pipeline, and the pre-formed anti-deformation greatly enhances the service life.
Product application：
Our calcium silicate pipe are widely used in industries like heat supply network of city construction, metallurgy, petroleum, chemical, electronics, machinery and glass.
Equipment and pipeline facilities for petroleum refining, chemical, hydropower, nuclear power, thermal power, urban power grids
Advantages：
1.Good durability, can bear high temperature within the limit of continuous heat load.
2.Non-deformation within the temperature range.
3.Low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
4.Light weight, high strength. It is the highest in these hard thermal insulation products.
5.Better durability, use for a long time without powder.
6.Construction with ordinary carpenter applicability, tools can be optional cut products.
7.Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
8.Fear water, but after drying also can be used.
| Calcium Silicate Pipe Size | |||
| Temperature | Size | ||
| ID(Inch) | ID(MM) | Thickness(MM) | |
| 650 or 1050 | 0.5-72 | 23-1836 | 25-100 |
| Other specifications can be customized according to customer requirements | |||
| Calcium silicate pipe index | ||||||
| Items | Unit | KRS-E | KRS-F | KRS-G | KRS-H | |
| Density | Kg/m3 | 220±10% | 220±10% | 250±10% | 850±10% | |
| Pressure Strength | Mpa | ≥0.6 | ≥0.62 | ≥0.72 | ≥17 | |
| Flexural Strength | Mpa | ≥0.35 | ≥0.38 | ≥0.41 | ≥8 | |
| Thermal Conductivity | 100℃ | W/(M.K) | ≤0.055 | ≤0.053 | ≤0.059 | ≤0.095 |
| 200℃ | ≤0.067 | ≤0.064 | ≤0.068 | ≤0.12 | ||
| 400℃ | ≤0.078 | ≤0.072 | ≤0.079 | ≤0.14 | ||
| 800℃ | // | ≤0.171 | ≤0.193 | ≤0.25 | ||
| Temp.Limit | ℃ | 650 | 1050 | 1050 | 1000 | |
| Linear Shrinkage | % | ≤2 | ≤2 | ≤2 | ≤2 | |

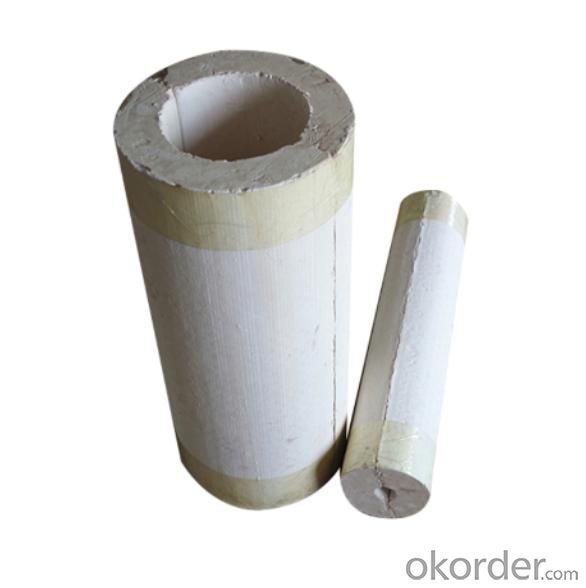

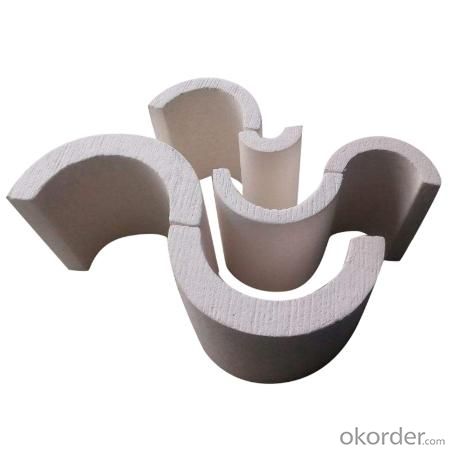

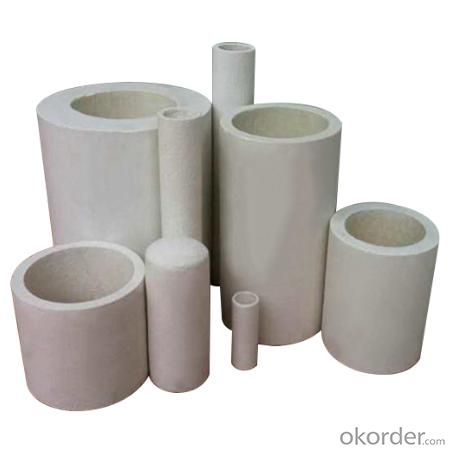

Products Pics：
FAQ：
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q: What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
