Loading Port:Shanghai Port
Payment Terms:TT or LC
Min Order Qty:1000pcs pc
Supply Capability:1000000pcs/month pc/month
Packaging & Delivery of the LED Lighting-20W
Packaging Detail: Paper carton
Delivery Detail: 7-15days
Specifications of the LED Lighting-20W
1. SMD- Samsung 5630 chip
2. CE&RoHS,EMC,SAA approved
3. 3 years warranty
4,6 inch for 15W 20W 30W
Product Attribute of the LED Lighting-20W
Item No. | 7W | 10W | 12W | 15W | LDI-06-20W | |
Product specifications | A | 210mm | 210mm | 210mm | 210mm | 210mm |
B | 315mm | 315mm | 315mm | 315mm | 315mm | |
C | 80mm | 80mm | 80mm | 80mm | 80mm | |
Material | High quality die-casting aluminum alloy | |||||
Cutout size | 175~205mm | |||||
Power | 7W | 10W | 12W | 15W | 20W | |
Luminous flux | 560LM | 800LM | 960LM | 1200LM | 1900LM | |
Light source | LED | |||||
Light degradation rate | 25000h≤30% | |||||
Color rendering index | Ra>83 | |||||
Power factor | PF≥0.93 | |||||
Beam angle | >90° | |||||
Rated life | 50000h | |||||
Color temperature | 2500K-7000K | |||||
Working temperature | -20~+40°C | |||||
Input wattage | AC85-260V | |||||
IP code | IP22 | |||||
Dimmable | Yes | |||||
Emergency function | Yes | |||||
Brand | OBALS&Customized | |||||
Warranty | 3 years | |||||
Certificate | CE, ROHS,LVD, SAA, EMC, C-tick Compliance | |||||
Application | office, supermarket, hotel, factory, indoor, etc. | |||||
Finishing color | white, silver, black or customized | |||||
Inside packing size | 217 x85 x330mm | |||||
Outside packing size | 450 x 355 x 345mm | |||||
Pieces per carton | 8pcs/ctn | |||||

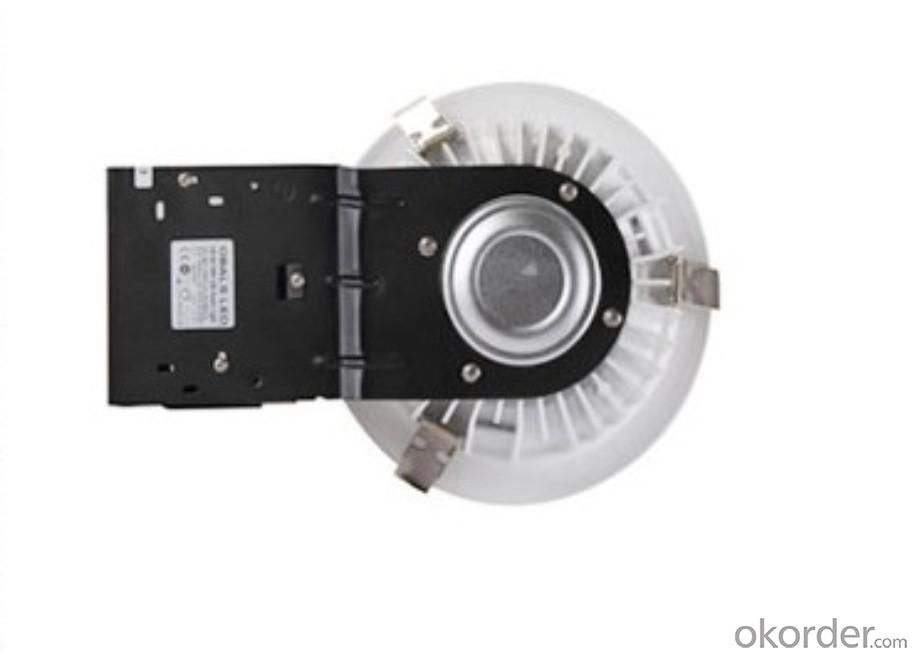

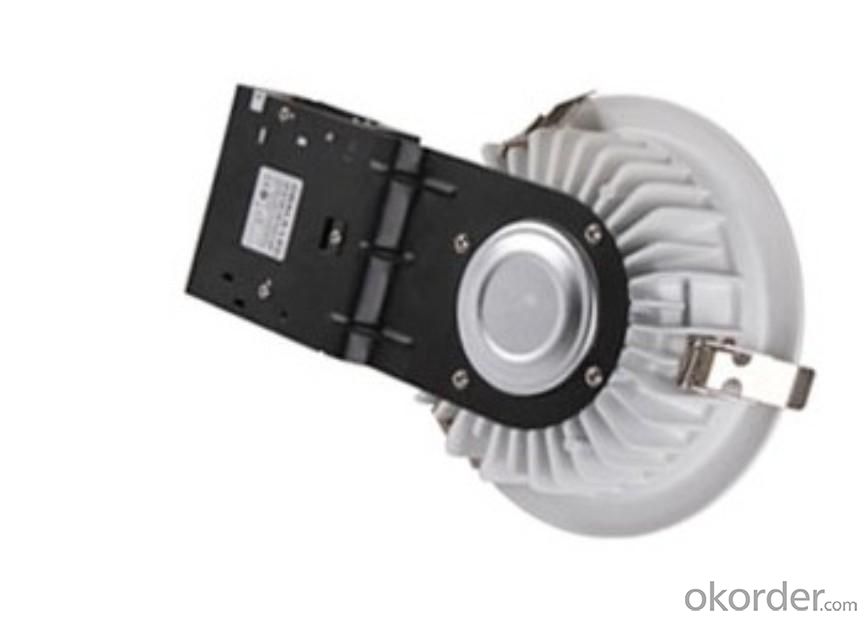

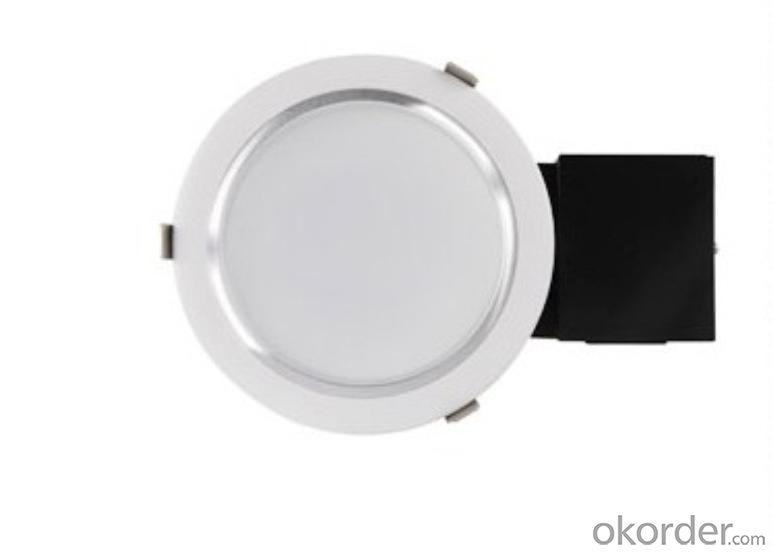

The details of the LED Lighting-20W
The applications of the LED Lighting-20W
The test machine of the LED Lighting-20W
