Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
1.Supply Concrete Batching Plant.
2.Certificate for China Compulsory Product Certification
3.GB/T19001-2000
About our company:
1. More than 20 years experience for concrete mixing plant
2. Supply full series of concrete mixing plant from 25m3/h to 240m3/h, mobile conrete mixing plant from 25m3/h to 60m3/h
3. China top10 concrete plant factory, with CE, ISO,Gost certificate
4. Products market covering more than 30 countries
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite
6. Response to customer requirement 24 hours, Provide full using life technical support

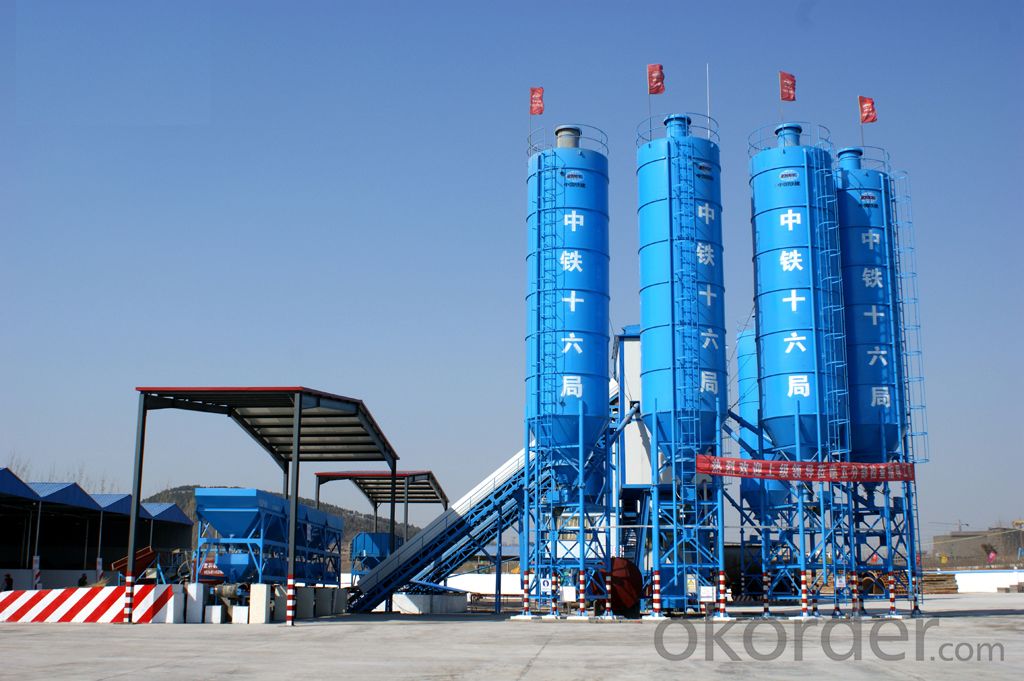

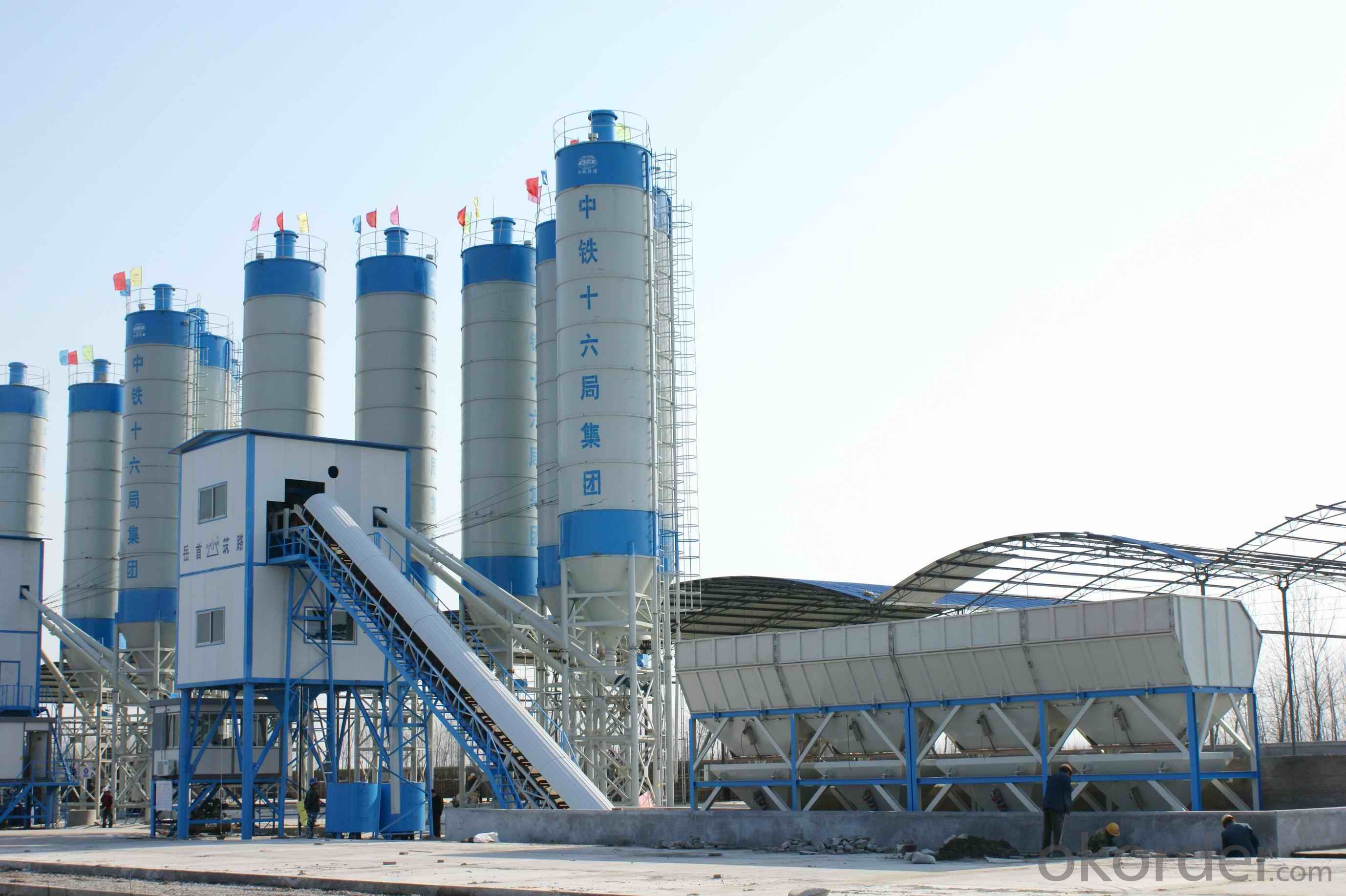

HZS50 concrete mixing plant specification
1 | Type | Concrete mixing plant HZS60 | |||||||
2 | Theoretical Productivity | 50m3/h | |||||||
3 | Main tower structure | Section steel, outer package (optional) | |||||||
4 | Discharge height | 3.8m | |||||||
5 | Total power | About 75kw (not include screw conveyor) | |||||||
6 | Total weight | About 34t(not include cement silo and screw conveyor) | |||||||
7 | Floor space | 23m×20m | |||||||
8 | Mixing system | Main machine | Power | Charging capacity | Discharging capacity | ||||
JS1000 | 18.5kw | 1600L | 1000L | ||||||
9 | Aggregate weighing system | Bin capacity | Weighing hopper capacity | Electric power of Drum | Measuring accuracy | ||||
7m3×3 | 800L | 5.5kw | ±2% | ||||||
10 | Hosting system | Type | Belt width | Power motor | |||||
Belt elevator | 650 | 15 kw | |||||||
11 | Cement weighing system | Weighing hopper volume | Weighing range | Measuring accuracy | |||||
480L | 0-480 kg | ≤±1% | |||||||
12 | Water weighing system | Water weighing scale volume | Power of water pump motor | Measuring accuracy | |||||
400L | 3 kw | ≤±1% | |||||||
13 | Liquid admixtures weighing system | Admixture weighing scale volume | Admixture box volume | Power of water pump motor | Measuring accuracy | ||||
40L | 2m3 | 0.75kw | ≤±1% | ||||||
14 | Gas path system | Air compressor power:11kw | |||||||
15 | Screw conveyor | Type | 219 | 168 | |||||
Conveyor capacity | 45t/h | 25t/h | |||||||
Power | 7.5 kw | 7.5 kw | |||||||
16 | Cement silo | 50t,80t,100t,150t,200t (optional) | |||||||
17 | Control system | 6m2 Control room |
